INTEL Part #/MPN: SSDSC2BA200G3T
DiscTech Item #: INT-SSDSC2BA200G3T-BN-OE-DEL
- Brand New
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Capacity: 200GB
Speed: Solid State
Interface Types: SATA
Form Factor: 2.5" x 7mm Fits All laptops
Electrical Interface: SATA 600 - 6Gbps
SSD Type: MLC

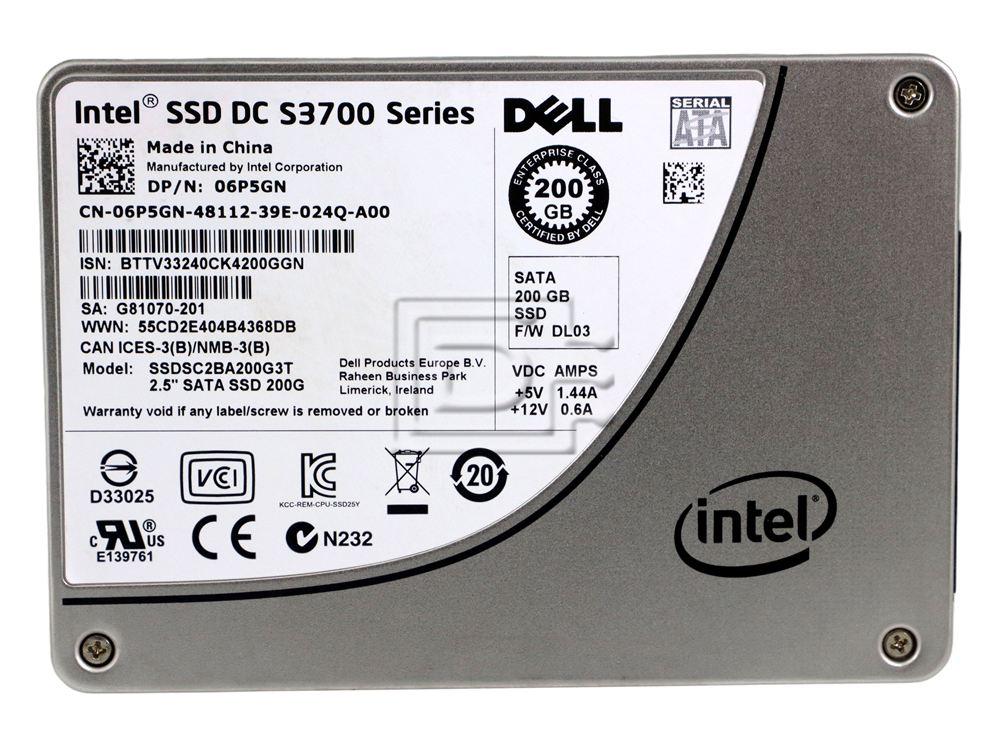

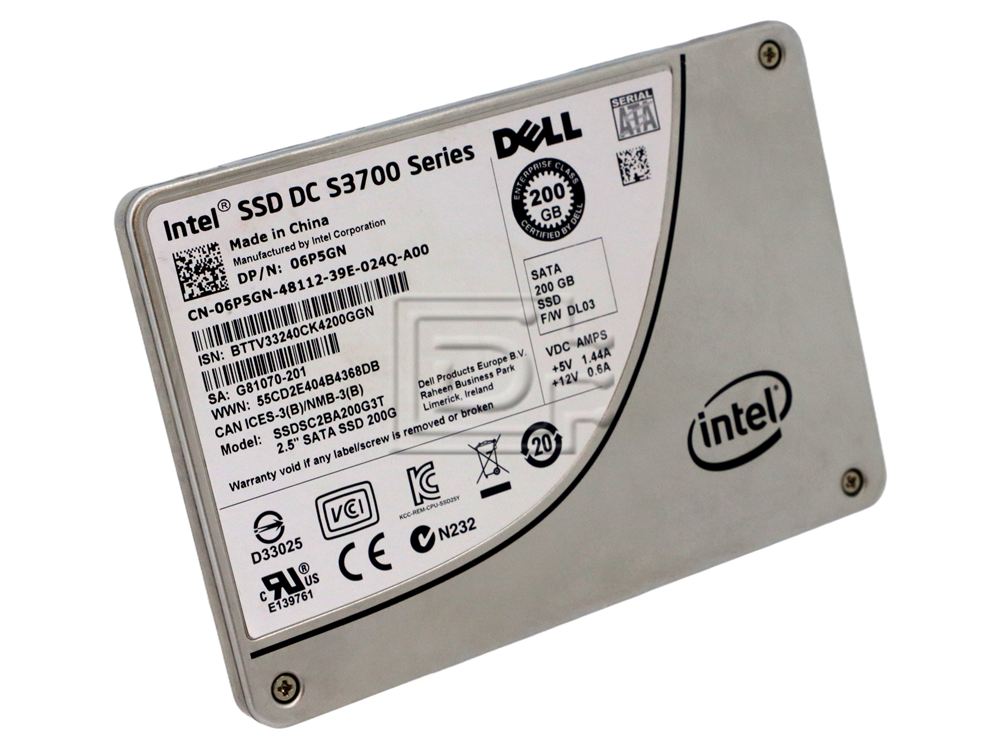

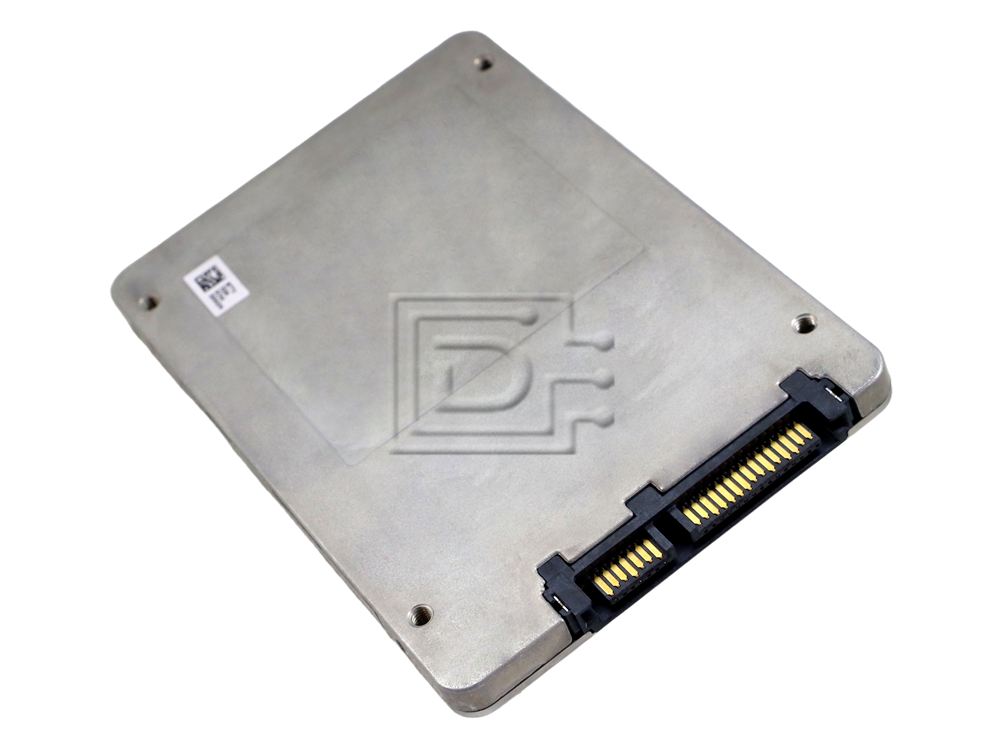

Intel SSDSC2BA200G3T / 6P5GN 200GB 2.5in 6Gbps DC S3700 Series MLC SATA SSD - Brand New OEM
Intel SSDSC2BA200G3T / 6P5GN 200GB 2.5" 6.0 Gbps DC S3700 Series Multi-Level Cell Serial Advanced Technology Attachment Solid State Disk Drive - Brand New OEM
Alt MPN: 6P5GN, 06P5GN
Intel® Solid-State Drive DC S3700 Series Non-Volatile Memory Storage Solutions
Consistently Amazing
Premier Performance, Protection, and Optimization for the Data Center
The Intel® Solid-State Drive DC S3700 Series offers the next generation of data center SSDs combining fast consistent performance with high endurance, and strong data protection.
Fast and Consistent Performance
Deliver data at a rapid pace, with consistently low latencies and tight IOPS distribution.
The Intel® Solid-State Drive DC S3700 Series delivers superior performance with 4KB random read performance of up to 75,000 IOPS and 4KB random write performance of up to 36,000 IOPS . With a 10% input/output operations per second (IOPS) distribution and max latencies of <500μs for 99.9% of the time, the DC S3700 Series will ensure quick and consistent command response times. All this performance delivered with low active power consumption (less than or equal to 6 watts) means this Intel SSD will help reduce your overall energy costs—making it an excellent value for data center storage applications upgrades!
Stress-free Data Performance
Protect your data center applications with multiple security checkpoints providing protection against data loss and corruption.
The Intel® Solid-State Drive DC S3700 Series combines the following features to provide an SSD you can count on.
Full End-to-End Data Protection. Protects your data from the time it enters the drive to the time it leaves. The DC S3700 uses an advance error correction scheme that ensures data integrity by protecting against possible data corruption in the NAND, SRAM, and DRAM memory. The DC S3700 also protects the data in transit through several techniques such as parity checks, Cyclic Redundancy Checks (CRC) and LBA tag validation. Once an error is detected, an immediate attempt will be made to correct it, and any uncorrectable error will be reported to the host. To further improve data assurance, the Intel SSD DC S3700 provides an array of surplus flash memory that caches data to minimize potential data loss.
Advanced Encryption Standard (AES) Capable. Protects your data from external threats and internal system issues with 256-bit encryption technology, giving you the peace of mind that your company’s data is secure and safe.
Enhanced Power-Loss Data Protection. Reduces potential data loss by detecting and protecting data from an unexpected system power loss. The drive saves all cached data in the process of being written before shutting down, thereby minimizing potential data loss.
High Endurance Technology
Meet your most demanding needs with marathon-like write endurance.
Incorporating High Endurance Technology (HET), the Intel Solid-State Drive DC S3700 Series delivers single-level cell (SLC) solid-state drive like endurance in a multi-level cell (MLC) SSD package. By combining SSD NAND management techniques and NAND silicon enhancements, HET enables the DC S3700 Series 10 Drive Writes Per Day (DWPD) over a 5 year life. For the DC S3700 Series 800 GB, that’s equivalent to recording over 186 years of HD video over the life of the drive.
Product Spotlight
- Fast and Consistent Performance
- Full End to End Data Protection
- Enhanced Power-Loss Data Protection
- Latest 25 mm MLC NAND Flash Memory Technology
- Intel-Based Controller Technology
- 2.5” and 1.8” Form Factor
Compatibility:
Compatible with, but not limited to ...
- Intel Server System
- Intel Workstation System
- Intel Server Board
- Intel Workstation Board
- Intel Compute Module
SPECIFICATIONS | |
---|---|
Model Number | SSDSC2BA200G3T |
Alt Model Number | 6P5GN |
Status | Launched |
Launch Date | Q4,12 |
Sequential Read | 500 MB/s |
Sequential Write | 365 MB/s |
Random Read (100% Span) | 75000 IOPS |
Random Write (100% Span) | 32000 IOPS |
Latency - Read | 50 µs |
Latency - Write | 65 µs |
Power - Active | 4.4W |
Power - Idle | 650mW |
Vibration - Operating | 2.17 GRMS (5-700 Hz) |
Vibration - Non-Operating | 3.13 GRMS (5-800 Hz) |
Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
Operating Temperature Range | 0° C to 70° C |
Weight | 73.6 grams +/- 2 grams |
Endurance Rating (Lifetime Writes) | 10 drive writes per day |
Mean Time Between Failures (MTBF) | 2,000,000 Hours |
Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^17 bits read |
PACKAGE SPECIFICATIONS | |
Components | Intel NAND Flash Memory Multi-Level Cell (MLC) Technology |
Capacity | 200 GB |
Form Factor | 2.5" 7mm |
Interface | SATA 3.0 6Gb/s |
Lithography | 25 nm |
ADVANCED TECHNOLOGIES | |
Enhanced Power Loss Data Protection | Yes |
Hardware Encryption | AES 256 bit |
High Endurance Technology (HET) | Yes |
Temperature Monitoring and Logging | Yes |
End-to-End Data Protection | Yes |
Intel Rapid Start Technology | No |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 6P5GN 06P5GN
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
