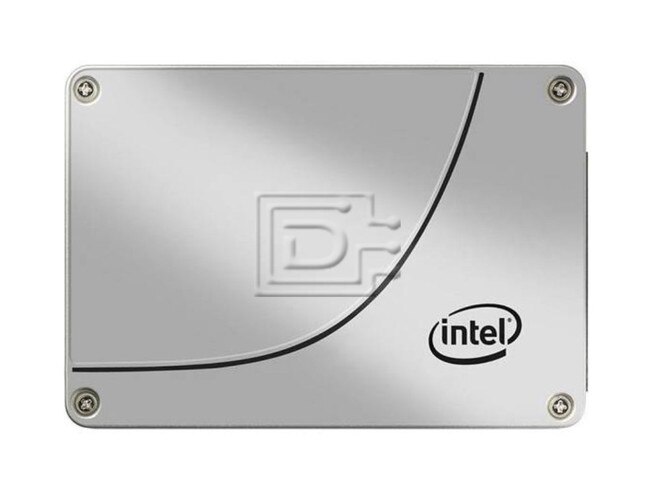

Intel SSDSC2BA200G401 200GB 2.5" MLC DC S3710 Series SED SATA SSD

INTEL SSDSC2BA200G401 SSDSC2BA200G4 SATA Solid State Drive image

INTEL Part #/MPN: SSDSC2BA200G401

DiscTech Item #: INT-SSDSC2BA200G401-BN-5Y

$399.00

Brand New
Condition Levels Explained
The product is brand new.
Warranty:5 Year Manufacturer
Product Warranties Explained
The product has a manufacturer warranty for the time period specified.
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$399.00

Enterprise Grade

Capacity: 200GB

Speed: Solid State

Interface Types: SATA

Form Factor: 2.5" x 7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 500 / 300

Average Seek Time: 55 µs / 66 µs

Electrical Interface: SATA 600 - 6Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use / MU

Intel SSDSC2BA200G401 / SSDSC2BA200G4 200GB 2.5in 6Gbps MLC Mixed Use 9-DWPD DC S3710 Series SED SATA / Serial ATA SSD - Brand New

Intel SSDSC2BA200G401 200GB 2.5" 6.0 Gb/s Multi-Level Cell Mixed Use 9 Drive Write Per Day Data Center S3710 Series Self-Encrypting Drive Serial Advanced Technology Attachment Solid State Disk Drive - Brand New

Intel Solid State Drive Data Center Family for SATA DC S3710 Series

Cost-Effective Performance and Reliability for the Data Center
Intel’s Solid State Drives deliver breakneck speed with unparalleled reliability and security directly to where you need it most.

Optimized Data Center Endurance
Demanding applications require highly reliable storage coupled with consistent performance. The Intel SSD DC Family for SATA offers a full range of endurance and performance levels designed to meet the needs of your data center workloads.

The Intel SSD DC S3710 Series with 10 full drives writes per day DWD is the perfect choice is the perfect choice for applications demanding high write performance such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large scale virtualization, and Video on Demand content delivery.

Stress-Free Data Protection
All the products in the Intel SSD DC Family for SATA protect data with full end-to-end protection, 256-bit encryption Advanced Encryption Standard (AES) technology, sophisticated error protection schemes, and enhanced power loss and thermal monitoring features>

High Reliability – Low Total Cost of Ownership
Intel SSDs are known industry wide for quality and reliability. The Intel SSD DC Family for SATA in engineered to reduce downtime as a result of storage-related failures and designed to meet an Annualized Failure Rate (AFR) of 0.44%. The Intel SSD DC Family for SATA significantly reduces Total Cost of Ownership (TCO). Held to the highest validation standards, the Intel SSD DC Family for SATA is analyzed in more than 5,000 unique tests

Power Efficent Performance
The Intel SSD DC Family for SATA accelerates data center performance with read-write throughput speeds up to 550/520 megabytes per second (MB/s) and 4K random read-write input/output operations per second (IOPs) up to 85,000/45,000. Applications benefit from 55 µs typical latency with max read latencies of 500 µs 99.9% of the time. Combining performance with low typical active power (less than 6.9 watts), the Intel SSD DC Family for SATA improves data center efficiency with superior quality of service, reduced energy cost, and is ideal for server or application upgrades.

Product Spotlight

Low Total Cost of Ownership
Proven Quality and Reliability
Optimized for Data Center Applications

Alt Model Number: SSDSC2BA200G4

Compatibility:

This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.

Intel SSD DC S3710 Series
Model/Part No.	SSDSC2BA200G401
Alt Model/Part No.	SSDSC2BA200G4
Capacity	200GB
Lithogratphy Type	20nm
Performance
Sequential Read (up to)	550 MB/s
Sequential Write (up to)	300 MB/s
Random Read (100% Span)	85000 IOPS
Random Write (100% Span)	43000 IOPS
Latency - Read	55 µs
Latency - Write	66 µs
Power - Active	4W
Power - Idle	0.6W
Reliability
Vibration - Operating	2.17 GRMS (5-700 Hz)
Vibration - Non-Operating	3.13 GRMS (5-800 Hz)
Shock (Operating and Non-Operating)	1000 G/0.5ms
Operating Temerature Range	0°C to 70°C
Endurance Rating (Lifetime Writes)	3.6 PBW
Mean Time Between Failure (MTBF)	2,000,000hrs
Uncortectable Bit Error Rate (UBER)	10^17
Package Specifications
Weight	82 grams
Form Factor	2.5" 7mm
Interface	SATA 3.0 6Gb/S
Advanced Technologies
Enhanced Power Loss Data Protection	Yes
Hardware Encryption	AES 256 bit
High Endurance Technology (HET)	Yes
Temperature Moitoring and Logging	Yes
End-to-End Data Protection	Yes
