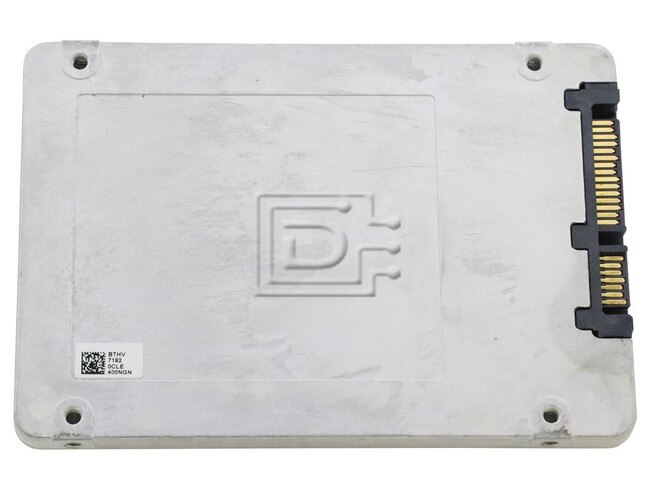

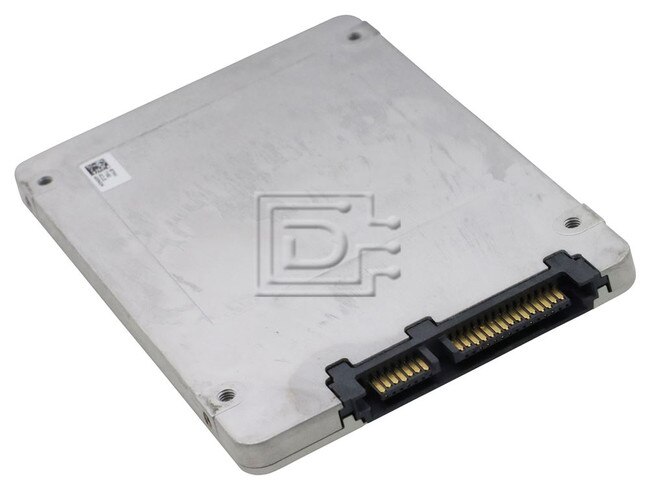

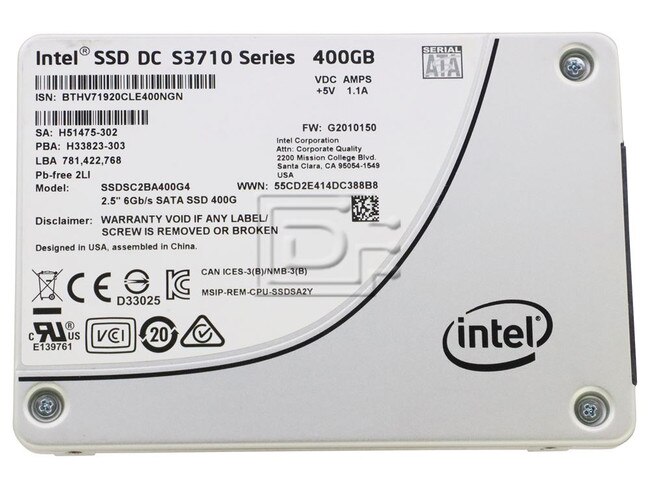

Intel SSDSC2BA400G401 400GB SATA Solid State Drive

INTEL Part #/MPN: SSDSC2BA400G401

DiscTech Item #: INT-SSDSC2BA400G401-C9-OE


$175.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$175.00

Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 550 / 470

Average Seek Time: 55 µs / 66 µs

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

Intel SSDSC2BA400G401 / SSDSC2BA400G4 400GB 2.5in 6Gbps MLC Mixed Use 11-DWPD DC S3710 Series SED SATA / Serial ATA SSD - Certified 95

Intel SSDSC2BA400G401 400GB 2.5" 6.0 Gb/s Multi-Level Cell Mixed Use 11 Drive Write Per Day Data Center S3710 Series Self-Encrypting Drive Serial Advanced Technology Attachment Solid State Disk Drive - Certified 95

Intel Solid State Drive Data Center Family for SATA DC S3710 Series

Cost-Effective Performance and Reliability for the Data Center
Intel’s Solid State Drives deliver breakneck speed with unparalleled reliability and security directly to where you need it most.

Optimized Data Center Endurance
Demanding applications require highly reliable storage coupled with consistent performance. The Intel SSD DC Family for SATA offers a full range of endurance and performance levels designed to meet the needs of your data center workloads.

The Intel SSD DC S3710 Series with 10 full drives writes per day DWD is the perfect choice is the perfect choice for applications demanding high write performance such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large scale virtualization, and Video on Demand content delivery.

Stress-Free Data Protection
All the products in the Intel SSD DC Family for SATA protect data with full end-to-end protection, 256-bit encryption Advanced Encryption Standard (AES) technology, sophisticated error protection schemes, and enhanced power loss and thermal monitoring features>

High Reliability – Low Total Cost of Ownership
Intel SSDs are known industry wide for quality and reliability. The Intel SSD DC Family for SATA in engineered to reduce downtime as a result of storage-related failures and designed to meet an Annualized Failure Rate (AFR) of 0.44%. The Intel SSD DC Family for SATA significantly reduces Total Cost of Ownership (TCO). Held to the highest validation standards, the Intel SSD DC Family for SATA is analyzed in more than 5,000 unique tests

Power Efficient Performance
The Intel SSD DC Family for SATA accelerates data center performance with read-write throughput speeds up to 550/520 megabytes per second (MB/s) and 4K random read-write input/output operations per second (IOPs) up to 85,000/45,000. Applications benefit from 55 µs typical latency with max read latencies of 500 µs 99.9% of the time. Combining performance with low typical active power (less than 6.9 watts), the Intel SSD DC Family for SATA improves data center efficiency with superior quality of service, reduced energy cost, and is ideal for server or application upgrades.

Product Spotlight

  • Low Total Cost of Ownership
  • Proven Quality and Reliability
  • Optimized for Data Center Applications


Alt Model Number: SSDSC2BA400G4




Compatibility:



This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.



Intel SSD DC S3710 Series
Model/Part No.SSDSC2BA200G401
Alt Model/Part No.SSDSC2BA400G4
Capacity400GB
Lithogratphy Type20nm
Performance
Sequential Read (up to)550 MB/s
Sequential Write (up to)470 MB/s
Random Read (100% Span)85000 IOPS
Random Write (100% Span)43000 IOPS
Latency - Read55 µs
Latency - Write66 µs
Power - Active5.4W
Power - Idle0.6W
Reliability
Vibration - Operating2.17 GRMS (5-700 Hz)
Vibration - Non-Operating3.13 GRMS (5-800 Hz)
Shock (Operating and Non-Operating)1000 G/0.5ms
Operating Temerature Range0°C to 70°C
Endurance Rating (Lifetime Writes)8.3 PBW
Mean Time Between Failure (MTBF)2,000,000hrs
Uncortectable Bit Error Rate (UBER)10^17
Package Specifications
Weight82 grams
Form Factor2.5" 7mm
InterfaceSATA 3.0 6Gb/S
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)Yes
Temperature Moitoring and LoggingYes
End-to-End Data ProtectionYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2BA400G4

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Certified 95

Condition Levels Explained

These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
