INTEL Part #/MPN: SSDSC2BA800G401
DiscTech Item #: INT-SSDSC2BA800G401-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 800GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 550 / 460
Average Seek Time: 55 µs / 66 µs
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use
Wattage/VA: 5.9W

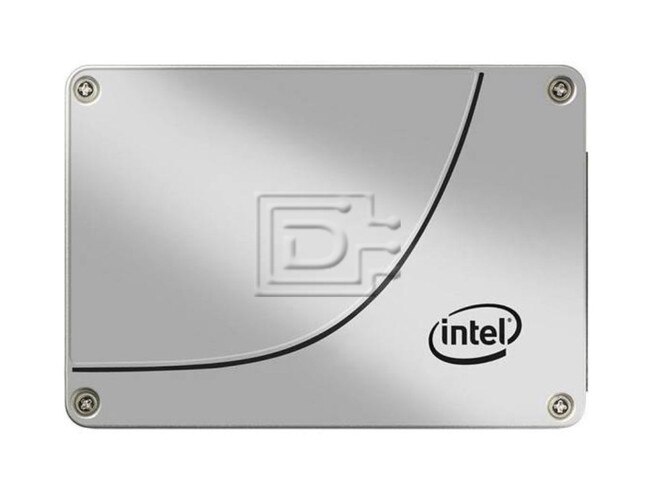

Intel SSDSC2BA800G401 / SSDSC2BA800G4 800GB 2.5in 6Gbps MLC Mixed Use 11-DWPD DC S3710 Series SED SATA / Serial ATA SSD - Brand New
Intel SSDSC2BA800G401 800GB 2.5" 6.0 Gb/s Multi-Level Cell Mixed Use 11 Drive Write Per Day Data Center S3710 Series Self-Encrypting Drive Serial Advanced Technology Attachment Solid State Disk Drive - Brand New
Intel Solid State Drive Data Center Family for SATA DC S3710 Series
Cost-Effective Performance and Reliability for the Data Center
Intel’s Solid State Drives deliver breakneck speed with unparalleled reliability and security directly to where you need it most.
Optimized Data Center Endurance
Demanding applications require highly reliable storage coupled with consistent performance. The Intel SSD DC Family for SATA offers a full range of endurance and performance levels designed to meet the needs of your data center workloads.
The Intel SSD DC S3710 Series with 10 full drives writes per day DWD is the perfect choice is the perfect choice for applications demanding high write performance such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large scale virtualization, and Video on Demand content delivery.
Stress-Free Data Protection
All the products in the Intel SSD DC Family for SATA protect data with full end-to-end protection, 256-bit encryption Advanced Encryption Standard (AES) technology, sophisticated error protection schemes, and enhanced power loss and thermal monitoring features>
High Reliability – Low Total Cost of Ownership
Intel SSDs are known industry wide for quality and reliability. The Intel SSD DC Family for SATA in engineered to reduce downtime as a result of storage-related failures and designed to meet an Annualized Failure Rate (AFR) of 0.44%. The Intel SSD DC Family for SATA significantly reduces Total Cost of Ownership (TCO). Held to the highest validation standards, the Intel SSD DC Family for SATA is analyzed in more than 5,000 unique tests
Power Efficient Performance
The Intel SSD DC Family for SATA accelerates data center performance with read-write throughput speeds up to 550/520 megabytes per second (MB/s) and 4K random read-write input/output operations per second (IOPs) up to 85,000/45,000. Applications benefit from 55 µs typical latency with max read latencies of 500 µs 99.9% of the time. Combining performance with low typical active power (less than 6.9 watts), the Intel SSD DC Family for SATA improves data center efficiency with superior quality of service, reduced energy cost, and is ideal for server or application upgrades.
Product Spotlight
- Low Total Cost of Ownership
- Proven Quality and Reliability
- Optimized for Data Center Applications
Alternate Model Number: SSDSC2BA800G4
Compatibility:
This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.| Intel SSD DC S3710 Series | |
|---|---|
| Model/Part No. | SSDSC2BA800G401 |
| Alt Model/Part No. | SSDSC2BA800G4 |
| Capacity | 800GB |
| Lithogratphy Type | 20nm |
| Performance | |
| Sequential Read (up to) | 550 MB/s |
| Sequential Write (up to) | 460 MB/s |
| Random Read (100% Span) | 85000 IOPS |
| Random Write (100% Span) | 39000 IOPS |
| Latency - Read | 55 µs |
| Latency - Write | 66 µs |
| Power - Active | 5.9W |
| Power - Idle | 0.6W |
| Reliability | |
| Vibration - Operating | 2.17 GRMS (5-700 Hz) |
| Vibration - Non-Operating | 3.13 GRMS (5-800 Hz) |
| Shock (Operating and Non-Operating) | 1000 G/0.5ms |
| Operating Temerature Range | 0°C to 70°C |
| Endurance Rating (Lifetime Writes) | 16.9 PBW |
| Mean Time Between Failure (MTBF) | 2,000,000hrs |
| Uncortectable Bit Error Rate (UBER) | 10^17 |
| Package Specifications | |
| Weight | 88 grams |
| Form Factor | 2.5" 7mm |
| Interface | SATA 3.0 6Gb/S |
| Advanced Technologies | |
| Enhanced Power Loss Data Protection | Yes |
| Hardware Encryption | AES 256 bit |
| High Endurance Technology (HET) | Yes |
| Temperature Moitoring and Logging | Yes |
| End-to-End Data Protection | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BA800G4
