Intel SSDSC2BB160G401 160GB SATA S3500 MLC SSD
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:69Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 6 Month DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 160GB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Consumer / Value |
| Electrical Interface: | SATA 600 - 6Gbps |
Description

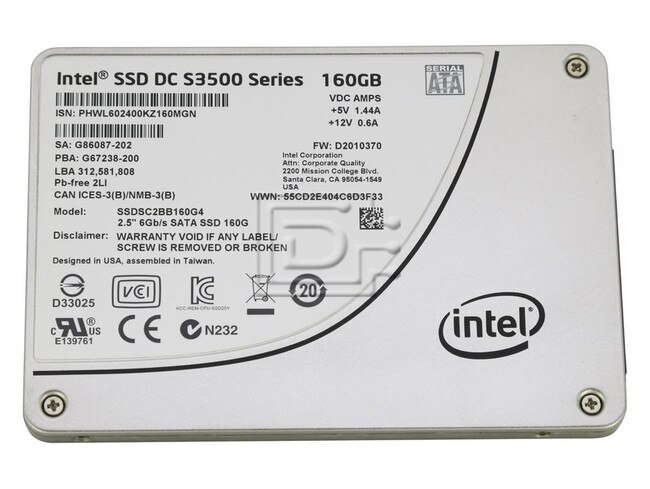

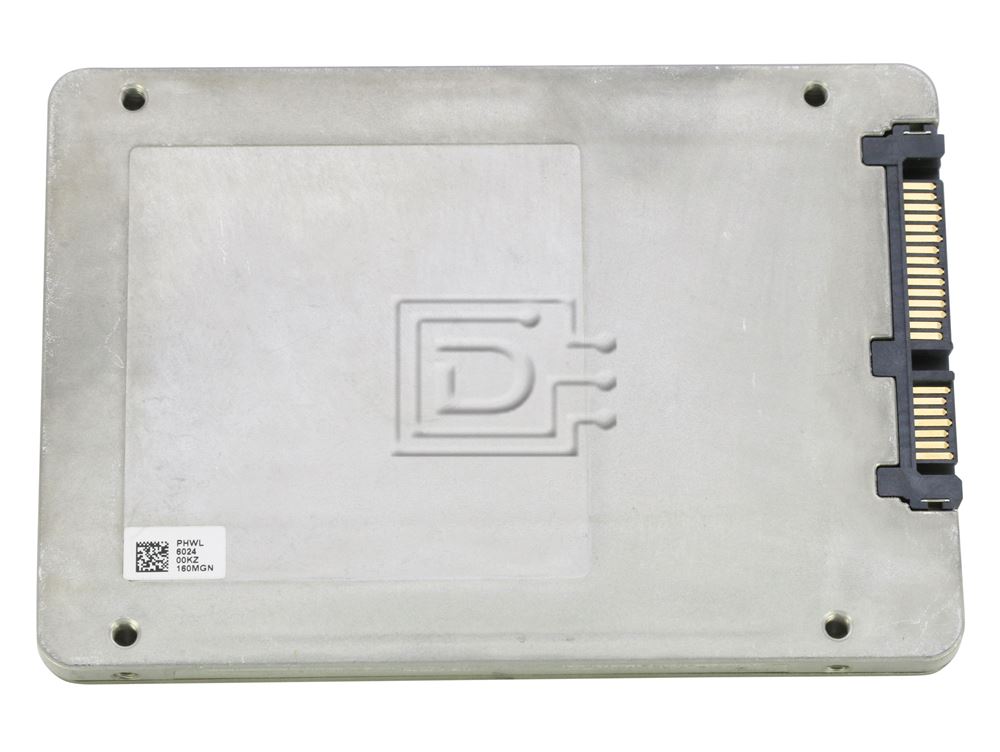

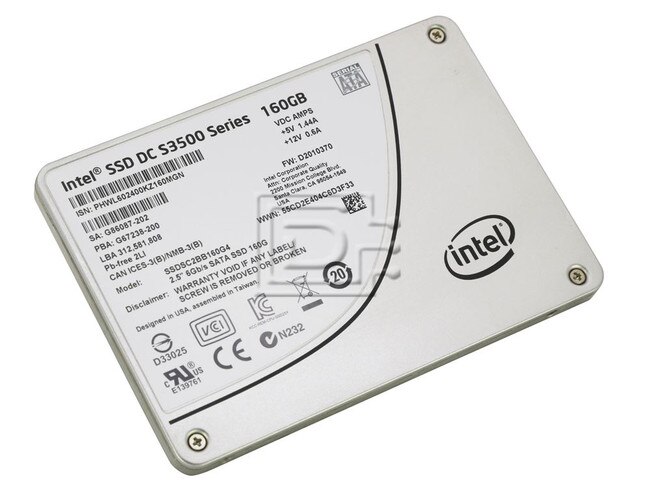

Intel SSDSC2BB160G401 / SSDSC2BB160G4 160GB 2.5" 6Gbps DC S3500 SATA MLC SSD - Refurbished
Intel SSDSC2BB160G401 160GB 2.5" 6.0 Gbps Data Center S3500 Serial Advanced Technology Attachment Multi-Level Cell Solid State Disk Drive - Brand New
Intel Model Number: SSDSC2BB160G4
The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.
Key features and benefits of this drive include an Intel® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
Specifications
| Intel Model Number | SSDSC2BB160G4 |
|---|---|
| Ordering Part Number | SSDSC2BB160G401 |
| Capacity | 160GB |
| Performance | |
| Interface Type | SATA |
| Sequential Read | 475 MB/s |
| Sequential Write | 175 MB/s |
| Random Read (8GB Span) | 75000 IOPS |
| Random Write (8GB Span) | 7500 IOPS |
| Latency - Read | 50 µs |
| Latency - Write | 65 µs |
| Power - Active | 2.5W |
| Power - Idle | 0.9W |
| Vibration - Operating | 2.17 Grms |
| Vibration - Non-Operating | 3.13 Grms |
| Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 2,000,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^16 bits read |
| Physical | |
| Height (in/mm) | 0.276/7.0 |
| Weight (lb/g) | 0.159/72.0 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BB160G4
Weight: 1 lb
Warranty: 6 Month DiscTech
Condition
Refurbished
Warranty
6 Month DiscTech Warranty
