INTEL Part #/MPN: SSDSC2BB300G401
DiscTech Item #: INT-SSDSC2BB300G401-C9-OE
- Certified 95Condition Levels Explained
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:27Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 300GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

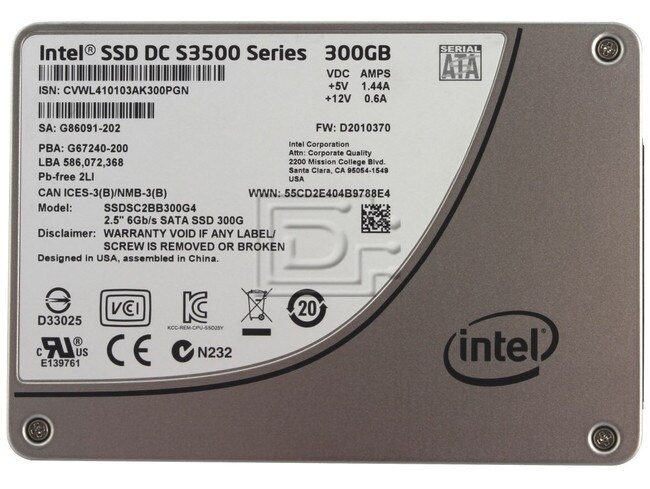

Intel DC S3500 SSDSC2BB300G401 / SSDSC2BB300G4 300GB 2.5" 6Gbps SATA MLC SSD - Certified 95
Intel DC S3500 Series SSDSC2BB300G401 300GB 2.5inch 6.0Gbps SATA MLC SSD
Intel Model Number: SSDSC2BB300G4
The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.
Key features and benefits of this drive include an Intel® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
| Intel Model Number | SSDSC2BB300G4 |
|---|---|
| Ordering Part Number | SSDSC2BB300G401 |
| Capacity | 300GB |
| Performance | |
| Interface Type | SATA |
| Sequential Read | 500 MB/s |
| Sequential Write | 315 MB/s |
| Random Read (8GB Span) | 75000 IOPS |
| Random Write (8GB Span) | 9000 IOPS |
| Latency - Read | 50 µs |
| Latency - Write | 65 µs |
| Power - Active | 3.5W |
| Power - Idle | 0.9W |
| Vibration - Operating | 2.17 Grms |
| Vibration - Non-Operating | 3.13 Grms |
| Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 1,200,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^16 bits read |
| Physical | |
| Height (in/mm) | 0.276/7.0 |
| Weight (lb/g) | 0.159/72.0 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BB300G4
Weight: 0.25 lb
Warranty: 1 Year DiscTech
Certified 95
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
