INTEL Part #/MPN: SSDSC2BW120A401
DiscTech Item #: INT-SSDSC2BW120A401-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 120GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Sustained Throughput: 540
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC

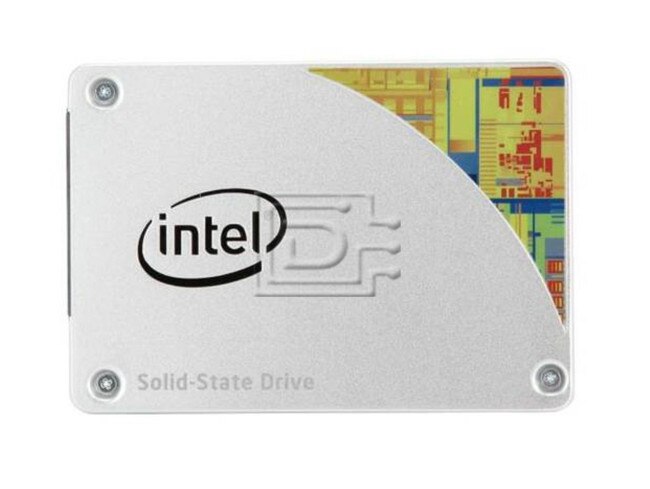

Intel SSDSC2BW120A401 / SSDSC2BW120A4 120GB 2.5in 6Gbps 530 Series SATA MLC SSD - Brand New
Intel SSDSC2BW120A401 120GB 2.5" 6.0 Gbps 530 Series Serial Advanced Technology Attachment Multi-Level Cell Solid State Disk Drive - Brand New
Intel Model Number: SSDSC2BW120A4
With Intel® SSD 530 Series, your computer will blaze through the most demanding consumer client applications and will easily handle your multi-tasking needs. With no moving parts, the Intel SSD 530 Series reduces your risk of data loss caused by shock or vibration during operation. The Intel SSD 530 Series is specially targeted toward consumer Ultrabook™ and notebooks, All-in-One (AIO) desktops, next unit of computing (NUC), and embedded designs. In addition to the strong performance gains, Intel SSD 530 Series introduces new low power modes with cell phone-like standby battery life. The Intel SSD 530 Series product family paves the way for thin and light computing devices by introducing the latest M.2 form factor. M.2 form factor shrinks the total storage area enormously vs. traditional 2.5-inch form factor storage devices. You will have the comfort of knowing your data is benefitting from advanced security features, world-class performance, and Intel quality and reliability using the latest 20nm Intel® NAND technology.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
Intel Model Number | SSDSC2BW120A4 |
---|---|
Ordering Part Number | SSDSC2BW120A401 |
Capacity | 120GB |
Performance | |
Interface Type | SATA |
Sequential Read | 540 MB/s |
Sequential Write | 480 MB/s |
Random Read (8GB Span) | 24000 IOPS |
Random Write (8GB Span) | 80000 IOPS |
Latency - Read | 80 µs |
Latency - Write | 85 µs |
Power - Active | 140mW |
Power - Idle | 55mW |
Vibration - Operating | 2.17 Grms |
Vibration - Non-Operating | 3.13 Grms |
Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
Operating Temperature Range | 0°C to 70°C |
Mean Time Between Failures (MTBF) | 1,200,000 Hours |
Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^16 bits read |
Physical | |
Height (in/mm) | 0.276/7.0 |
Weight (lb/g) | 0.172/78.0 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BW120A4
Weight: 1 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
