INTEL Part #/MPN: SSDSC2BX400G401
DiscTech Item #: INT-SSDSC2BX400G401-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 400GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 500/460
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

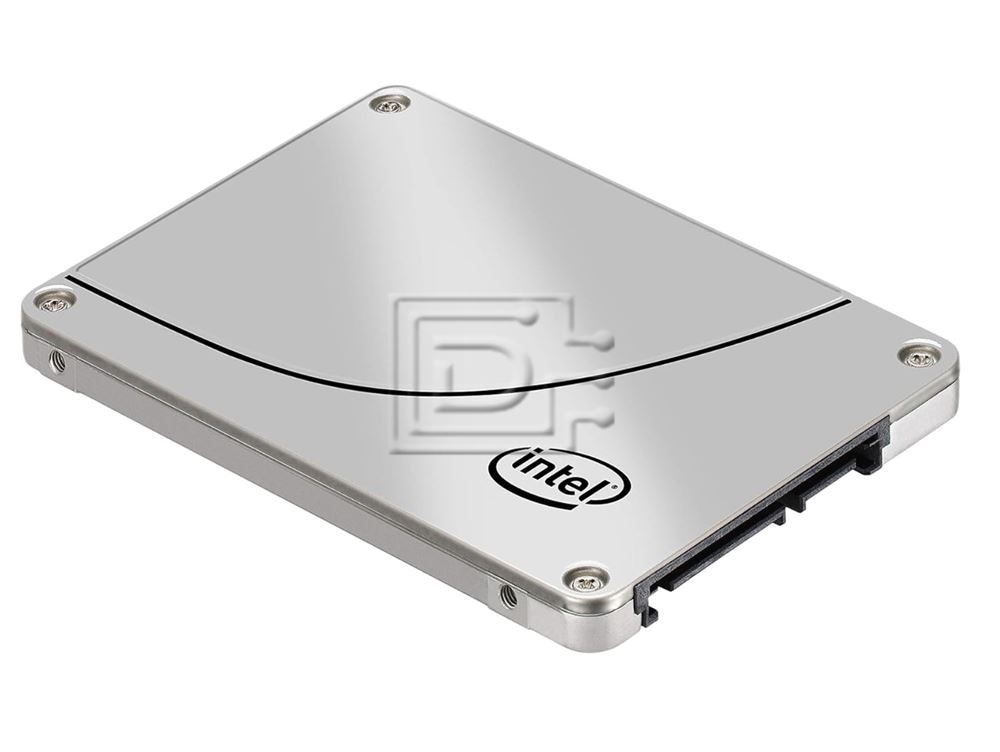

Intel DC S3610 SSDSC2BX400G401 400GB 2.5-Inch 6Gbps MLC SATA Solid State Drive - Brand New
Intel Data Center / DC S3610 SSDSC2BX400G401 400GB 2.5" 7mm 6.0 Gb/s Multi-Level Cell / MLC Mixed Used 3-DWPD / Drive Writes Per Day Serial ATA / SATA Solid State Drive / SSD
The Intel SSD DC S3610 Series is designed to meet the needs of typical data center workloads with up to 3 full drives writes per day, delivering higher endurance.
The Intel SSD DC S3610 Series is the perfect choice for applications demanding a balance of read and write performance such as operational and analytical databases, virtualization, e-commerce and cloud infrastructures.
The Intel SSD DC S3610 Series protects data with full end-to-end data protection, 256-bit encryption Advanced Encryption Standard (AES) technology, sophisticated error protection schemes, and enhanced power loss and thermal monitoring features. The Intel SSD DC S3610 Series employs multiple safeguard mechanisms delivering peace of mind that data is safe, secure and available when needed.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
Drive Model | Intel® SSD DC S3610 Series |
---|---|
Essentials | |
Product Collection | Intel® SSD DC S3610 Series |
Code Name | Products formerly Haleyville |
Capacity | 400 GB |
Status | Launched |
Launch Date | Q1'15 |
Lithography Type | 20 nm |
Performance | |
Sequential Read (up to) | 550 MB/s |
Sequential Write (up to) | 400 MB/s |
Random Read (100% Span) | 84000 IOPS |
Random Write (100% Span) | 25000 IOPS |
Latency - Read | 55 µs |
Latency - Write | 66 µs |
Power - Active | 4.3 W |
Power - Idle | 0.6 W |
Reliability | |
Vibration - Operating | 2.17 GRMS (5-700Hz) |
Vibration - Operating | 3.13 GRMS (5-800Hz) |
Shock (Operating and Non-Operating) | 1,000 G/0.5 ms |
Operating Temperature Range | 0°C to 70°C |
Mean Time Between Failures (MTBF) | 2000000 |
Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^17 bits read |
Package Specifications | |
Weight | 82 grams +-2 grams |
Form Factor | 2.5" 7mm |
Interface | SATA 3.0 6Gb/S |
Advanced Technologies | |
Enhanced Power Loss Data Protection | Yes |
Hardware Encryption | AES 256 bit |
High Endurance Technology (HET) | Yes |
Temperature Monitoring and Logging | Yes |
End-to-End Data Protection | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
