Intel SSDSC2BX800G4R 800GB SATA Hard Drive

INTEL Part #/MPN: SSDSC2BX800G4R

DiscTech Item #: INT-SSDSC2BX800G4R-C9-OE-DEL


$249.00
$249.00

Capacity: 800GB

Speed: Solid State

Interface Types: SATA

Form Factor: 2.5" x 7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 550 / 520

Average Seek Time: 55 µs / 66 µs

Electrical Interface: SATA 600 - 6Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use / MU

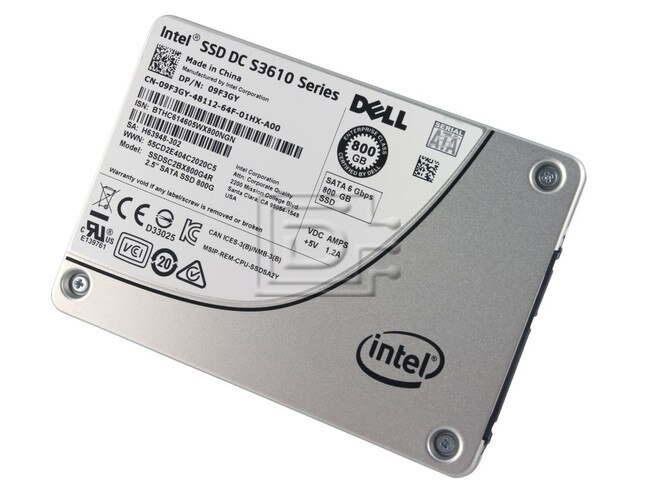

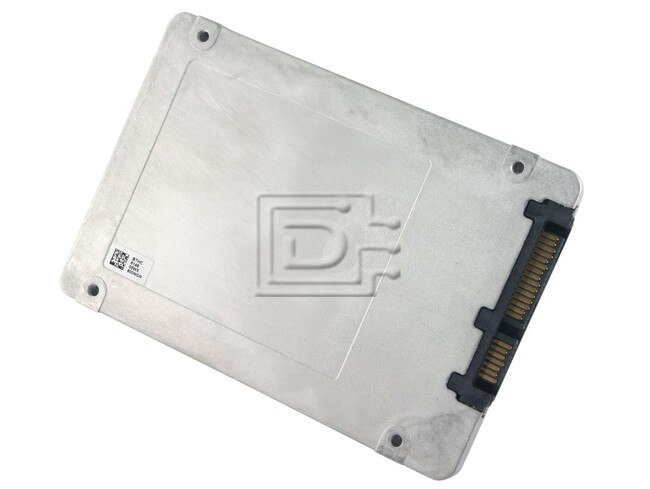

Intel SSD DC S3610 Series SSDSC2BX800G4R / 9F3GY 800GB 2.5" 6Gbps MLC Mixed Use SED SATA SSD - Certified 95 OEM

Intel SSD DC S3610 Series SSDSC2BX800G4R / 9F3GY 800GB 2.5" 6Gbps MLC Mixed Use SED SATA SSD - Certified 95 OEM


Dell PN: 09F3GY; 9F3GY,

The intel SSD DC S3610 Series delivers excellent performance and Quality of Service with high reliability for Serial Advanced Technology Attachment (SATA)-based computers in capacities of 100GB, 200GB, 400GB, 480GB, 800GB, 1.2TB and 1.6TB

By combining 20nm Intel NAND Flash Memory technology with SATA 6Gb/s interface support, the Intel SSD DC S3610 Series delivers Sequential Read speeds of up to 550 MB/s and Sequential Write speeds of up to 520 MB/s. The Intel SSD DC S3610 Series also delivers 4k Read speeds of up to 84,000 IOPS and Random 4k Write speeds of up to 28,000 IOPS, and Quality of Service of 500 µs for random 4KB reads measured at a queue depth of 1.

The industry-standard 2.5-inch and 1.8-inch form factor enable interchangeability with existing hard disk drives (HDDs) and native SATA HDD drop-in replacement with the enhanced performance, reliability, ruggedness, and power saving offered by an SSD.

Intel SSD DC S3610 Series offers these key features:

  • Standard Endurance Technology
  • High I/O and throughput performance
  • Consistent I/O latency
  • Enhanced power-loss data protection
  • End-to-End data protection
  • Thermal throttling
  • Temperature Sensor
  • Inrush current management
  • Low power
  • High reliability
  • Temperature monitor and logging
  • Power loss protection capacitor self-test


Compatibility:

This drive is compatible with any server or laptop that accepts 2.5in x 7mm SATA drives.

Intel Solid State Drive DC S3610 Series
Standard Model NumbersSSDSC2BX800G4R
Dell Model Numbers9F3GY, 09F3GY
Product Specifications
Capacity800GB
Components
  • Intel 20nm NAND Flash Memory
  • High Endurance Technology (HET) Multi-Level Cell (MLC)
  • Form Factor2.5-inch
    Endurance 3 Drive Writes Per Day for 5 Years
    Quality of Service Read/Write500 / 5 ms (99.9%)
    Performance Consistency Read/WriteUp to 90%/90% (99.9%)
    EncryptionAES 256-bit Encryption
    Product Ecological ComplianceRoHS
    Compliance
  • SATA Revision 3.0; compatible with SATA 6Gb/s, 3Gb/s and 1.5Gb/s Interface Rates
  • ATA/ATAPI Command Set - 2 (ACS-2 Rev 7); includes SCT (Smart Command Transport and device statistics log support
  • Enhanced SMART ATA feature set
  • Native Command Queuing (NCQ) command set
  • Data set management Trim command
  • Power Management
  • 5V or 5V+12V SATA Supply Rail
  • SATA interface Power Mangement
  • OS-aware hot plug/removal
  • Enhanced power-loss data protection feature
  • Power ActiveUp to 6.8 W (TYP)
    Power Idle600 mW
    Weight88 grams +/- 2 grams
    Temperature
  • Operating 0°C to 70°C
  • Non-Operating -55°C to 95°C
  • Temperature monitoring and logging
  • Thermal throttling
  • Shock (operating and non-operating1,000 G/0.5 ms
    Vibration
  • Operating 2.17 Grms (5-700 Hz)
  • Non-Operating 3.13 Grms (5-800 Hz)
  • Uncorrectable Bit Error Rate (UBER)
  • 1 sector per 10e17 bits read
  • Mean Time Between Failures (MTBF)2 million hours

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 09F3GY 9F3GY

    Weight: 0.5 lb

    Warranty: 1 Year DiscTech

    Certified 95

    1 Year DiscTech Warranty
