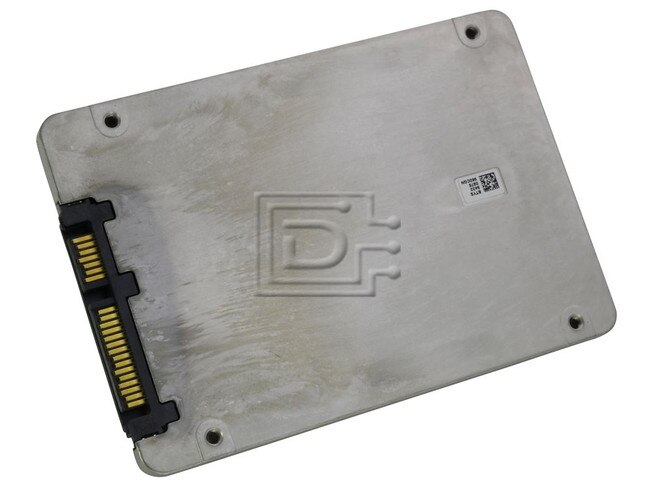

Intel SSDSC2KB960G701 960GB SATA Solid State Drive

INTEL Part #/MPN: SSDSC2KB960G701

DiscTech Item #: INT-SSDSC2KB960G701-BN-5Y


$249.00
$249.00

Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 500/490

Average Seek Time: 36 µs / 36 µs

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Intel SSDSC2KB960G701 960GB 2.5in 6Gbps TLC DC S4500 Series Read Intensive SED SATA SSD - Brand New

Intel SSDSC2KB960G701 960GB 2.5"6.0 Gb/s Triple-Level Cell Data Center S4500 Series Read Intensive Drive Writes Per Day / DWPD-4.3 Self-Encrypting Drive Serial ATA / SATA Solid State Disk Drive / SSD - Brand New

Intel® SSD DC S4500/DC S4600 Series Data Center (DC), SATA (S)

Storage Inspired. Infrastructure Optimized.

Switch from legacy HDDs to the trusted Intel® SSD DC S4500/DC S4600 Series to reduce costs, increase server efficiency, and improve data reliability.
Protect your data center investment by replacing legacy HDDs with the trusted Intel® SSD DC S4500 and DC S4600 Series. The newest members of the 2nd Gen Intel® 3D NAND SSD family feature a new Intel-developed SATA controller, innovative SATA firmware, and the industry’s highest density 3D NAND. Highly reliable, these storage inspired SSDs enable data centers to reduce costs, increase server efficiency, and minimize service disruptions.

The Intel SSD DC S4500 and DC S4600 Series storage inspired devices enable data centers to optimize legacy infrastructures while enabling their business growth.

Reduce Cost with Infrastructure Compatibility
Built for compatibility in legacy infrastructures, the SSD DC S4500 and DC S4600 Series with a SATA interface enable easy storage upgrades that minimize the costs associated with modernizing your data center. These latest generation enterprise grade SSDs reduce power demand and cooling requirements by up to 3.2x,1 lowering operational costs that scale across the data center.

Increase Server Efficiency and Do More Per Server
Based on TLC Intel® 3D NAND technology, the SSD DC S4500 and DC S4600 Series offer a variety of capacities, from 240GB up to 4TB, in a standard 2.5-inch form factor. With larger capacities, data centers can significantly increase data stored per rack unit versus standard 2.5-inch, 2TB HDDs. Simply by integrating SSDs into the environment, IT can improve server agility with up to 209x more IOPS/TB,2 supporting more users and greater services to grow the business without expanding the server footprint.

Improve Data Reliability
With a 3.2x lower Annualized Failure Rate (AFR) compared to HDDs,3 IT departments will spend less time and expense replacing or upgrading storage devices. Intel SATA SSDs install seamlessly so you can reduce risk of component failures. Equally important, once the SSDs are installed, the innovative SATA firmware completes updates without reset and reduces downtime.

Minimize Service Disruptions
For years, Intel has been a leader in providing trusted data center SSDs that maximize data continuity in enterprise and cloud data centers. That reputation continues with the DC S4500 and DC S4600 Series with key capabilities that help ensure more uptime:

  • Consistently delivers durable performance to optimize service level continuity
  • End-to-end data protection helps keep data safe—even in the event of a power loss
  • Up to 3.2x lower Annualized Failure Rates (AFR)3 means fewer drive replacements
  • Innovative firmware completes updates without server reset and reduces downtime
  • Simplified configurations reduce risk of component failure and streamline maintenance

New Intel-Designed SATA Controller
A new SATA controller for the DC S4500 and DC S4600 Series delivers the convergence of scalable capacity and manageability. With Intel’s SATA controller, the DC S4600 delivers up to 30% faster mixed workloads,4 increasing service delivery performance and efficiency.

Integrate Intel® 3D NAND SSDs Today
SATA has long been the cost-effective, industry-standard interface for data center storage. Simply replacing existing HDDs with larger capacity and higher performing Intel SSD DC S4500 and DC S4600 Series SATA-based solutions can maximize existing infrastructure investments, while reducing future costs and boosting what IT can deliver to their customers.

Features At-a-Glance

Capacity

  • S4500: 240GB, 480GB, 960GB, 2TB (1.92TB), 4TB (3.84TB)
  • S4600: 240GB, 480GB, 960GB, 2TB (1.92TB)

Performance

  • 128KB Sequential Read/Write – up to 500/490 MB/s
  • S4500: 4k Random Read/Write – up to 72K/33K IOPS
  • S4600: 4k Random Read/Write – up to 72K/65K IOPS

Reliability

  • Designed for end-to-end data protection from silent data corruption, uncorrectable bit error rate < 1 sector per 1017 bits read

Power

  • S4500: Active power 5.6W; Idle power 1.1W
  • S4600: Active power 5W; Idle power 1W

Interface

  • SATA 6Gb/s

Form Factor

  • 2.5in x 7mm

Media

  • Intel 3D NAND, TLC

Endurance

  • S4500: 1 DWPD
  • S4600: 3 DWPD
Comparable to SSDSC2KB960G801 / S4510 - successor model.


Compatibility:

This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives

Intel® SSD DC S4500 Series
Model NumberSSDSC2KB960G701
ESSENTIALS
PRODUCT COLLECTIONIntel® SSD DC S4500 Series
CODE NAMEProducts formerly Youngsville
CAPACITY960 GB
STATUSLaunched
LAUNCH DATEQ3'17
LITHOGRAPHY TYPE3D NAND TLC
PERFORMANCE
SEQUENTIAL READ (UP TO)500 MB/s
SEQUENTIAL WRITE (UP TO)490 MB/s
RANDOM READ (100% SPAN)72000 IOPS
RANDOM READ (100% SPAN)30000 IOPS
LATENCY - READ36 µs
LATENCY - WRITE36 µs
POWER - ACTIVE4.8 W
POWER - IDLE1.0 W
RELIABILITY
VIBRATION - OPERATING2.17 GRMS
VIBRATION - NON-OPERATING3.13 GRMS
SHOCK (OPERTING AND NON-OPERATING)1000 G/0.5 msec
OPERTING TEMPERATURE RANGE0°C to 70°C
ENDURANCE RATING (LIFETIME WRITES)7.64 PBW
MEAN TIME BETWEEN FAILURES (MTBF)2 million hours
UNCORRECTABLE BIT ERROR RATE (UBER)1 sector per 10^17 bits read
PACKAGE SPECIFICATIONS
FORM FACTOR2.5" 7mm
INTERFACESATA 3.0 6Gb/s
ADVANCED TECHNOLOGIES
ENHANCED POWER LOSS DATA PROTECTIONYes
HARDWARE ENCRYPTIONAES 256 bit
HIGH ENDURANCE TECHNOLOGY (HET)No
TEMPERATURE MONITORING AND LOGGINGYes
END-TO-END DATA PROTECTIONYes
INTEL SMART RESPONSE TECHNOLOGYNo
INTEL RAPID START TECHNOLOGYNo
INTEL REMOTE SECURE ERASENo

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2KB960G7 J52632-000 S4500

Weight: 0.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
