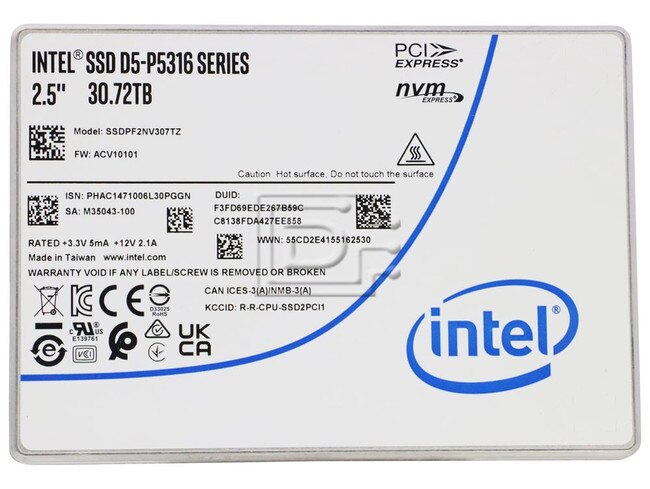

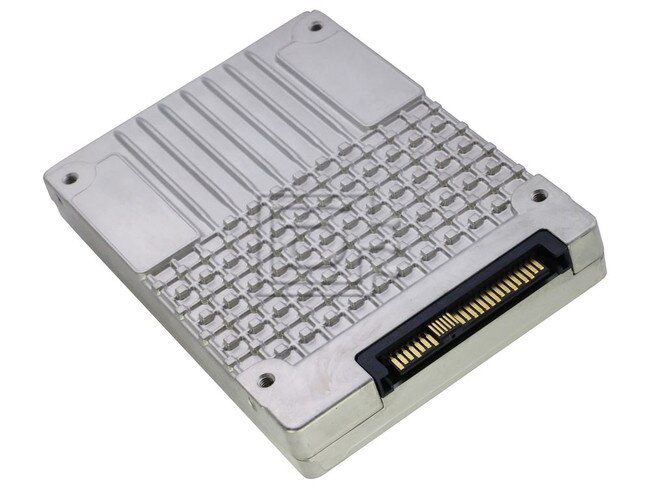

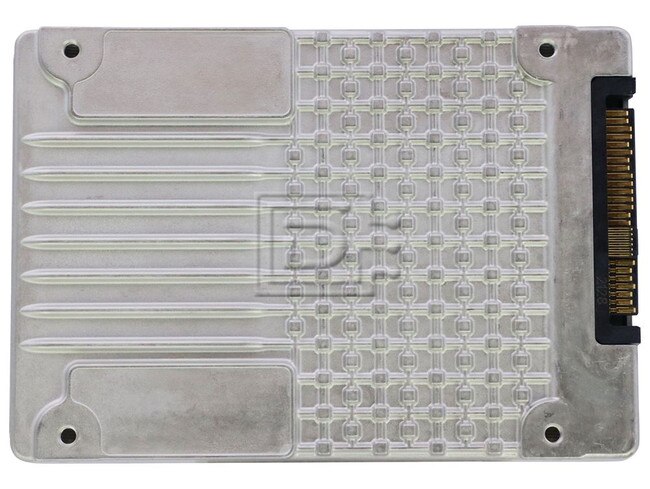

Intel / Solidigm 30.72TB (30TB) SSDPF2NV307TZN1 / D5-P5316 NVME PCIe U.2 SSD

Solidigm SSDPF2NV307TZN1 99AA1P PCIe SSD Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$3,499.00

Capacity:30.72TB
Speed:Solid State
Interface Types:NVMe U.2
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:PCIe 4.0 32GBps
Click to see more 30.72TB NVMe U.2 Solid State Drives

Description

Intel / Solidigm SSDPF2NV307TZN1 / D5-P5316 / 99AA1P 30.72TB 2.5" NVME U.2 PCIe 4.0 X4 SSD - Brand New

Intel / Solidigm SSDPF2NV307TZN1 / D5-P5316 / 99AA1P 30.72TB 2.5" NVME U.2 PCIe 4.0 X4 SSD - Brand New

Intel D5-P5316 Series SSD
Combining the industry’s first 144-layer QLC NAND and PCIe 4.0, the read-optimized Intel® SSD D5-P5316 enables significant TCO savings while accelerating warm storage.

The Intel SSD D5-P5316 includes numerous firmware enhancements specifically optimized for both enterprise and cloud workloads to deliver better latency,4 expanded management capabilities, and critical new NVMe features.

• NVMe 1.3c and NVMe-MI1.0a- compliant.

• Scatter Gather List (SGL) removes the need to double-buffer host data.

• Persistent Event Log exposes deeper drive history for debugging at scale.

• Designed to enhance security with AES-256 Hardware Encryption, NVMe Sanitize, Firmware Measurement.

• Telemetry makes a wide range of stored data accessible and includes intelligent error tracking and logging. This increases the reliability of finding and mitigating issues and supports accelerated qualification cycles—all of which result in increased IT efficiency.

Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drives.

Specifications

Intel Model NumberSSDPF2NV307TZN1
Ordering Part NumberSSDPF2NV307TZN1
Product Specification
Capacity30.72TB
InterfacePCIe NVMe 4.0 x4
Sequential Read 128K7000 MB/s
Sequential Write 128K3600 MB/s
Random Read800k IOPS (4K Blocks)
Random Write510 MBps (64K Blocks)
Random 64K 70/30 R/W1170MBps
Enhanced Power Loss Data ProtectionYes
Power - Active25W
Power - Idle5W
Vibration - Operating2.17 GRMS
Vibration - Non-Operating3.13 GRMS
Shock (Operating and Non-Operating)1000G/0.5msec
Operating Temperature Range0°C to 70°C
Weight (g/lb)115/0.254
Endurance Rating (Lifetime Writes)0.41 DWPD
Mean Time Between Failures (MTBF)2,000,000 Hrs
Uncorrectable Bit Error Rate (UBER)less than 1 sector per 10e17 bits read
Form Factor2.5" 15mm
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 99AA1P

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
