INTEL Part #/MPN: X540-T2
DiscTech Item #: INT-X540-T2-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, PCIe
Electrical Interface: Ethernet 10Gigabit - 10Gbps
On-Board Cache: 8MB

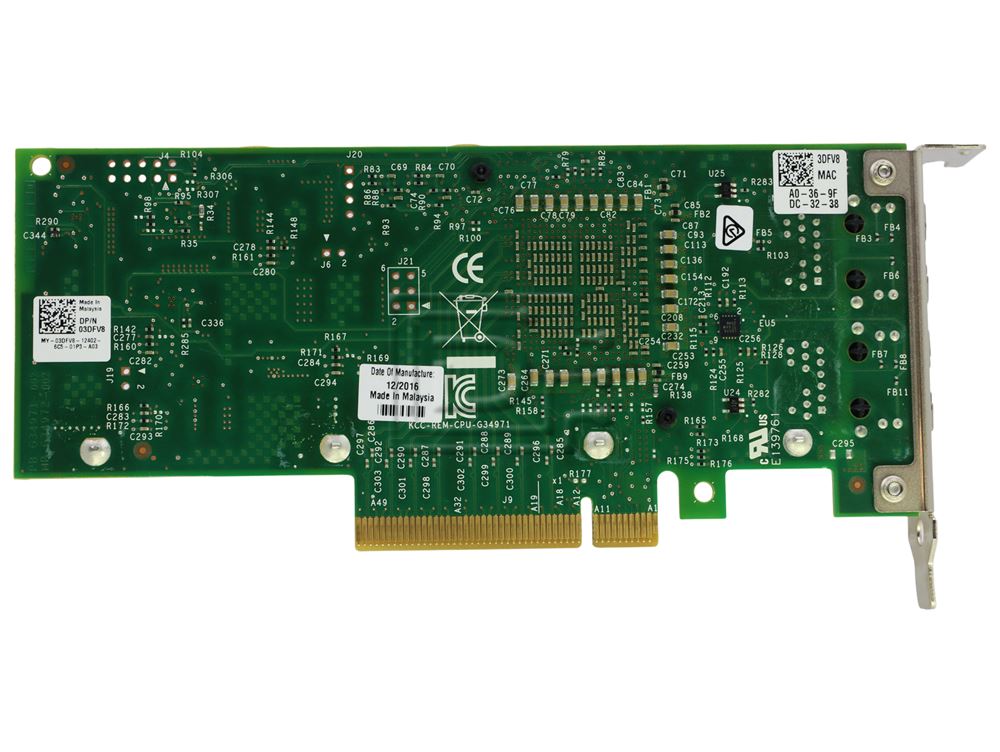

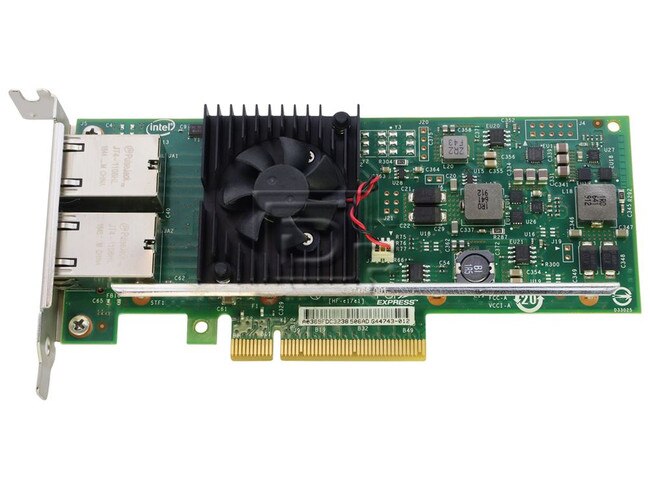

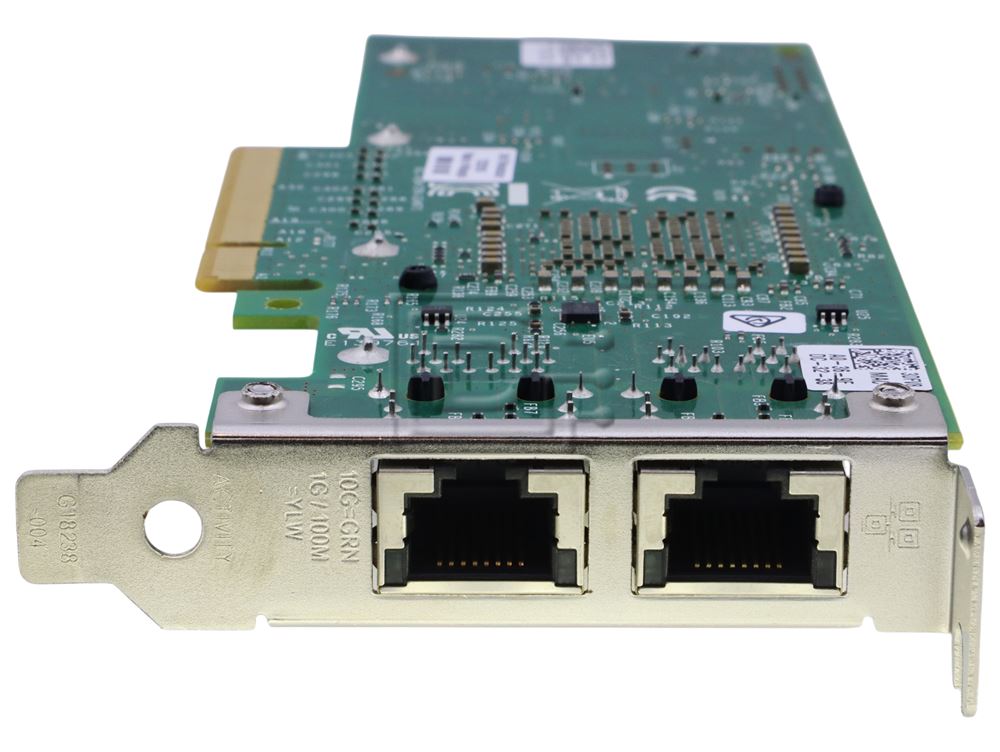

Intel X540-T2 10G Ethernet Server Converged dual port Network Adapter - New Pull
Intel X540-T2 10G Ethernet Server Converged dual port Network Adapter
Fully integrated 10GBASE-T controller designed for LAN-on-Motherboard (LOM) & Converged Network Adapters (CNA)
Compatibility:
Supported OS:
| FreeBSD 10.2 | Linux RHEL 6.7 | Linux RHEL 7.1 | Linux SLES 11 SP4 |
| Linux SLES 11 SP4-IA64 | Linux SLES 12 | Linux Stable Kernel version 2.6/3.x | Linux Stable Kernel version 4.x |
| UEFI 2.1 | UEFI 2.3 | UEFI 2.4 | VMware ESXi 5.5/6.0 |
| Windows 7 SP1 | Windows 8 | Windows 8.1 | Windows 10 |
| Windows Server 2008 R2 | Windows Server 2008 R2 Core | Windows Server 2008 R2 Hyper-V | Windows Server 2012 |
| Windows Server 2012 Core | Windows Server 2012 Hyper-V | Windows Server 2012 R2 | Windows Server 2012 R2 Core |
| Windows Server 2012 R2 Hyper-V | WinPE 3.0 (2008 R2 PE) | WinPE 4.0 (2012 PE) | WinPE 5.0 (2012 R2 PE) |
Intel® Ethernet Converged Network Adapter X540-T2
| Essentials | |
| Product Collection | Intel® Ethernet Converged Network Adapter X540 |
| Marketing Status | Discontinued |
| Launch Date | Q1'12 |
| Vertical Segment | Server |
| Cable Medium | Copper |
| Cabling Type | RJ45 Category 6 up to 55 m; Category 6A up to 100 m |
| Bracket Height | Low Profile and Full Height |
| Supported Operating Systems | View here |
| Networking Specifications | |
| Port Configuration | Dual |
| Data Rate Per Port | 10GbE/1GbE/100Mb |
| Intel® Virtualization Technology for Connectivity (VT-c) | Yes |
| Speed and Slot Width | 5.0 GT/s, x8 Lane |
| Controller | Intel® Ethernet Controller X540 |
| Package Specifications | |
| System Interface Type | PCIe v2.1 (5.0 GT/s) |
| Intel® Virtualization Technology for Connectivity | |
| On-chip QoS and Traffic Management | Yes |
| Flexible Port Partitioning | Yes |
| Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| Advanced Technologies | |
| iWARP/RDMA | No |
| Intel® Ethernet Power Management | No |
| Intel® Data Direct I/O Technology | Yes |
| Intelligent Offloads | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 3DFV8 03DFV8
Weight: 1 lb
Warranty: 1 Year DiscTech
