INTEL Part #/MPN: 7150N
DiscTech Item #: INT-7150N-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Socket PPGA604
Electrical Interface: Clock 3.5 GHz
On-Board Cache: 16MB
Wattage/VA: 150W

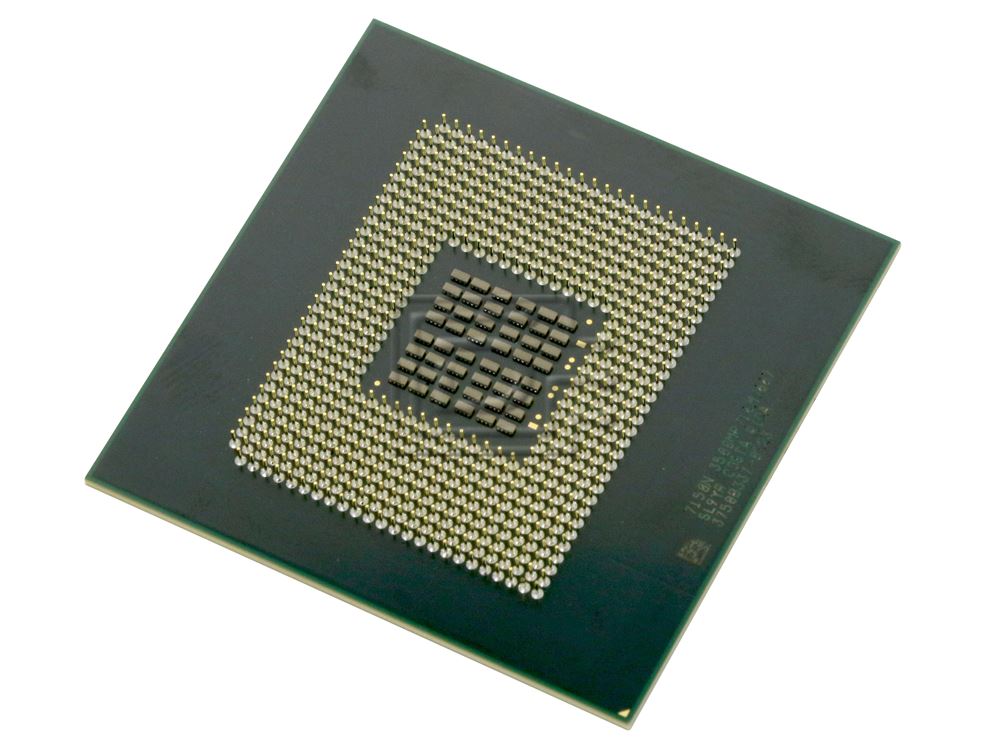

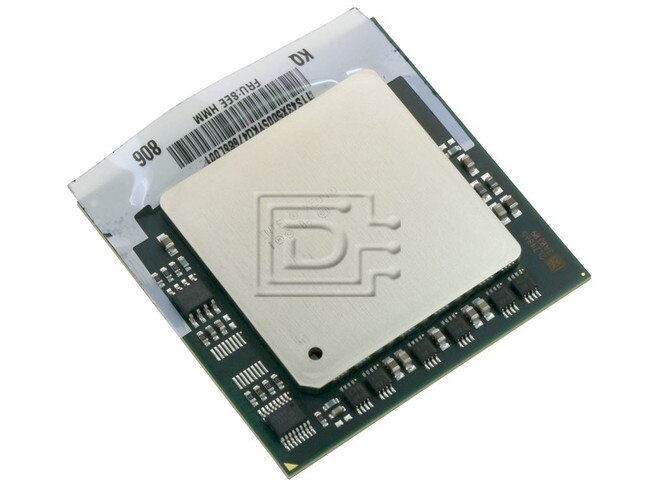

Intel Xeon 7150N / SL9YR 16M Cache 3.50 GHz 667 MHz Dual Core FSB Processor - Brand New
Intel Xeon 7150N / SL9YR 16M Cache 3.50 GHz 667 MHz Dual Core FSB / Front Side Bus Processor - Brand New
The Dual-Core Intel® Xeon® processor 7100 series is designed for high-performance multi-processor server applications for mid-tier enterprise serving and server consolidation. Based on the Intel NetBurst® microarchitecture and the new Hyper-Threading Technology, it is binary compatible with pervious Intel Architecture (IA-32) processors. The addition of Intel® 64 architecture provides 64-bit computing and 40-bit addressing provides up to 1 Terabyte of direct memory addressability. The Dual-Core Intel Xeon processor 7100 series is scalable to four processors and beyond in a multiprocessor system providing exceptional performance for applications running on advanced operating systems such as Microsoft Windows* 2003 server, and Linux* operating systems. The Dual-Core Intel Xeon processor 7100 series delivers compute power at unparalleled value and flexibility for internet infrastructure and departmental server applications, including application servers, databases, and business intelligence. The Intel NetBurst microarchitecture with Hyper-Threading Technology and Intel 64 architecture delivers outstanding performance and headroom from peak internet server workloads, resulting in faster response times, support for more users, and improved scalability.
- Available at 3.4, 3.33, 3.2, 3.16, 3.0, 2.6 or 2.5 GHz
- 65 nm process technology
- Binary compatible with application running on previous members of Intel's IA-32 microprocessor line
- Intel® 64 architecture
- Intel NetBurst® microarchitecture
- Hyper-Threading Technology
- Hardware support for multithreaded applications
- Rapid Execution Engine: Arithmetic Logic Units (ALUs) run at twice the processor core frequency
- Hyper Pipelined Technology
- Advanced Dynamic Execution
- Very deep out-of-order execution
- Enhanced branch prediction
- Intel® Virtualization Technology
- Execute Disable Bit
- System Management mode
- Machine Check Architecture (MCA)
- Includes 16-KB Level 1 (L1) data cache
- 2 MB Advanced Transfer Cache (On-die, full speed Level 2 (L2) Cache) with 8-way associativity and Error Correcting Code (ECC)
- Up to 16MB Level 3 (L3) Cache with 16-way associativity and Error Correcting Code (ECC)
- Intel® Cache Safe Technology
- Fast 667 or 800 MHz system bus with Error Correcting Code (ECC)
- Enables system support of up to 64 GB of physical memory
- Demand Based Switching (DBS) with Enhanced Intel SpeedStep® Technology
- Enhanced thermal and power management capabilities:
- Thermal Monitor (TM1)
- Thermal Monitor 2 (TM2)
- 144 Streaming SIMD Extensions 2 (SSE2) instructions
- 13 Streaming SIMD Extensions 3 (SSE3) instructions
- Enhanced floating-point and multimedia unit for enhanced video, audio, encryption, and 3D performance
Intel Xeon Processor 7150N | |
---|---|
PART NUMBER | 7150N |
Essentials | |
Product Collection | Legacy Intel Xeon Processors |
Code Name | Products formerly Tulsa |
Vertical Segment | Server |
Processor Number | 7150N |
Status | Discontinued |
Expected Discontinuance | Q4'2008 |
Lithography | 65 nm |
Performance | |
Number of Cores | 2 |
Processor Base Frequency | 3.50 GHz |
Cache | 16 MB L2 |
Bus Speed | 667 MHz FSB |
FSB Parity | Yes |
TDP | 150 W |
VID Voltage Range | 1.10V-1.35V |
Supplemental Information | |
Embedded Options Available | No |
Datasheet | View here |
Package Specifications | |
Sockets Supported | PPGA604 |
TCase | 69°C |
Package Size | 53.3mm x 53.3mm |
Processing Die Size | 435 mm |
Number of Processing Die Transistors | 1328 million |
Low Halogen Options Available | No |
Advanced Technologies | |
Intel Turbo Boost Technology | No |
Intel Hyper-Threading Technology | Yes |
Intel Virtulaization Technology (VT-x) | Yes |
Intel 64 | Yes |
Instruction Set | 64-bit |
Idle States | No |
Enhanced Intel SpeedStep Technology | Yes |
Intel Demand Based Switching | No |
Security & Reliability | |
Intel Trusted Execution Technology | No |
Execute Disable Bit | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SL9YR
Weight: 3 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
