INTEL Part #/MPN: 3204
DiscTech Item #: INT-3204-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:2 Month DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:14Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Socket FCLGA3647
On-Board Cache: 8MB
Compatible Systems: Dell 14th Gen. R640/R740

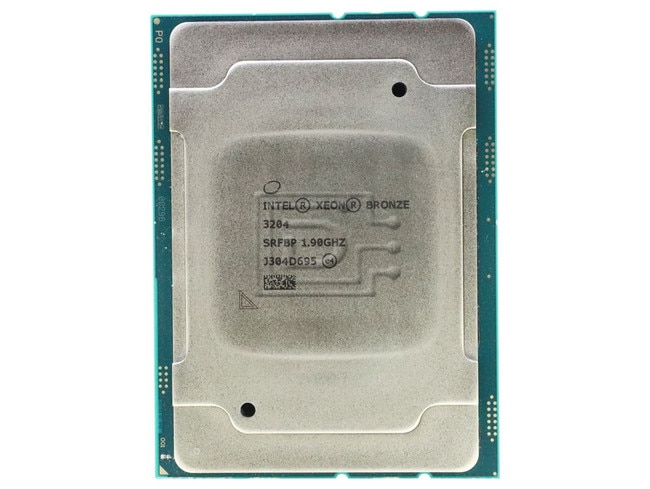

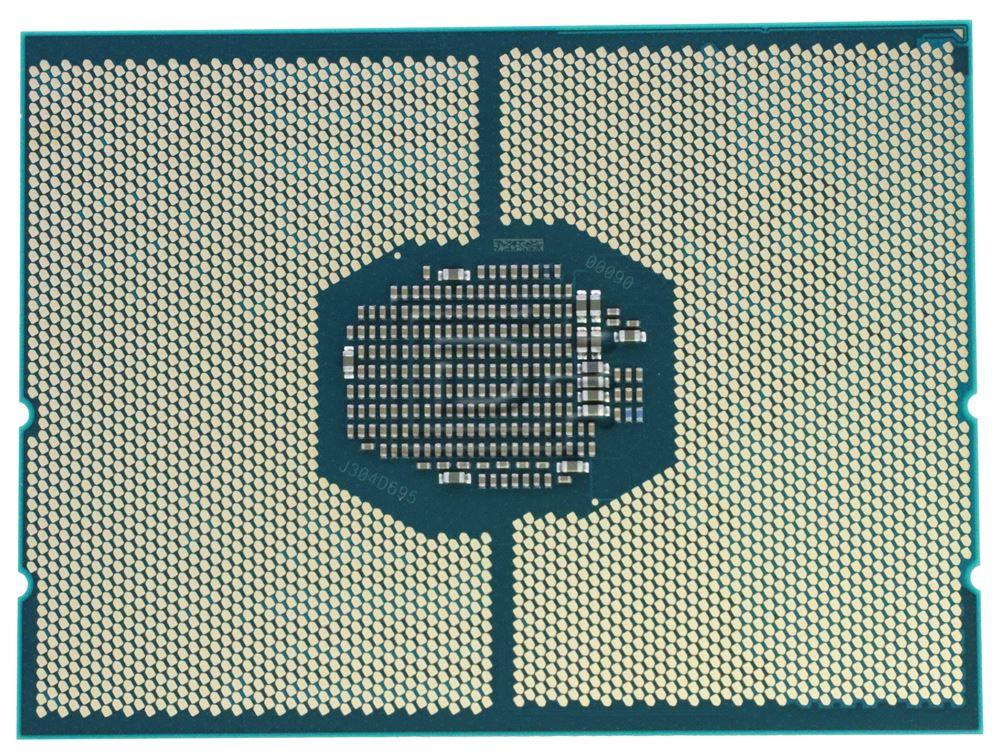

Intel Xeon Bronze 3204 / SRFBP / CD8069503956700 1.9 GHz 6-Core / 6-Thread 8.25MB L3 Cache FCLGA3647 / LGA 3647 Socket CPU Processor - New Pull
Intel Xeon Bronze 3204 / SRFBP / CD8069503956700 1.9 GHz 6-Core / 6-Thread 8.25MB L3 Cache FCLGA3647 / LGA 3647 Socket CPU Processor - New Pull
Compatibility:
Compatible with servers including, but not limited to..
- Dell PowerEdge R440 / T440
- Dell PowerEdge R540
- Dell PowerEdge R640 / T640 / M640
- Dell PowerEdge R740 / R740XD
- Dell PowerEdge C6420
- Dell PowerEdge MX740C
- Dell PowerEdge FC640
- Dell Precision Workstation T7820
| Server System R1208WFQYSR | Server System R1208WFTYS | Server System R1208WFTYSR | Server System R1304WF0YS |
| Server System R1304WF0YSR | Server System R1304WFTYS | Server System R1304WFTYSR | Server System R2208WF0ZS |
| Server System R2208WFQZS | Server System R2208WFTZS | Server System R2208WFTZSR | Server System R2208WF0ZSR |
| Server System R2224WFQZS | Server System R2224WFTZS | Server System R2224WFTZSR | Server System R2308WFTZS |
| Server System R2308WFTZSR | Server System R2312WF0NP | Server System R2312WF0NPR | Server Board R2312WFQZS |
| Server Board R2208WFQZSR | Server Board R2312WFTZS | Server Board R2312WFTZSR | Intel® Compute Module HNS2600BPB24 |
| Intel® Compute Module HNS2600BPB24R | Intel® Compute Module HNS2600BPB | Intel® Compute Module HNS2600BPBR | Intel® Compute Module HNS2600BPBR |
| Intel® Compute Module HNS2600BPBLC | Intel® Compute Module HNS2600BPBLC24 | Intel® Compute Module HNS2600BPBLC24R | Intel® Compute Module HNS2600BPB24R |
| Intel® Compute Module HNS2600BPQ | Intel® Compute Module HNS2600BPQ24 | Intel® Compute Module HNS2600BPQ24R | Intel® Compute Module HNS2600BPQR |
| Intel® Compute Module HNS2600BPS | Intel® Compute Module HNS2600BPSR | Intel® Compute Module HNS2600BPS24 | Intel® Compute Module HNS2600BPS24R |
| Intel® Server Board S2600BPB | Intel® Server Board S2600BPBR | Intel® Server Board S2600BPQ | Intel® Server Board S2600BPQR |
| Intel® Server Board S2600BPS | Intel® Server Board S2600BPSR | Intel® Server Board S2600WFQ | Intel® Server Board S2600WF0 |
| Intel® Server Board S2600WF0R | Intel® Server Board S2600WFQR | Intel® Server Board S2600WFT | Intel® Server Board S2600WFTR |
| ESSENTIALS | |
|---|---|
| CPU SPECIFICATIONS | |
| SUPPLEMENTAL INFORMATION | |
| MEMORY SPECIFICATIONS | |
| EXPANSION OPTIONS | |
| PACKAGE SPECIFICATIONS | |
| ADVANCED TECHNOLOGIES | |
| SECURITY & RELIABILITY | |
| Product Collection | Intel® Xeon® Scalable Processors |
| Code Name | Products formerly Cascade Lake |
| Vertical Segment | Server |
| Processor Number | 3204 |
| Launch Date | Q3'17 |
| Lithography | 14 nm |
| Total Cores | 6 |
| Total Threads | 6 |
| Processor Base Frequency | 1.90 GHz |
| Cache | 8.25 MB |
| Number of UPI Links | 2 |
| TDP | 85 W |
| Embedded Options Available | No |
| Max Memory Size (dependent on memory type) | 768 GB |
| Memory Types | DDR4-2133 |
| Max Memory Speed | 2133 MHz |
| Max # of Memory Channels | 6 |
| ECC Memory Supported | Yes |
| Scalability | 25 |
| PCI Express Revision | 3.0 |
| Max # of PCI Express Lanes | 48 |
| Sockets Supported | FCLGA3647 (LGA 3647) |
| TCase | 77°C |
| Package Size | 76.0mm x 56.5mm |
| Intel Optane Memory Supported | No |
| Intel Speed Shift Technology | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Turbo Boost Technology | No |
| Intel vPro Platform Eligibility | Yes |
| Intel Hyper-Threading Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Transactional Synchronization Extensions | Yes |
| Intel 64 | Yes |
| Instruction Set Extensions | Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512 |
| # of AVX-512 FMA Units | 1 |
| Enhanced Intel SpeedStep® Technology | Yes |
| Intel Volume Management Device (VMD) | Yes |
| Intel AES New Instructions | Yes |
| Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Mode-based Execute Control (MBEC) | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SRFBP CD8069503956700
Weight: 1 lb
Warranty: 2 Month DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
2 Month DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
