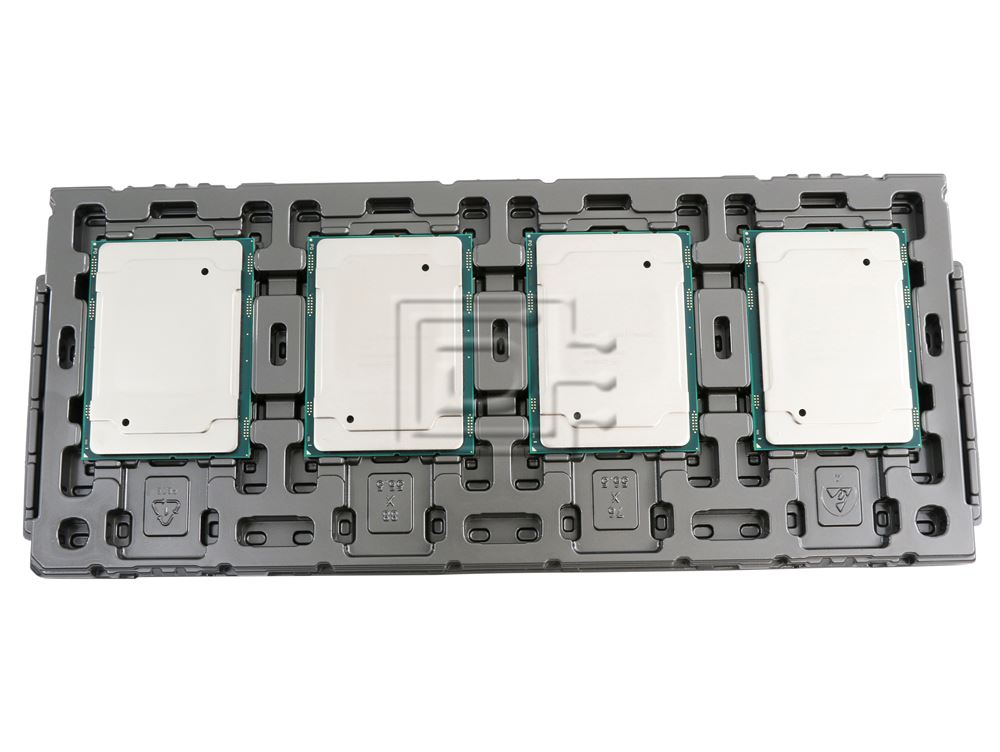

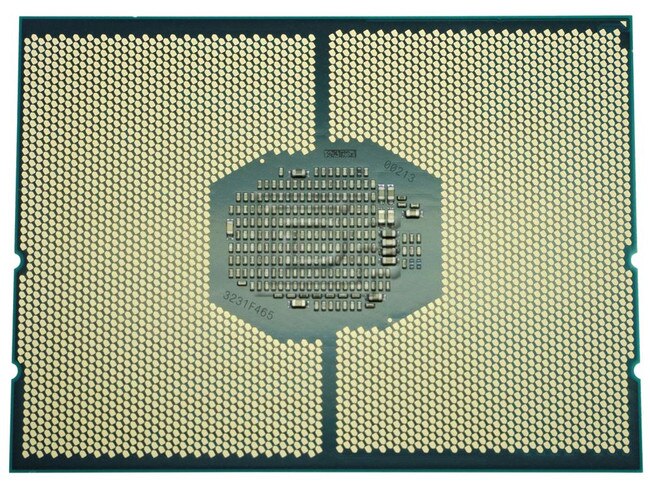

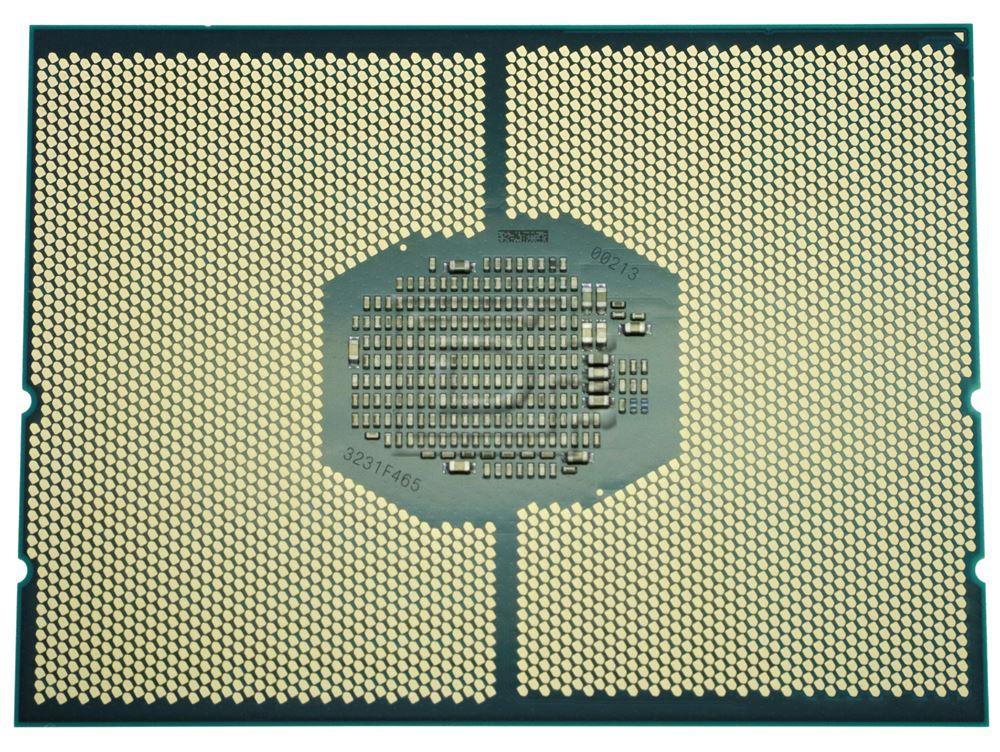

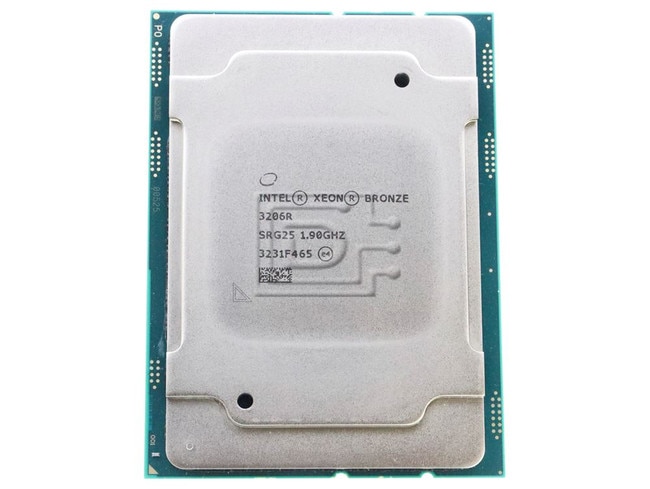

Intel Xeon Bronze 3206R / SRG25 / CD8069504344600 1.9 GHz 8-Core 11MB FCLGA3647 CPU

INTEL Part #/MPN: 3206R

DiscTech Item #: INT-3206R-BN-2M

$300.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:2 Month DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • In Stock:2Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back
$300.00

Interface Types: Socket FCLGA3647

Electrical Interface: Clock 1.8 GHz

On-Board Cache: 10MB

Compatible Systems: Dell 14th Gen. R640/R740

Intel Xeon Bronze 3206R / SRG25 / CD8069504344600 1.9 GHz 8-Core 11MB Cache FCLGA3647 Socket CPU Processor - Brand New

Intel Xeon Bronze 3206R / SRG25 / CD8069504344600 1.9 GHz 8-Core 11MB Cache FCLGA3647 Socket CPU Processor - Brand New

Compatibility:

Compatible with servers including, but not limited to..

  • Dell PowerEdge R430 / T430
  • Dell PowerEdge R530
  • Dell PowerEdge R630 / T630
  • Dell PowerEdge R730 / R730XD

Server System R1304BB4DCServer System MCB2224THY1Server System VRN2224THY2Server System VRN2224THY4
Server System R1208WT2GSRServer System R1208WTTGSRServer System R1304WT2GSRServer System R1304WTTGSR
Server System R2208WTTYSRServer System R2208WT2YSRServer System R2208WTTYC1RServer System R2308WTTYSR
Server System R2312WTTYSRServer System R2224WTTYSRServer System S2600CW2RServer System S2600CW2SR
Server System S2600CWTRServer System S2600CWTSRServer System S2600KPRServer Board S2600KPFR
Server Board S2600KPTRServer Board S2600TPFRServer Board S2600TPNRServer Board S2600TPR
Server Board S2600WTTRServer Board S2600WT2RServer Board S2600WTTS1R

ESSENTIALS
Product Collection2nd Generation Intel® Xeon® Scalable Processors
Code NameProducts formerly Cascade Lake
Vertical SegmentServer
Processor Number3206R
Lithography14 nm
CPU SPECIFICATIONS
Total Cores8
Total Threads8
Max Turbo Frequency1.90 GHz
Processor Base Frequency1.90 GHz
Cache11 MB
Number of UPI Links2
TDP85 W
SUPPLEMENTAL INFORMATION
Launch DateQ1'20
Embedded Options AvailableNo
MEMORY SPECIFICATIONS
Max Memory Size (dependent on memory type)1 TB
Memory TypesDDR4-2133
Max Memory Speed2133 MHz
Max # of Memory Channels6
Intel® Optane™ Persistent Memory SupportedNo
ECC Memory SupportedYes
EXPANSION OPTIONS
Scalability25
PCI Express Revision3.0
Max # of PCI Express Lanes48
PACKAGE SPECIFICATIONS
Sockets SupportedFCLGA3647
TCase78°C
Package Size76.0mm x 56.5mm
ADVANCED TECHNOLOGIES
Intel® Deep Learning Boost - Intel® DL BoostYes
Intel® Speed Select Technology - Performance ProfileNo
Intel® Speed Select Technology - Base FrequencyNo
Intel® Resource Director Technology - Intel® RDTYes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Max Technology 3.0No
Intel® Turbo Boost TechnologyNo
Intel® Hyper-Threading TechnologyNo
Intel® Transactional Synchronization ExtensionsYes
Intel® 64Yes
Instruction Set ExtensionsIntel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
# of AVX-512 FMA Units1
Enhanced Intel SpeedStep® TechnologyYes
Intel® Volume Management Device (VMD)Yes
SECURITY & RELIABILITY
Intel vPro® EligibilityIntel vPro® Platform
Intel® AES New InstructionsYes
Intel® Trusted Execution TechnologyYes
Execute Disable BitYes
Intel® Run Sure TechnologyNo
Mode-based Execute Control (MBEC)Yes
Intel® Virtualization Technology (VT-x)Yes
Intel® Virtualization Technology for Directed I/O (VT-d)Yes
Intel® VT-x with Extended Page Tables (EPT)Yes
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SRG25 CD8069504344600

Weight: 1 lb

Warranty: 2 Month DiscTech

Brand New
