Intel Xeon E5-2403 v2 1.8 GHz Quad-Core Processor

INTEL Part #/MPN: E5-2403V2

DiscTech Item #: INT-E5-2403V2-RF-2M


Interface Types: Socket FCLGA1356

Electrical Interface: Clock 1.8 GHz

On-Board Cache: 10MB

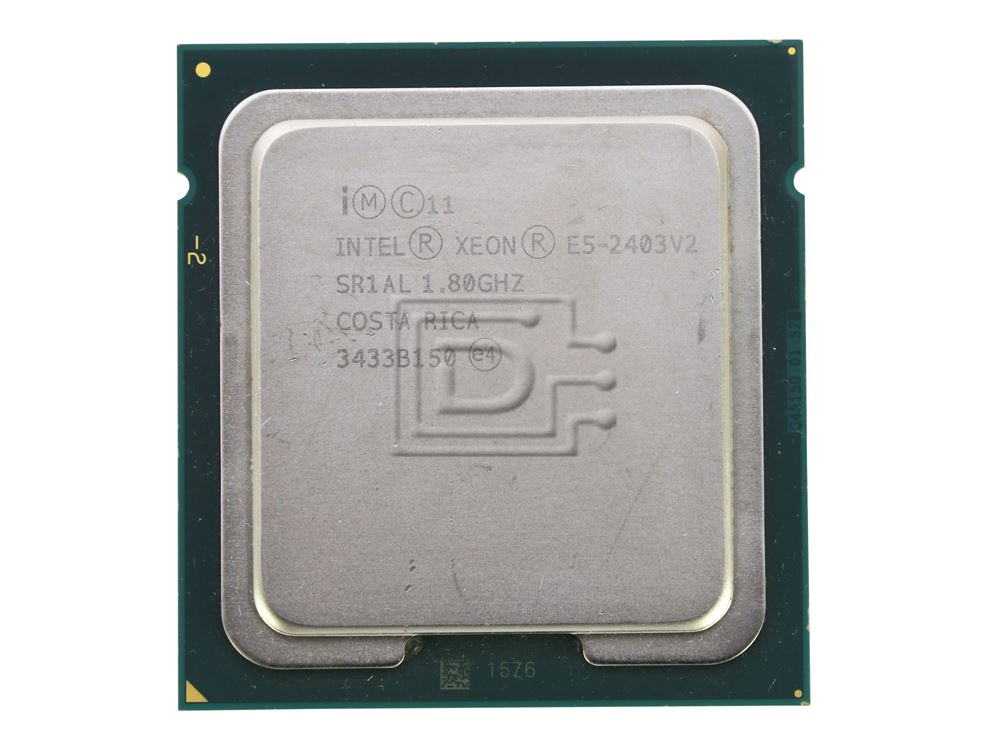

Intel Xeon E5-2403 v2 / SR1AL 1.8 GHz Quad-Core Processor 10MB LGA1356 Socket - Refurbished

Intel Xeon E5-2403 v2 / SR1AL 1.8 GHz Quad-Core Processor 10MB LGA1356 Socket - Refurbished


Compatible with servers supporting socket FCLGA1356 CPUs such as Dell Poweredge R320.

Also including, but not limited to...

Server System R1304BB4DCServer System R1208BB4DCServer System R1208BB4GS9Server System R1304BB4GS9
Server System R1304SP2SFBNServer System R1304SP2SHBNServer System R1304SP4SHOCServer System R2000BB4GS9
Server System R2208BB4GCServer System R2208BB4GS9Server System R2216BB4GCServer System R2224BB4GCSAS
Server System R2308BB4GCServer System R2312BB4GS9td> Server System R2308SC2SHDRServer System R2308SC2SHFN
Server System R2312SC2SHGRServer System P4304SC2SHDRServer System P4308SC2MHGCServer Board S1400FP2
Server Board S1400FP4Server Board S1400SP2Server Board S1400SP4Server Board S2400BB4
Server Board S2400EP2Server Board S2400EP4Server Board S2400LPServer Board S2400SC2

Product CollectionIntel® Xeon® Processor E5 v2 Family
Code NameProducts formerly Ivy Bridge EN
Vertical SegmentEmbedded
Processor NumberE5-2403V2
Lithography22 nm
Number of Cores4
Number of Threads4
Processor Base Frequency1.80 GHz
Max Turbo Frequency1.80 GHz
Cache10 MB SmartCache
Bus Speed6.4 GT/s
Number of QPI Links1
VID Voltage Range0.65-1.30V
Embedded Options AvailableNo
Max Memory Size (dependent on memory type)384 GB
Memory TypesDDR3 800/1066/1333
Max Number of Memory Channels3
Max Memory Bandwidth32 GB/s
Physical Address Extensions46-bit
ECC Memory SupportedYes
Scalability2S Only
PCI Express Revision3.0
PCI Express Configurationsx4, x8, x16
Max Number of PCI Express Lanes24
Sockets SupportedFCLGA1356
Max CPU Configuration2
Package Size45mm x 42.5mm
Intel Turbo Boost TechnologiesNo
Intel Hyper-Threading TechnologyNo
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® TSX-NINo
Intel 64Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel AVX
Enhanced Intel SpeedStep TechnologyYes
Intel® Demand Based SwitchingYes
Thermal Monitoring TechnologiesYes
Intel® Flex Memory AccessNo
Intel Identity Protection TechnologyNo
Intel AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Trusted Execution TechnologyYes
Execute Disable BitYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: E5-2403-V2 SR1AL

Weight: 1 lb

Warranty: 2 Month DiscTech
