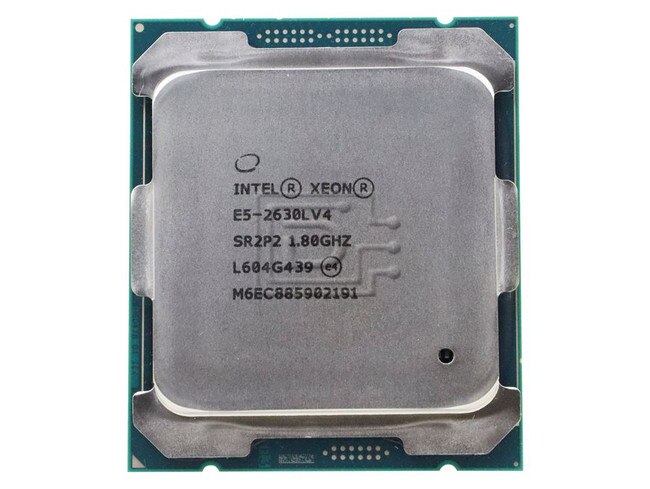

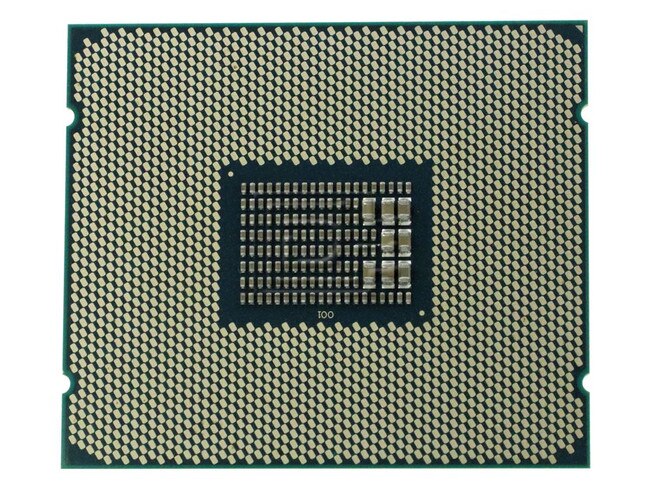

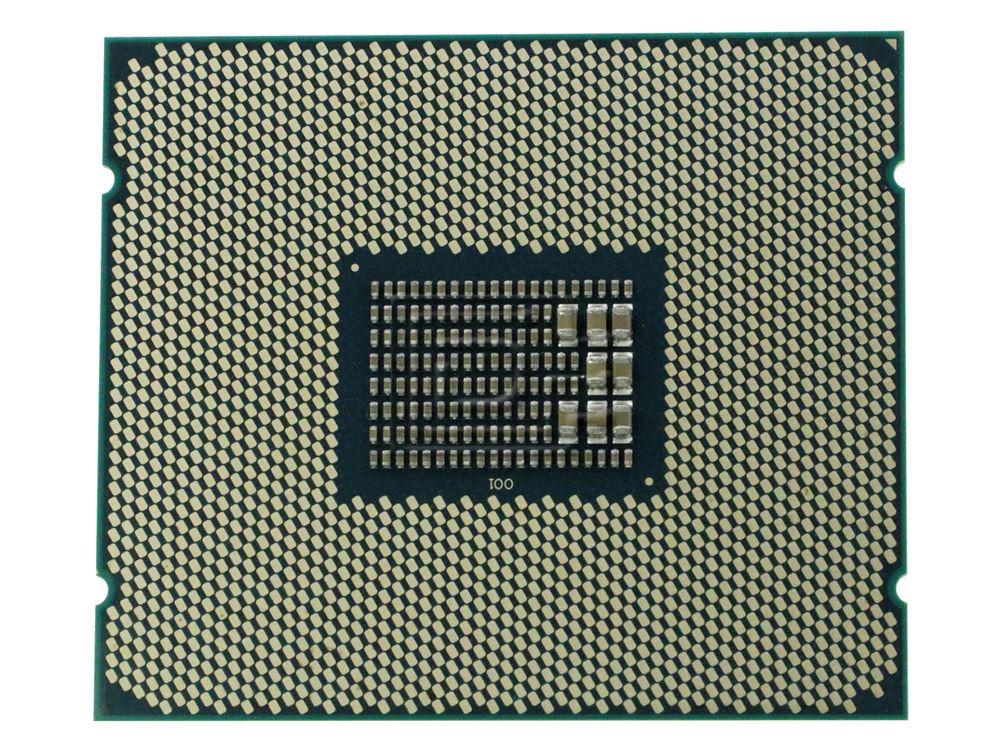

Intel Xeon E5-2630LV4 / SR2P2 / CM8066002033202 1.8 GHz 10-Core 25MB FCLGA2011-3 CPU Processor

INTEL Part #/MPN: E5-2630LV4

DiscTech Item #: INT-E5-2630LV4-NP-2M


Interface Types: Socket FCLGA2011

Electrical Interface: Clock 1.8 GHz

On-Board Cache: 32MB

Compatible Systems: Dell 13th Gen. R730/T630

Intel Xeon E5-2630LV4 / SR2P2 / CM8066002033202 1.8 GHz 10-Core 25MB Cache FCLGA2011-3 Socket CPU Processor - New Pull

Intel Xeon E5-2630LV4 / SR2P2 / CM8066002033202 1.8 GHz 10-Core 25MB Cache FCLGA2011-3 Socket CPU Processor - New Pull


Compatible with servers including, but not limited to..

  • Dell PowerEdge R430 / T430
  • Dell PowerEdge R530
  • Dell PowerEdge R630 / T630
  • Dell PowerEdge R730 / R730XD

Server System R1304BB4DCServer System MCB2224THY1Server System VRN2224THY2Server System VRN2224THY4
Server System R1208WT2GSRServer System R1208WTTGSRServer System R1304WT2GSRServer System R1304WTTGSR
Server System R2208WTTYSRServer System R2208WT2YSRServer System R2208WTTYC1RServer System R2308WTTYSR
Server System R2312WTTYSRServer System R2224WTTYSRServer System S2600CW2RServer System S2600CW2SR
Server System S2600CWTRServer System S2600CWTSRServer System S2600KPRServer Board S2600KPFR
Server Board S2600KPTRServer Board S2600TPFRServer Board S2600TPNRServer Board S2600TPR
Server Board S2600WTTRServer Board S2600WT2RServer Board S2600WTTS1R

Product CollectionIntel® Xeon® Processor E5 v4 Family
Code NameProducts formerly Broadwell
Vertical SegmentEmbedded
Processor NumberE5-2630LV4
Lithography14 nm
Number of Cores10
Number of Threads20
Processor Base Frequency1.80 GHz
Max Turbo Frequency2.90 GHz
Cache25 MB SmartCache
Bus Speed8 GT/s QPI
Number of QPI Links2
Embedded Options AvailableNo
Max Memory Size (dependent on memory type)1500GB / 1.5TB
Memory TypesDDR4 1600 / 1866 / 2133
Max Number of Memory Channels4
Max Memory Bandwidth68.3 GB/s
Physical Address Extensions46-bit
ECC Memory SupportedYes
PCI Express Revision3.0
PCI Express Configurationsx4, x8, x16
Max Number of PCI Express Lanes40
Sockets SupportedFCLGA2011-3
Max CPU Configuration2
Package Size45mm x 52.5mm
Intel Turbo Boost Technologies2.0
Intel Hyper-Threading TechnologyYes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® TSX-NIYes
Intel 64Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel AVX2
Enhanced Intel SpeedStep TechnologyYes
Intel® Demand Based SwitchingYes
Thermal Monitoring TechnologiesYes
Intel® Flex Memory AccessNo
Intel Identity Protection TechnologyNo
Intel AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Trusted Execution TechnologyYes
Execute Disable BitYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SR2P2 CM8066002033202

Weight: 1 lb

Warranty: 2 Month DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

2 Month DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
