INTEL Part #/MPN: E5-2650V4
DiscTech Item #: INT-E5-2650V4-NP-2M
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:2 Month DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:5Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Socket FCLGA2011
Electrical Interface: Clock 2.2 GHz
On-Board Cache: 32MB

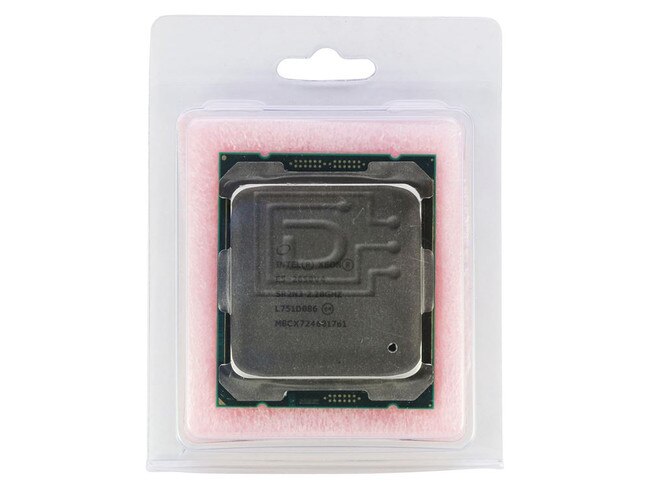

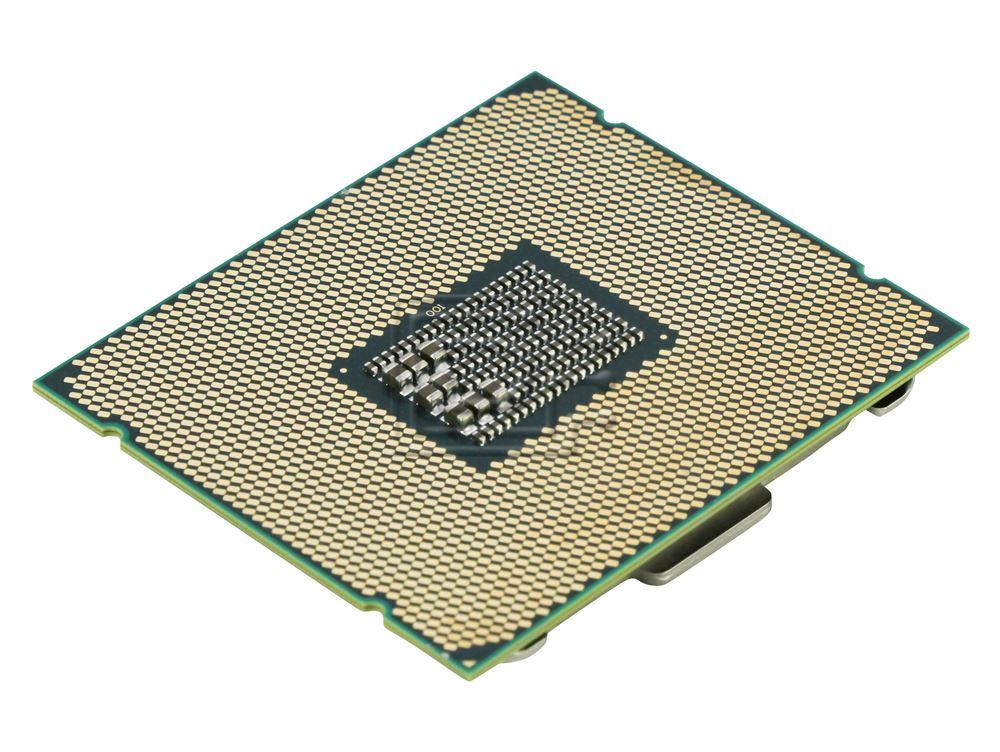

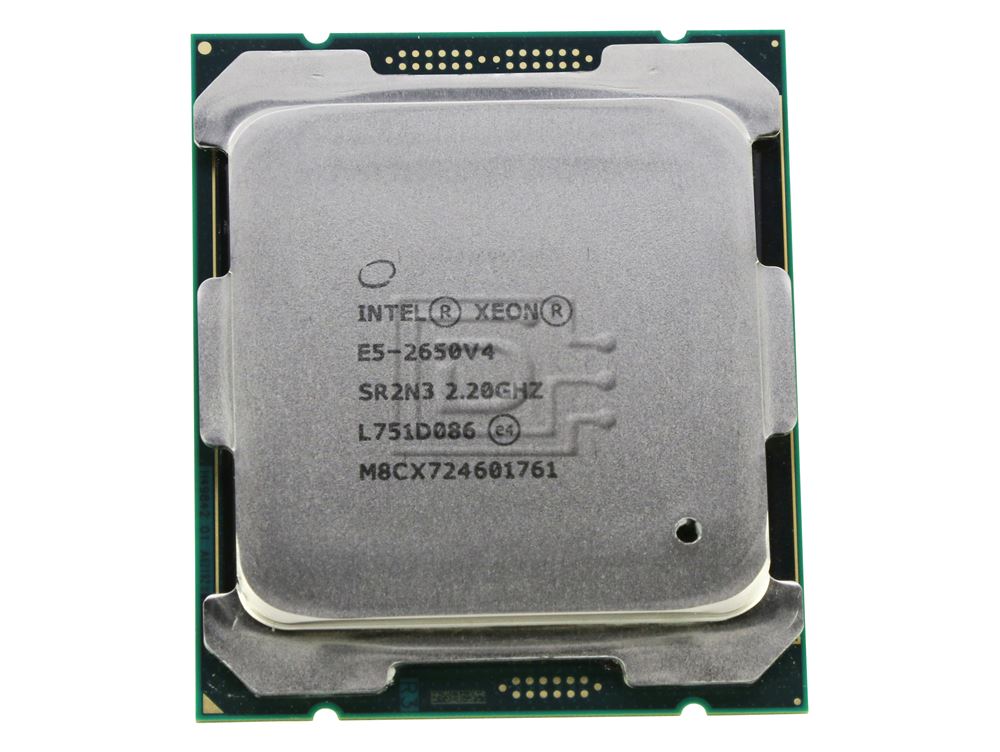

Intel Xeon E5-2650V4 / SR2N3 / CM8066002031103 2.2 GHz 12-Core 30MB FCLGA2011-3 CPU Processor - New Pull
Intel Xeon E5-2650V4 / SR2N3 / CM8066002031103 2.2 GHz 12-Core 30MB Cache FCLGA2011-3 Socket CPU Processor - New Pull
Compatibility:
Compatible with servers including, but not limited to..
- Dell PowerEdge R430 / T430
- Dell PowerEdge R530
- Dell PowerEdge R630 / T630
- Dell PowerEdge R730 / R730XD
| Server System R1304BB4DC | Server System MCB2224THY1 | Server System VRN2224THY2 | Server System VRN2224THY4 |
| Server System R1208WT2GSR | Server System R1208WTTGSR | Server System R1304WT2GSR | Server System R1304WTTGSR |
| Server System R2208WTTYSR | Server System R2208WT2YSR | Server System R2208WTTYC1R | Server System R2308WTTYSR |
| Server System R2312WTTYSR | Server System R2224WTTYSR | Server System S2600CW2R | Server System S2600CW2SR |
| Server System S2600CWTR | Server System S2600CWTSR | Server System S2600KPR | Server Board S2600KPFR |
| Server Board S2600KPTR | Server Board S2600TPFR | Server Board S2600TPNR | Server Board S2600TPR |
| Server Board S2600WTTR | Server Board S2600WT2R | Server Board S2600WTTS1R |
| ESSENTIALS | |
|---|---|
| Product Collection | Intel® Xeon® Processor E5 v4 Family |
| Code Name | Products formerly Broadwell |
| Vertical Segment | Server |
| Processor Number | E5-2650V4 |
| Lithography | 14 nm |
| PERFORMANCE | |
| Number of Cores | 12 |
| Number of Threads | 24 |
| Processor Base Frequency | 2.20 GHz |
| Max Turbo Frequency | 2.90 GHz |
| Cache | 30MB SmartCache |
| Bus Speed | 9.6 GT/s QPI |
| TDP | 105 W |
| Number of QPI Links | 2 |
| SUPPLEMENTAL INFORMATION | |
| Embedded Options Available | Yes |
| MEMORY SPECIFICATIONS | |
| Max Memory Size (dependent on memory type) | 1500GB / 1.5TB |
| Memory Types | DDR4 1600 / 1866 / 2133 / 2400 |
| Max Number of Memory Channels | 4 |
| Max Memory Bandwidth | 76.8 GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported | Yes |
| EXPANSION OPTIONS | |
| Scalability | 2S |
| PCI Express Revision | 3.0 |
| PCI Express Configurations | x4, x8, x16 |
| Max Number of PCI Express Lanes | 40 |
| PACKAGE SPECIFICATIONS | |
| Sockets Supported | FCLGA2011-3 |
| Max CPU Configuration | 2 |
| TCase | 80°C |
| Package Size | 45mm x 52.5mm |
| ADVANCED TECHNOLOGIES | |
| Intel Turbo Boost Technologies | 2.0 |
| Intel Hyper-Threading Technology | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel AVX2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel Identity Protection Technology | No |
| SECURITY & RELIABILITY | |
| Intel vPro® Platform Technology | Yes |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: E5-2650-V4 SR2N3 CM8066002031103 BX80660E52650V4 338-BJDW
Weight: 1 lb
Warranty: 2 Month DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
2 Month DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
