INTEL Part #/MPN: E5-2660V3
DiscTech Item #: INT-E5-2660V3-RF-2M
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:2 Month DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:6Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Socket FCLGA1356
Electrical Interface: Clock 2.5 GHz
On-Board Cache: 25MB

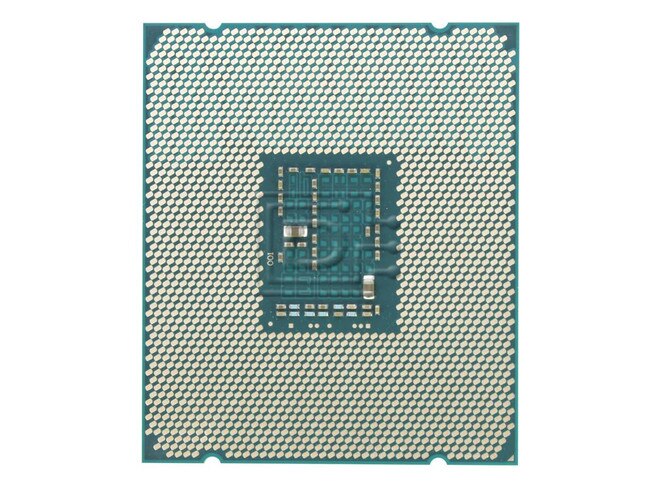

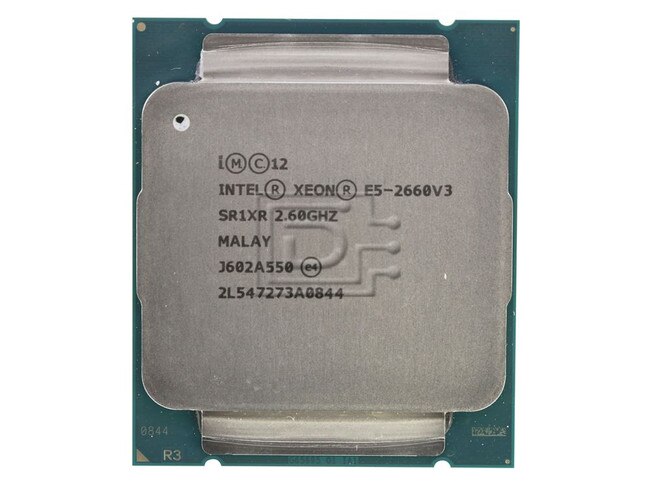

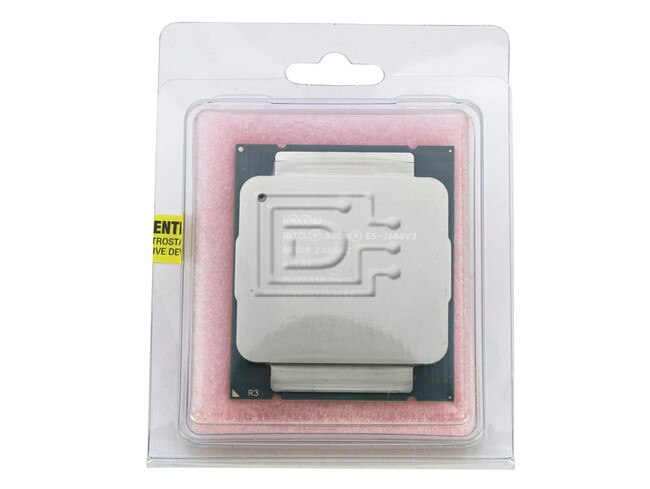

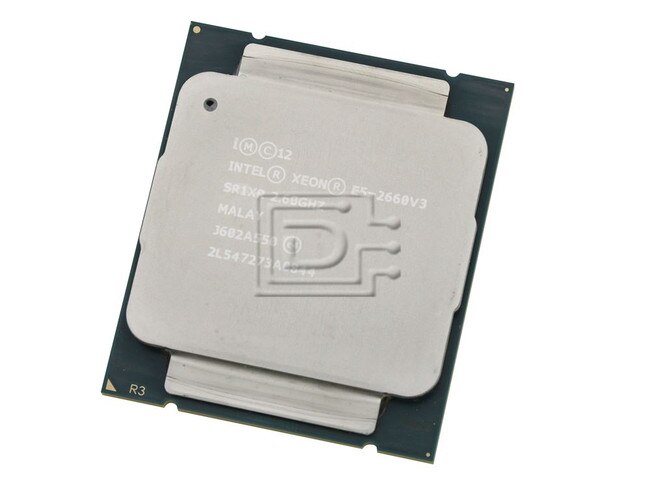

Intel Xeon E5-2660 V3 / SR1XR 2.6GHz 10-Core Processor 25MB FCLGA2011-v3 Socket CPU - Refurbished
Intel Xeon E5-2660 V3 / SR1XR 2.6GHz 10-Core Processor 25MB FCLGA2011-v3 Socket CPU - Refurbished
Compatibility:
Compatible with servers including, but not limited to..
- Dell PowerEdge R430 / T430
- Dell PowerEdge R530
- Dell PowerEdge R630 / T630
- Dell PowerEdge R730 / R730XD
| Server System R1304BB4DC | Server System MCB2224THY1 | Server System VRN2224THY2 | Server System VRN2224THY4 |
| Server System R1208WT2GSR | Server System R1208WTTGSR | Server System R1304WT2GSR | Server System R1304WTTGSR |
| Server System R2208WTTYSR | Server System R2208WT2YSR | Server System R2208WTTYC1R | Server System R2308WTTYSR |
| Server System R2312WTTYSR | Server System R2224WTTYSR | Server System S2600CW2R | Server System S2600CW2SR |
| Server System S2600CWTR | Server System S2600CWTSR | Server System S2600KPR | Server Board S2600KPFR |
| Server Board S2600KPTR | Server Board S2600TPFR | Server Board S2600TPNR | Server Board S2600TPR |
| Server Board S2600WTTR | Server Board S2600WT2R | Server Board S2600WTTS1R |
| ESSENTIALS | |
|---|---|
| Product Collection | Intel® Xeon® Processor E5 v3 Family |
| Code Name | Products formerly Broadwell |
| Vertical Segment | Server |
| Processor Number | E5-2637V4 |
| Lithography | 22 nm |
| PERFORMANCE | |
| Number of Cores | 10 |
| Number of Threads | 20 |
| Processor Base Frequency | 2.60 GHz |
| Max Turbo Frequency | 3.30 GHz |
| Cache | 15MB SmartCache |
| Bus Speed | 9.6 GT/s QPI |
| TDP | 105 W |
| Number of QPI Links | 2 |
| SUPPLEMENTAL INFORMATION | |
| Embedded Options Available | No |
| MEMORY SPECIFICATIONS | |
| Max Memory Size (dependent on memory type) | 768GB |
| Memory Types | DDR4 1600 / 1866 / 2133 |
| Max Number of Memory Channels | 4 |
| Max Memory Bandwidth | 68GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported | Yes |
| EXPANSION OPTIONS | |
| Scalability | 2S |
| PCI Express Revision | 3.0 |
| PCI Express Configurations | x4, x8, x16 |
| Max Number of PCI Express Lanes | 40 |
| PACKAGE SPECIFICATIONS | |
| Sockets Supported | FCLGA2011-3 |
| Max CPU Configuration | 2 |
| TCase | 76.7°C |
| Package Size | 52.5mm x 45mm |
| ADVANCED TECHNOLOGIES | |
| Intel Turbo Boost Technologies | 2.0 |
| Intel Hyper-Threading Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® TSX-NI | No |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel AVX2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel Identity Protection Technology | No |
| SECURITY & RELIABILITY | |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: E5-2660-V3 SR1XR
Weight: 1 lb
Warranty: 2 Month DiscTech
