Intel Xeon E5-2683 V4 2.1GHz Processor CPU

- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 2 Month DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
Interface Types: | Socket FCLGA2011 |
Electrical Interface: | Clock 2.1 - 2.19 GHz |
Description

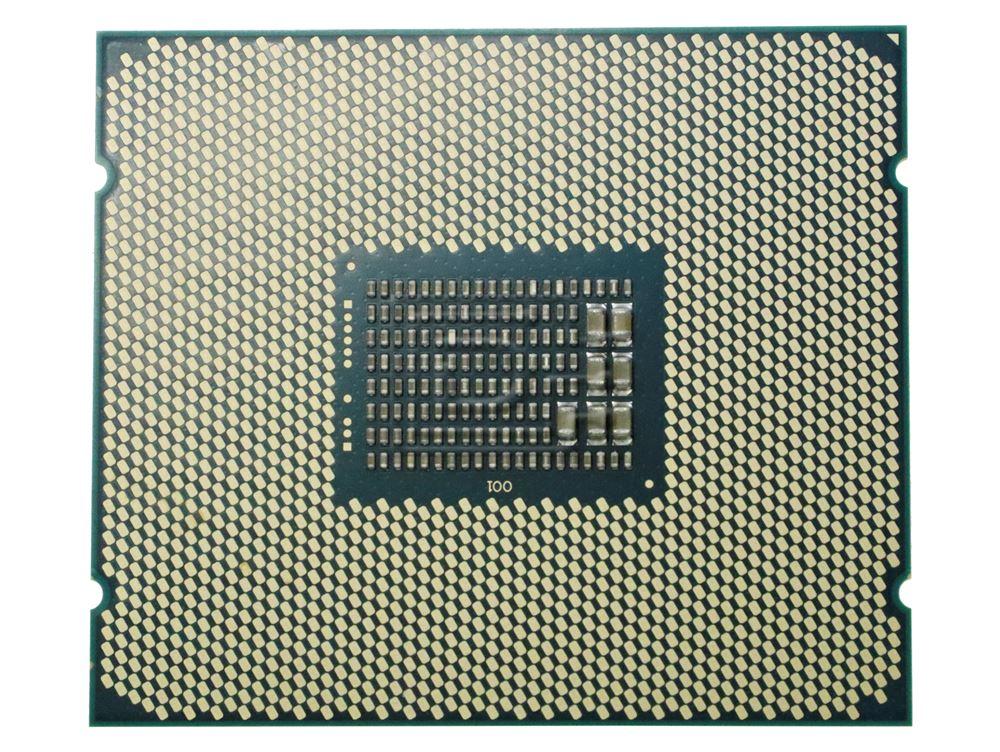

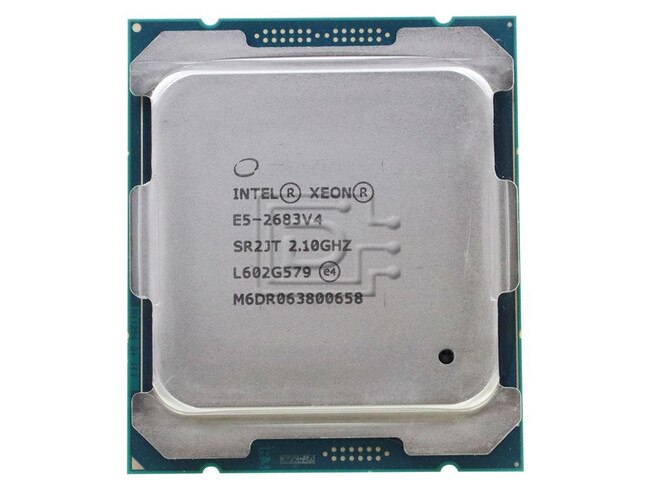

Intel Xeon E5-2683 V4 / SR2JT 2.1GHz 16-Core Processor 40MB FCLGA2011-v3 Socket CPU - New Pull
Intel Xeon E5-2683 V4 / SR2JT 2.1GHz 16-Core Processor 40MB FCLGA2011-v3 Socket CPU - New Pull
DPN: 8N7JM 08N7JM 338-BJDD 338-BJDF
Compatibility:
Compatible with servers including, but not limited to..
- Dell PowerEdge R430 / T430
- Dell PowerEdge R530
- Dell PowerEdge R630 / T630
- Dell PowerEdge R730 / R730XD
Server System R1304BB4DC | Server System MCB2224THY1 | Server System VRN2224THY2 | Server System VRN2224THY4 |
Server System R1208WT2GSR | Server System R1208WTTGSR | Server System R1304WT2GSR | Server System R1304WTTGSR |
Server System R2208WTTYSR | Server System R2208WT2YSR | Server System R2208WTTYC1R | Server System R2308WTTYSR |
Server System R2312WTTYSR | Server System R2224WTTYSR | Server System S2600CW2R | Server System S2600CW2SR |
Server System S2600CWTR | Server System S2600CWTSR | Server System S2600KPR | Server Board S2600KPFR |
Server Board S2600KPTR | Server Board S2600TPFR | Server Board S2600TPNR | Server Board S2600TPR |
Server Board S2600WTTR | Server Board S2600WT2R | Server Board S2600WTTS1R |
Specifications
ESSENTIALS | |
---|---|
Product Collection | Intel® Xeon® Processor E5 v4 Family |
Code Name | Products formerly Broadwell |
Vertical Segment | Server |
Processor Number | E5-2683V4 |
Lithography | 14 nm |
PERFORMANCE | |
Number of Cores | 16 |
Number of Threads | 32 |
Processor Base Frequency | 2.10 GHz |
Max Turbo Frequency | 3.40 GHz |
Cache | 40MB SmartCache |
Bus Speed | 9.6 GT/s QPI |
TDP | 120 W |
Number of QPI Links | 2 |
SUPPLEMENTAL INFORMATION | |
Embedded Options Available | No |
MEMORY SPECIFICATIONS | |
Max Memory Size (dependent on memory type) | 1.5TB |
Memory Types | DDR4 1600 / 1866 / 2133 / 2400 |
Max Number of Memory Channels | 4 |
Max Memory Bandwidth | 76.8GB/s |
Physical Address Extensions | 46-bit |
ECC Memory Supported | Yes |
EXPANSION OPTIONS | |
Scalability | 2S |
PCI Express Revision | 3.0 |
PCI Express Configurations | x4, x8, x16 |
Max Number of PCI Express Lanes | 40 |
PACKAGE SPECIFICATIONS | |
Sockets Supported | FCLGA2011-3 |
Max CPU Configuration | 2 |
TCase | 74.3°C |
Package Size | 52.5mm x 45mm |
ADVANCED TECHNOLOGIES | |
Intel Turbo Boost Technologies | 2.0 |
Intel Hyper-Threading Technology | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel® TSX-NI | Yes |
Intel 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel AVX2 |
Enhanced Intel SpeedStep Technology | Yes |
Intel® Demand Based Switching | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Flex Memory Access | No |
Intel Identity Protection Technology | No |
SECURITY & RELIABILITY | |
Intel AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Trusted Execution Technology | Yes |
Execute Disable Bit | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: E5-2683-V4 8N7JM 08N7JM 338-BJDD 338-BJDF SR2JT
Weight: 1 lb
Warranty: 2 Month DiscTech
Condition
New Pull
Warranty
2 Month DiscTech Warranty
