Intel Xeon E5-2690V4 / SR2N2 2.6 GHz 35MB 14-Core FCLGA2011-3 Socket CPU Processor

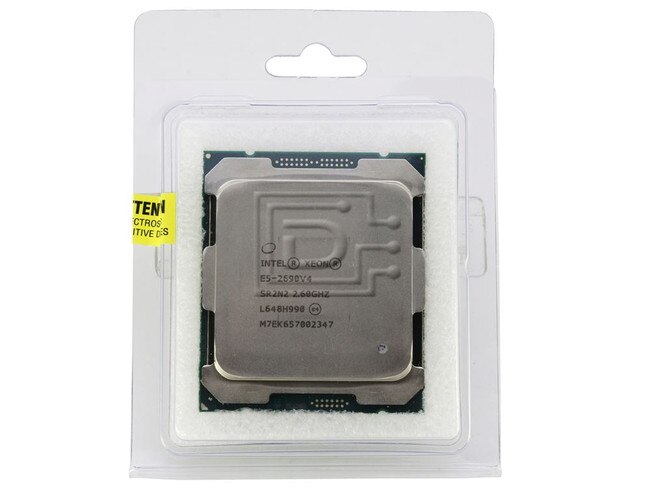

INTEL E5-2690V4 SR2N2 Intel Xeon Processor CPU Image 1 image
  • Refurbished
    Condition Levels Explained

    These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 2 Month DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$399.00

Interface Types:Socket FCLGA2011
Electrical Interface:Clock 2.6 GHz
RAM:25MB

Description

Intel Xeon E5-2690V4 / SR2N2 2.6 GHz 14-Core 35MB Cache FCLGA2011-3 Socket CPU Processor - Refurbished

Intel Xeon E5-2690V4 / SR2N2 2.6 GHz 14-Core 35MB Cache FCLGA2011-3 Socket CPU Processor - Refurbished

Alt P/Ns: E5-2690 V4 / SR2N2

Compatibility:

Compatible with servers including, but not limited to..

  • Dell PowerEdge R430 / T430
  • Dell PowerEdge R530
  • Dell PowerEdge R630 / T630
  • Dell PowerEdge R730 / R730XD

Server System R1304BB4DCServer System MCB2224THY1Server System VRN2224THY2Server System VRN2224THY4
Server System R1208WT2GSRServer System R1208WTTGSRServer System R1304WT2GSRServer System R1304WTTGSR
Server System R2208WTTYSRServer System R2208WT2YSRServer System R2208WTTYC1RServer System R2308WTTYSR
Server System R2312WTTYSRServer System R2224WTTYSRServer System S2600CW2RServer System S2600CW2SR
Server System S2600CWTRServer System S2600CWTSRServer System S2600KPRServer Board S2600KPFR
Server Board S2600KPTRServer Board S2600TPFRServer Board S2600TPNRServer Board S2600TPR
Server Board S2600WTTRServer Board S2600WT2RServer Board S2600WTTS1R

Specifications

ESSENTIALS
Product CollectionIntel® Xeon® Processor E5 v4 Family
Code NameProducts formerly Broadwell
Vertical SegmentServer
Processor Number
E5-2690V4
Lithography14 nm
PERFORMANCE
Number of Cores14
Number of Threads28
Processor Base Frequency2.60 GHz
Max Turbo Frequency3.50 GHz
Cache35MB SmartCache
Bus Speed9.6 GT/s QPI
TDP135 W
Number of QPI Links2


SUPPLEMENTAL INFORMATION
Embedded Options AvailableNo
MEMORY SPECIFICATIONS
Max Memory Size (dependent on memory type)1.5TB
Memory TypesDDR4 1600 / 1866 / 2133/2400
Max Number of Memory Channels4
Max Memory Bandwidth76.8GB/s
Physical Address Extensions46-bit
ECC Memory SupportedYes
EXPANSION OPTIONS
Scalability2S
PCI Express Revision3.0
PCI Express Configurationsx4, x8, x16
Max Number of PCI Express Lanes40
PACKAGE SPECIFICATIONS
Sockets SupportedFCLGA2011-3
Max CPU Configuration2
TCase89°C
Package Size52.5mm x 45mm
ADVANCED TECHNOLOGIES
Intel Turbo Boost Technologies2.0
Intel Hyper-Threading TechnologyYes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® TSX-NINo
Intel 64Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel AVX2
Enhanced Intel SpeedStep TechnologyYes
Intel® Demand Based SwitchingYes
Thermal Monitoring TechnologiesYes
Intel® Flex Memory AccessNo
Intel Identity Protection TechnologyNo
SECURITY & RELIABILITY
Intel AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Trusted Execution TechnologyYes
Execute Disable BitYes
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SR2N2

Weight: 1 lb

Warranty: 2 Month DiscTech

Condition

Refurbished

Warranty

2 Month DiscTech Warranty
