INTEL Part #/MPN: E5-2698V4
DiscTech Item #: INT-E5-2698v4-NP-2M
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:2 Month DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:18Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: Socket FCLGA2011
Electrical Interface: Clock 2.2 GHz
On-Board Cache: 50MB
Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630

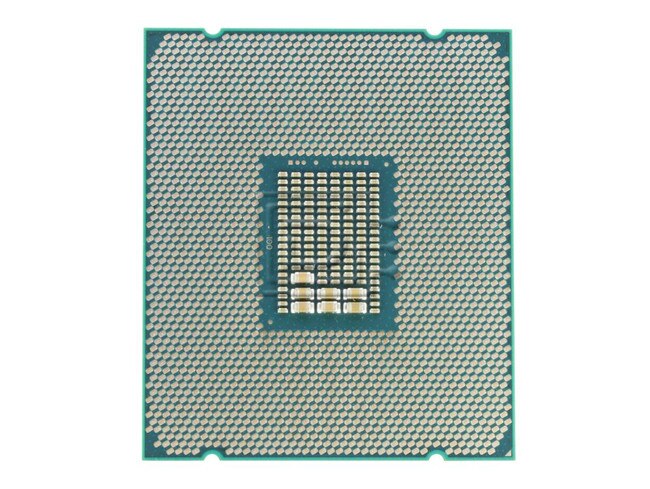

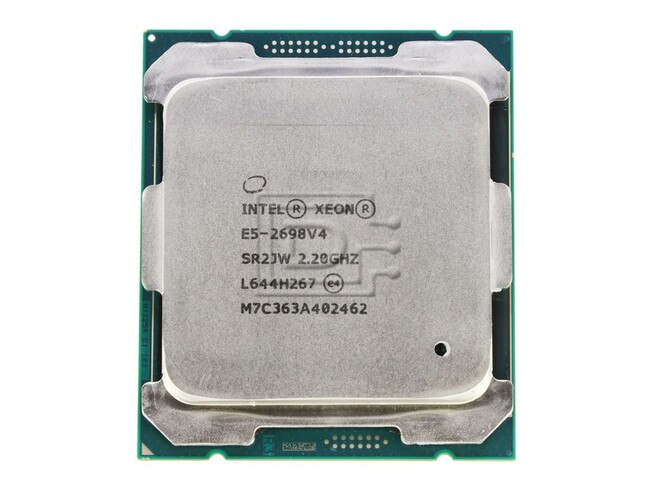

Intel Xeon E5-2698V4 / SR2JW 2.2GHz 20-Core Processor 50MB FCLGA2011-3 Socket CPU - New Pull
Intel Xeon E5-2698V4 2.2GHz 20-Core Processor 50MB FCLGA2011-3 Socket CPU - New Pull
Alt P/Ns: E5-2698 V4 / SR2JW
Compatibility:
Compatible with servers including, but not limited to..
- Dell PowerEdge R430 / T430
- Dell PowerEdge R530
- Dell PowerEdge R630 / T630
- Dell PowerEdge R730 / R730XD
| Server System R1304BB4DC | Server System MCB2224THY1 | Server System VRN2224THY2 | Server System VRN2224THY4 |
| Server System R1208WT2GSR | Server System R1208WTTGSR | Server System R1304WT2GSR | Server System R1304WTTGSR |
| Server System R2208WTTYSR | Server System R2208WT2YSR | Server System R2208WTTYC1R | Server System R2308WTTYSR |
| Server System R2312WTTYSR | Server System R2224WTTYSR | Server System S2600CW2R | Server System S2600CW2SR |
| Server System S2600CWTR | Server System S2600CWTSR | Server System S2600KPR | Server Board S2600KPFR |
| Server Board S2600KPTR | Server Board S2600TPFR | Server Board S2600TPNR | Server Board S2600TPR |
| Server Board S2600WTTR | Server Board S2600WT2R | Server Board S2600WTTS1R |
Specifications
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SR2JW
Weight: 1 lb
Warranty: 2 Month DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
2 Month DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Essentials | |
| Product Collection | Intel® Xeon® Processor E5 v4 Family |
| Vertical Segment | Server |
| Processor Number | E5-2698V4 |
| Status | Launched |
| Launch Date | Q1'16 |
| Lithography | 14 nm |
| CPU Specifications | |
| Total Cores | 20 |
| Total Threads | 40 |
| Max Turbo Frequency | 3.60 GHz |
| Intel® Turbo Boost Technology 2.0 Frequency | 3.60 GHz |
| Processor Base Frequency | 2.20 GHz |
| Cache | 50 MB Intel® Smart Cache |
| Bus Speed | 9.6 GT/s |
| # of QPI Links | 2 |
| TDP | 135 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Available | 1.5 TB |
| Memory Types | DDR4 1600/1866/2133/2400 |
| Max # of Memory Channels | 4 |
| Max Memory Bandwidth | 76.8 GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported | Yes |
| Expansion Options | |
| Scalability | 25 |
| PCI Express Revision | 3.0 |
| PCI Express Configurations | x4, x8, x16 |
| Max # of PCI Express Lanes | 40 |
| Package Specifications | |
| Sockets Supported | FCLGA2011-3 |
| Max CPU Configuration | 2 |
| TCASE | 90°C |
| Package Size | 45mm x 52.5mm |
| Advanced Technologies | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro® Platform Eligibility | Yes |
| Intel® Hyper-Threading Technology | Yes |
| Intel® Virtualization Technology | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel® Identity Protection Technology | No |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
