INTEL Part #/MPN: 4114
DiscTech Item #: INT-4114-NP-2M
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:2 Month DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 3-5 business daysSpecial Order - Ships in 3-5 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Interface Types: Socket FCLGA3647
Electrical Interface: Clock 2.2 GHz
On-Board Cache: 13.75MB

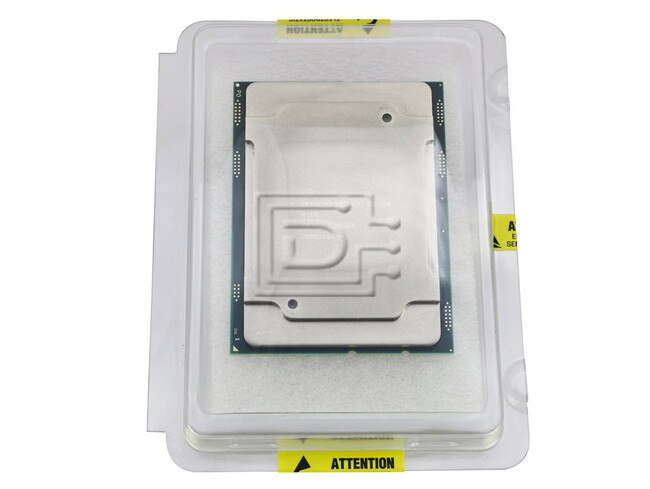

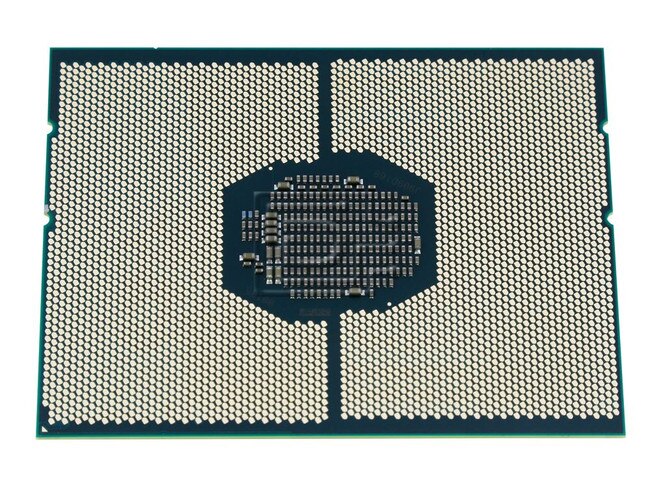

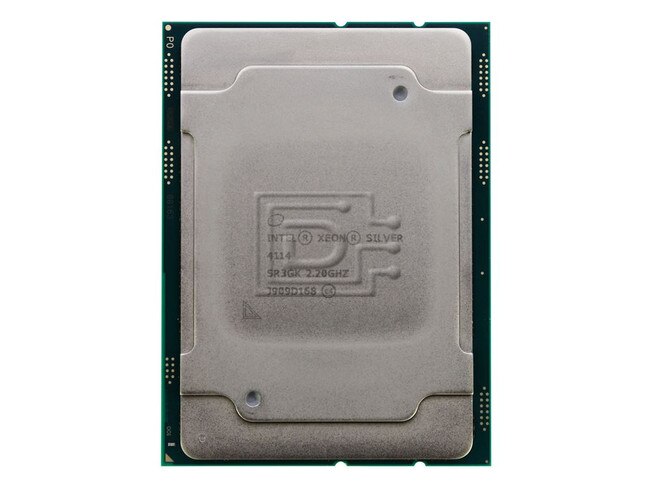

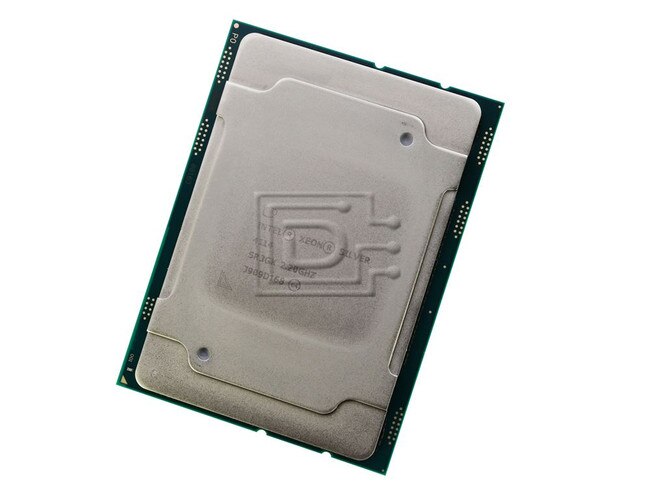

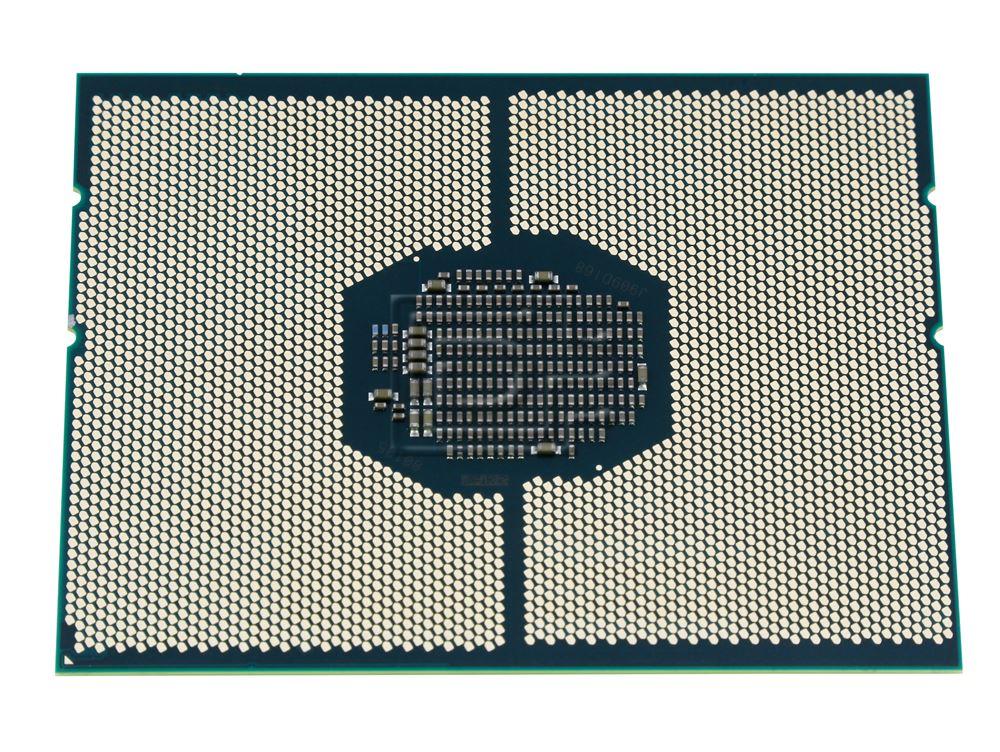

Intel Xeon Silver 4114 / SR3GK 2.2GHz / 3.0GHz Turbo, 10-Core / 20-Thread Processor 13.75MB L3 Cache, FCLGA3647 Socket CPU - New Pull
Intel Xeon Silver 4114 / SR3GK 2.2GHz / 3.0GHz Turbo, 10-Core / 20-Thread Processor 13.75MB L3 Cache, FCLGA3647 Socket CPU - New Pull
DPN: PVGWV / 0PVGWV / 374-BBST / C6RY1 / 0C6RY1
Compatibility:
Compatible with servers including, but not limited to..
- Dell PowerEdge R440 / T440
- Dell PowerEdge R540
- Dell PowerEdge R640 / T640
- Dell PowerEdge R740 / R740XD
| ESSENTIALS | |
|---|---|
| Product Collection | Intel® Xeon® Scalable Processor |
| Code Name | Products formerly Skylake |
| Vertical Segment | Server |
| Processor Number | 4114 |
| Lithography | 14 nm |
| PERFORMANCE | |
| Number of Cores | 10 |
| Number of Threads | 20 |
| Processor Base Frequency | 2.20 GHz |
| Max Turbo Frequency | 3.0 GHz |
| Cache | 13.75MB L3 Cache |
| TDP | 85W |
| Number of QPI Links | 2 |
| SUPPLEMENTAL INFORMATION | |
| Embedded Options Available | No |
| MEMORY SPECIFICATIONS | |
| Max Memory Size (dependent on memory type) | 768GB |
| Memory Types | DDR4-2400 |
| Max Number of Memory Channels | 6 |
| ECC Memory Supported | Yes |
| EXPANSION OPTIONS | |
| Scalability | 2S |
| PCI Express Revision | 3.0 |
| PCI Express Configurations | x4, x8, x16 |
| Max Number of PCI Express Lanes | 48 |
| PACKAGE SPECIFICATIONS | |
| Sockets Supported | FCLGA3647 |
| Max CPU Configuration | 2 |
| TCase | 78°C |
| Package Size | 76mm x 56.5mm |
| ADVANCED TECHNOLOGIES | |
| Intel Turbo Boost Technologies | 2.0 |
| Intel Hyper-Threading Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSI | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel Identity Protection Technology | No |
| SECURITY & RELIABILITY | |
| Intel AES New Instructions | Yes |
| Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: C6RY1 0C6RY1 PVGWV 0PVGWV 374-BBST SR3GK
Weight: 1 lb
Warranty: 2 Month DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
2 Month DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
