INTEL Part #/MPN: i5-3470
DiscTech Item #: INT-i5-3470-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Socket FCLGA1356
Electrical Interface: Clock 3.2 GHz

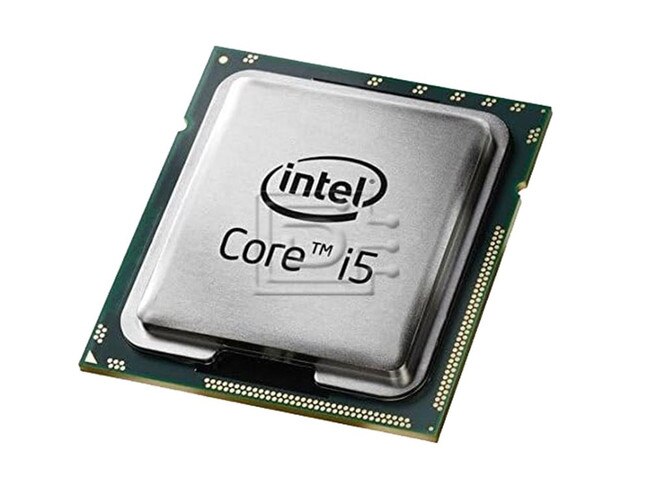

Intel Core i5-3470 SR0T8 Quad-Core 6MB SmartCache 3.20 Ghz LGA 1155 6MB Processor - New Pull
Intel Core i5-3470 SR0T8 Quad-Core 6MB SmartCache 3.20 Ghz LGA 1155 6MB Processor - New Pull
Supported Socket: FCLGA1155
The Desktop 3rd Generation Intel® Core™ processor family, Desktop Intel® Pentium® processor family, and Desktop Intel® Celeron® processor family are the next generation of 64-bit, multi-core processors built on 22-nanometer process technology. The processors are designed for a two-chip platform. The two-chip platform consists of a processor and a Platform Controller Hub (PCH) and enables higher performance, lower cost, easier validation, and improved x-y footprint. The processor includes an Integrated Display Engine, Processor Graphics, PCI Express ports, and an Integrated Memory Controller. The processor is designed for desktop platforms. The processor offers either 6 or 16 graphic execution units (EUs). The number of EU engines supported may vary between processor SKUs. The processor is offered in an 1155-land LGA package.
Processor Feature Details
• Four or two execution cores
• A 32-KB instruction and 32-KB data first-level cache (L1) for each core
• A 256-KB shared instruction / data second-level cache (L2) for each core
• Up to 8-MB shared instruction / data third-level cache (L3), shared among all cores
Supported Technologies
• Intel® Virtualization Technology (Intel® VT) for Directed I/O (Intel® VT-d)
• Intel® Virtualization Technology (Intel® VT) for IA-32, Intel® 64 and Intel® Architecture (Intel® VT-x) Intel® Active Management Technology (Intel® AMT) 8.0
• Intel® Trusted Execution Technology (Intel® TXT)
• Intel® Streaming SIMD Extensions 4.1 (Intel® SSE4.1)
• Intel® Streaming SIMD Extensions 4.2 (Intel® SSE4.2)
• Intel® Hyper-Threading Technology (Intel® HT Technology)
• Intel® 64 Architecture
• Execute Disable Bit
• Intel® Turbo Boost Technology
• Intel® Advanced Vector Extensions (Intel® AVX)
• Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI)
• PCLMULQDQ Instruction
• RDRAND instruction for random number generation
• SMEP – Supervisor Mode Execution Protection
• PAIR – Power Aware Interrupt Routing
Compatibility:
| Server System R1304BB4DC | Server System R1208BB4DC | Server System R1208BB4GS9 | Server System R1304BB4GS9 |
| Server System R1304SP2SFBN | Server System R1304SP2SHBN | Server System R1304SP4SHOC | Server System R2000BB4GS9 |
| Server System R2208BB4GC | Server System R2208BB4GS9 | Server System R2216BB4GC | Server System R2224BB4GCSAS |
| Server System R2308BB4GC | Server System R2312BB4GS9td> | Server System R2308SC2SHDR | Server System R2308SC2SHFN |
| Server System R2312SC2SHGR | Server System P4304SC2SHDR | Server System P4308SC2MHGC | Server Board S1400FP2 |
| Server Board S1400FP4 | Server Board S1400SP2 | Server Board S1400SP4 | Server Board S2400BB4 |
| Server Board S2400EP2 | Server Board S2400EP4 | Server Board S2400LP | Server Board S2400SC2 |
| ESSENTIALS | |
|---|---|
| Product Collection | Legacy Intel® Core™ Processors |
| Code Name | Products formerly Ivy Bridge EN |
| Vertical Segment | Desktop |
| Processor Number | i5-3470 |
| Lithography | 22 nm |
| PERFORMANCE | |
| Number of Cores | 4 |
| Number of Threads | 4 |
| Processor Base Frequency | 3.20 GHz |
| Max Turbo Frequency | 3.60 GHz |
| Cache | 6 MB SmartCache |
| Bus Speed | 5 GT/s QPI |
| TDP | 77 W |
| SUPPLEMENTAL INFORMATION | |
| Embedded Options Available | No |
| PROCESSOR GRAPHICS | |
| Processor Graphics | Intel® HD Graphics 2500 |
| Graphics Base Frequency | 650 MHz |
| Graphics Max Dynamic Frequency | 1.10 GHz |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Flexible Display Interface (Intel® FDI) | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x152 |
| MEMORY SPECIFICATIONS | |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR3 1333/1600 |
| Max Number of Memory Channels | 2 |
| Max Memory Bandwidth | 25.6 GB/s |
| ECC Memory Supported | No |
| EXPANSION OPTIONS | |
| PCI Express Revision | 3.0 |
| PCI Express Configurations | up to 1x16, 2x8, 1x8 & 2x4 |
| Max Number of PCI Express Lanes | 24 |
| PACKAGE SPECIFICATIONS | |
| Sockets Supported | FCLGA1155 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | 2011D |
| TCase | 67.4°C |
| Package Size | 37.5mm x 37.5mm |
| ADVANCED TECHNOLOGIES | |
| Intel Turbo Boost Technologies | 2.0 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel Hyper-Threading Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® TSX-NI | No |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Intel Identity Protection Technology | Yes |
| SECURITY & RELIABILITY | |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SR0T8
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
