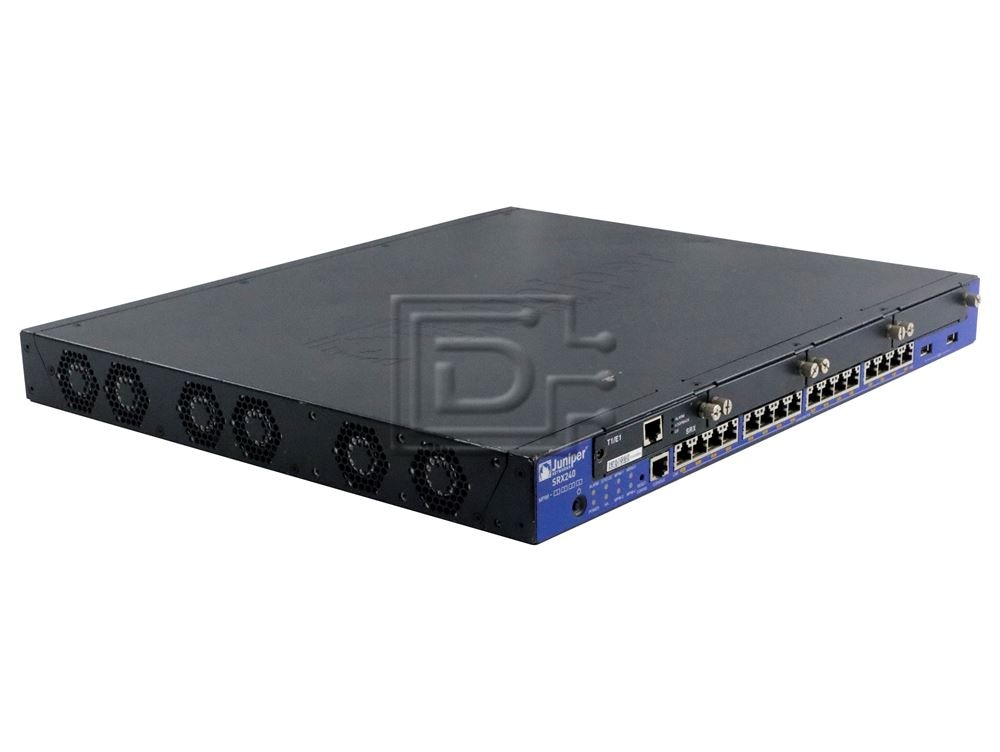

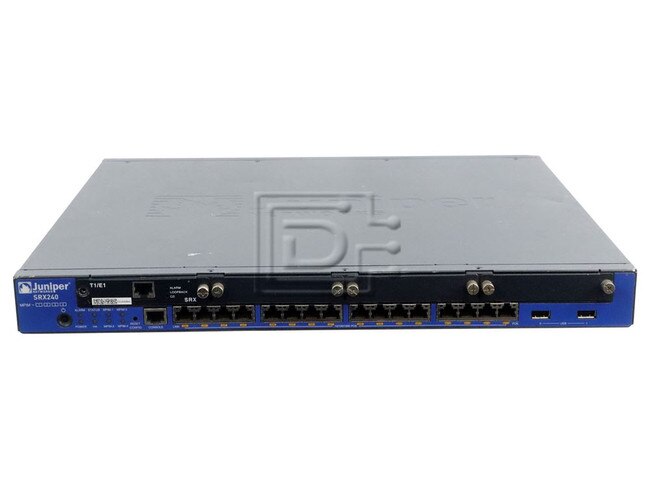

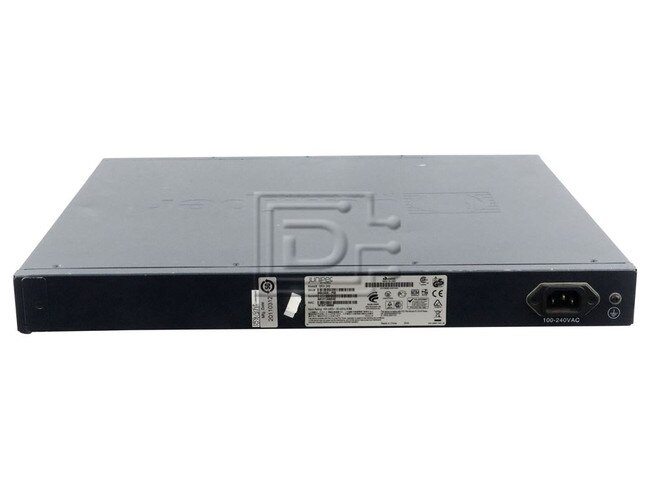

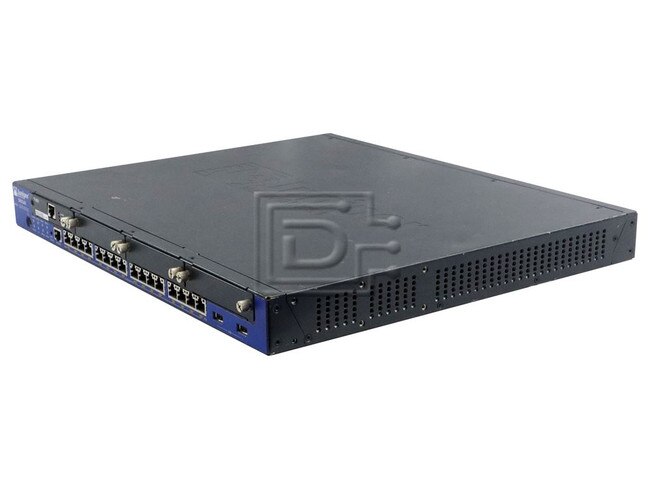

Juniper / Netscreen SRX240H-POE Secure Services Gateway

Juniper Part #/MPN: SRX240H-POE

DiscTech Item #: JUN-SRX240H-POE-RF-OE


$99.00
$99.00

Interface Types: Ethernet RJ45, Serial RS-232 DB9

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 1GB

Juniper / Netscreen SRX240H-POE Secure Services Gateway 16 x 10/100/1000 4 SFP 4 I/O expansion slots 1GB Flash with POE support - Refurbished

SRX240 Services Gateway Description

The Juniper Networks SRX240 Services Gateway offers complete functionality and flexibility for delivering secure, reliable data over IP, and provides multiple interfaces that support WAN and LAN connectivity and Power over Ethernet (PoE).

The SRX240 Services Gateway provides IP Security (IPsec), virtual private network (VPN), and firewall services for small and medium-sized companies and enterprise branch and remote offices. Additional security features include Unified Threat Management (UTM), which consists of IPS antispam, antivirus, and Web filtering.

The SRX240 Services Gateway runs the Juniper Networks Junos operating system (Junos OS).

The SRX240 Services Gateway has a modular 1U chassis that fits a 19-inch rack with a depth of approximately 17.5 in. (44.5 cm).


Compatibility: For use with Any RJ45 Networks.

Features

SRX240 Services Gateway with AC Power Supply and No PoE Support

SRX240 Services Gateway with AC Power Supply and PoE Support

SRX240 Services Gateway with DC Power Supply

DDR memory

  • For SRX240B:
    512 MB
  • For SRX240B2:
    1 GB
  • For SRX240H:
    1 GB
  • For SRX240H2:
    2 GB
  • For SRX240H-TAA:
    1 GB
  • For SRX240H2-TAA:
    2 GB
  • For SRX240H-POE:
    1 GB
  • For SRX240H2-POE:
    2 GB
  • For SRX240H-POE-TAA:
    1 GB
  • For SRX240H2-POE-TAA:
    2 GB
  • For SRX240H-DC:
    1 GB
  • For SRX240H2-DC:
    2 GB

PoE support

No

Yes

No

Power supply rating

150 watts

360 watts

190 watts

Input voltage

100 to 240 VAC

100 to 240 VAC

–48 VDC

Operating range: -40.5 V to -72 V

Gigabit Ethernet ports

16

16

16

Console ports

1

1

1

Universal Serial Bus (USB) ports

2

2

2

Mini-PIM slots

4

4

4

LEDs

Status, Alarm, HA, Power, Mini-PIMs, and Port (TX/RX/Link and PoE)

Status, Alarm, HA, Power, Mini-PIMs, and Port (TX/RX/Link and PoE)

Status, Alarm, HA, Power, Mini-PIMs, Port (TX/RX/Link and PoE), DC power feed LEDs.

Note: The PoE LED is enabled only on the PoE variant of the SRX240 Services Gateway.

Internal flash

  • For SRX240B:
    1 GB
  • For SRX240B2:
    2 GB
  • For SRX240H:
    1 GB
  • For SRX240H2:
    2 GB
  • For SRX240H-TAA:
    1 GB
  • For SRX240H2-TAA:
    2 GB
  • For SRX240H-POE:
    1 GB
  • For SRX240H2-POE:
    2 GB
  • For SRX240H-POE-TAA:
    1 GB
  • For SRX240H2-POE-TAA:
    2 GB
  • For SRX240H-DC:
    1 GB
  • For SRX240H2-DC:
    2 GB

Fans

6

6

6

Air filters

One

(Separately orderable)

None

One

NEBS-compliant

No

No

Yes

Note: An air filter is not shipped with the SRX240 Services Gateway with AC power supply models. To meet NEBS requirements, you must order the air filter separately and install it. Contact your Juniper Networks customer service representative for more information.



Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 14 lb
