JVC DLA-RS3000 / DLA-NX9 Reference Series 8K e-shift Home Theater Projector

JVC Part #/MPN: DLA-RS3000

DiscTech Item #: JVC-DLA-RS3000-BN-3Y


Call for Project Quote

  • Integration Only - Call for Project Quote

Call for Project Quote

Interface Types: Ethernet RJ45, HDMI, Serial RS-232 DB9

Electrical Interface: HDMI 2.0 - 18Gbps

Resolution: 8192x4320

JVC DLA-RS3000 / DLA-NX9 Reference Series 8K e-shift Home Theater Projector - Brand New

JVC DLA-RS3000 / DLA-NX9 Reference Series 8K e-shift Home Theater Projector - Brand New

The DLA-RS3000 is the world's first 8K e-shift home theater projector and is capable of 8192 x 4320 image resolution. This premium, custom install projector is built with hand-selected components and features a high resolution 100mm diameter, 18-element, 16-group all glass lens with full aluminum lens barrel. Coupled with the new 0.69 inch 4K D-ILA device, the DLA-RS3000 / DLA-NX9 delivers the sharpest home theater or movie suite image available today.


  • 8K e-shift yields 8192 x 4320 projected image
  • High-definition display native 4K resolution (4096 x 2160)
  • 2,200 Lumens with High Power Lamp (PK-L2618U)
  • New 0.69 inch native 4K D-ILA devices (x3)
  • 100,000:1 native (1,000,000:1 dynamic) contrast ratio
  • 100mm all-glass lens
  • Built with hand selected components
  • Wide Color Gamut (Over 100% DCI P3)
  • Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting HDR10 Compatibility with Auto Tone Mapping
  • Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
  • Wireless transmission options for 3D viewing: RF (radio frequency)
  • THX 4K Certified (pending final approval)
  • ISF (Imaging Science Foundation) Licensed Colour Management System with 6-axis Matrix
  • Auto-Calibration Function using optional sensor probe and Software
  • Low Latency Mode improves picture, speeds operation and reduces gaming/PC frame delays
  • Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal
  • Improved Clear Motion Drive with Motion Enhance
  • Improved Multiple Pixel Control (MPC) — MPC works with 4K60P (4:4:4) signals
  • Motion Enhance technology reduces residual images and blurring
  • Two 18Gbps HDMI/HDCP 2.2 Compatible Inputs
  • New Installation Mode simplifies setup and memorizes up to 10 customizable picture preferences
  • Control: Control4 SDDP / LAN / RS-232C / IR / 12V Screen Trigger Output / 3D Sync Output
  • Note: Not supporting 8K sources!

Model NumbersDLA-RS3000
Imaging Device0.69 in D-ILA Device (4096 × 2160) ×3
8K e-shift TechnologyYes
Resolution8192 x 4320 Precision via 8K e-shift technology
Lens2X Motorized 100MM
Lens ShiftMotorized Shift±100% Vertical and ±43% Horizontal
Light SourceNSH 265W Lamp
(lamp life: approx. 4500 hours when the lamp is in Low mode)
Contrast RatioNative: 100,000:1 | Dynamic: 1,000,000:1

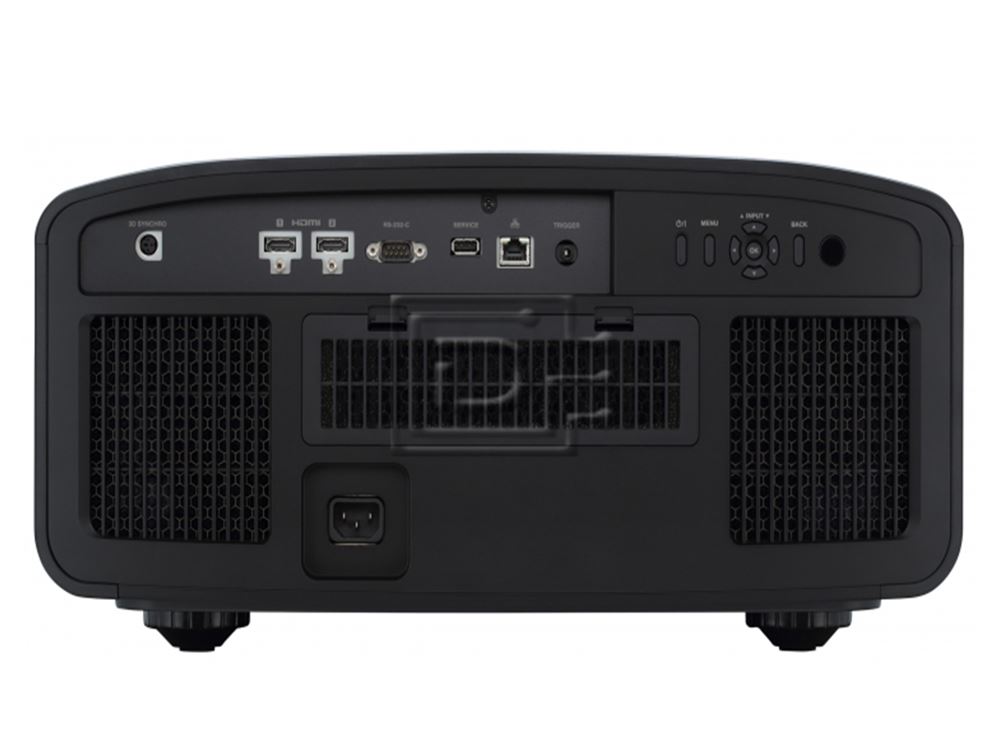

Input terminalsHDMI
  • 2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)
  • Output terminals3D Sync
  • 1 (Mini DIN 3pin)
  • Trigger
  • 1 (Mini jack, DC12V/100mA)
  • Control TerminalRS-232C
  • 1(D-sub) 9pin
  • LAN(RJ-45)
  • 1
  • Digital Video Signal480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840x2160/24Hz, 3840x2160/25Hz, 3840x2160/30Hz, 3840x2160/50Hz*, 3840x2160/60Hz* 4096x2160/24Hz, 4096x2160/25Hz, 4096x2160/30Hz, 4096x2160/50Hz*, 4096x2160/60Hz*
    3D SignalFrame Packing
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
  • Side-by-Side
  • 1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz
  • 1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz
  • Top-and-Bottom
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
  • Dimensions(WxHxD-inches)
  • 19 5/8 x 9 1/4 x 20 3/8
  • Weight (net)(lbs)48
    * When the color space is RGB/YCbCr(4:4:4), only 8-bit input is supported.
    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: DLA-NX9

    Weight: 50 lb

    Warranty: 3 Year Manufacturer
