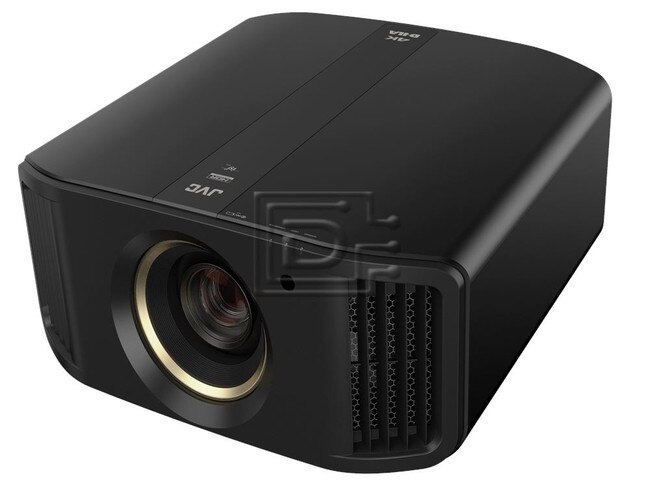

JVC DLA-RS4100 / NZ9 / 8K60p /4K120p e-shiftX Device Home Theater Projector

JVC DLA-RS4100 / NZ9 / 8K60p/4K120p e-shiftX Device Home Theater Projector - Brand New

JVC DLA-RS4100 / NZ9 / 8K60p/4K120p e-shiftX Device Home Theater Projector - Brand New

Reference Series 8K

The DLA-RS4100 D-ILA projector is the world first (as of September 2021, according to a research by JVCKENWOOD) home theater model to feature 8K/60p/4K120p input. It is equipped with a new 8K/e-shiftX proprietary technology with 4-direction shift to reproduce 8K-quality image from 4K signals. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices, high-quality 17-element, 15-group all glass 65 mm lens and Ultra-High Contrast Optics that contribute to deliver optical brightness of 2,500 lumens. BLU-Escent laser diode light source also contributes to project the high-resolution 8K image with full depth and dimensionality with longevity of up to 20,000 hours. Compatible with the latest HDR10+, the projector boasts industry leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs 2021 projector models.

• Worlds first projector to support high-resolution 8K signal input: 8K60p/4K120p
• Light source: BLU-Escent laser
• Display resolution: 8192 x 4320 (with 8K/e-shiftX)
• Input connectors: HDMI x 2 (48 Gbps/HDCP 2.3)

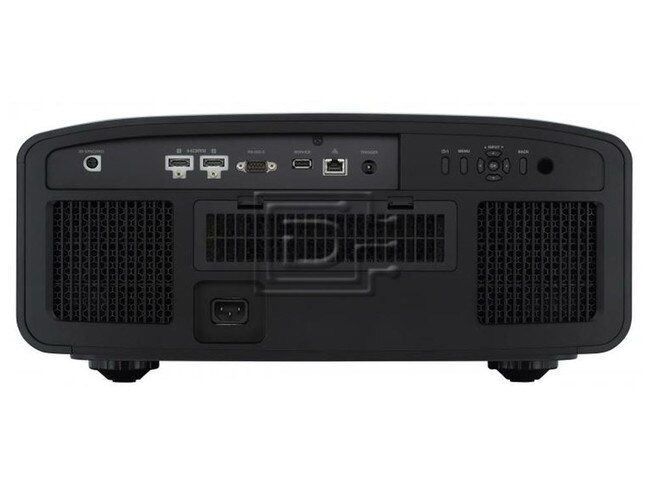

• Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
• 3D formats: Frame Packing, Side-by-Side (Half), and Top & Bottom
• JVC proprietary 8K/e-shiftX technology with 4-direction shift reproduces 8K-quality image
• 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• 17-element, 15-group all-glass 65 mm diameter high-quality lens
• Ultra-High Contrast Optics with BLU-Escent laser light source contributes for optical brightness of 2,500 lumens and longevity of 20,000 hours
• Multiple Pixel Control image processor accurately reproduces images closer to the original
• Infinity:1 Dynamic Contrast Ratio; 80,000:1 Native Contrast Ratio
• Cinema Filter (DCI-P3) creates saturated, beautiful images that come to life
• Compatible with the two dynamic tone mappings of HDR10+ content and Frame Adapt HDR with Theatre Optimizer*; together, the projector expresses HDR/HDR10+ content at optimum brightness and darkness in each scene as the creator intended.
• The projector automatically reproduces HDR10+ content based on the metadata of the producers intentions for each scene.
• Frame Adapt HDR with Theatre Optimizer performs tone mapping according to the input signal of the content, as well as the installation environment and/or usage conditions of the projector.
• Installation Mode with 10 Memories centrally manage nine settings related to installation to enjoy video best suited for each environment
• Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Setting, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
• Compensation accuracy of Clear Motion Drive improved in the periphery of objects. Added with Motion Enhance technology, the projector can reproduce much smoother moving 4K images (function disabled when inputting 4K120p signals).
• Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
• Color Management System with 6-axis Matrix
• Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including color balance, gamma characteristics, color space and color tracking
• ISF C3 (Certified Calibration Controls) mode*** to reproduce excellent picture quality optimized for specific environments.
• Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter

HDR compatibility w/Auto Tone Mapping
The DLA-RS4100 is compatible with HDR 10 for content such as UHD Blu-ray and HLG (Hybrid Log-Gamma) adopted in broadcasting. It is also equipped with a new feature, "Auto Tone Mapping" that automatically adjusts settings based on the mastering information included in HDR content. This feature enables different HDR images to be viewed optimally for specific content.

New 0.69 Native 4K D-ILA Devices (x3)
JVC's 0.69 inch native 4K D-ILA device delivers the sharpest home theater image available. The 4096 x 2160 device with 3.8µm pixel pitch exceeds 4 times HD resolution— 8.8 million pixels. With original vertical orientation technology and a planarization technique that reduces light scattering and diffraction, the device achieves a very high native contrast ratio resulting in smooth, detailed images without visible pixels even on very large screens.

An Incredible Lens Delivers 4K
The DLA-RS4100 is equipped with a 65 mm diameter lens which adopts the all-glass lens of 15 groups of 17 glasses, realizing a high-resolution image with focus up to the periphery of the screen.

A Perfect Combination for Spectacular Contrast
The new native 4K D-ILA device and optical engine with wire grid polarizers achieve a native contrast ratio greater than 80,000:1. In combination with JVC's "Intelligent Lens Aperture" which analyzes the input image and automatically controls the black level, the DLA-RS4100 is able to deliver a spectacular dynamic contrast of Infinity:1 for an immersive viewing experience.

Superior Color Performance and Contrast
The DLA-RS4100 incorporates many functions that enhance the color, brightness and contrast performance.

• High Contrast ratio combined with the high brightness are what allow the DLA-RS4100 to deliver a truly immersive high quality image experience
• Auto Calibration optimizes image quality under various installation conditions and also compensate for the changing color balance in long-term projector usage
• Vibrant and dynamic imagery comes from the ultra-high pressure mercury lamp, highly efficient optical engine, luminance of 2,500 Im and narrow pixel gap of the D-ILA device

4K Anamorphic Scaling
This projector is compatible with commercially available anamorphic lenses and ultra-wide format screens for an immersive movie theater experience. It also features a new scaling mode that is optimized for the full native 4096 x 2160 (17 x 9) resolution of the D-ILA device.

Installation Mode
The DLA-RS4100 is equipped with "Installation Mode" that saves and recalls up to 10 different installation modes for different aspect ratios, lens presets, convergence and screen masking positions.

* When the color space is RGB/YCbCr(4:4:4), only 8-bit input is supported.

Weight: 80 lb

Warranty: 3 Year Manufacturer

Brand New

3 Year Manufacturer Warranty
