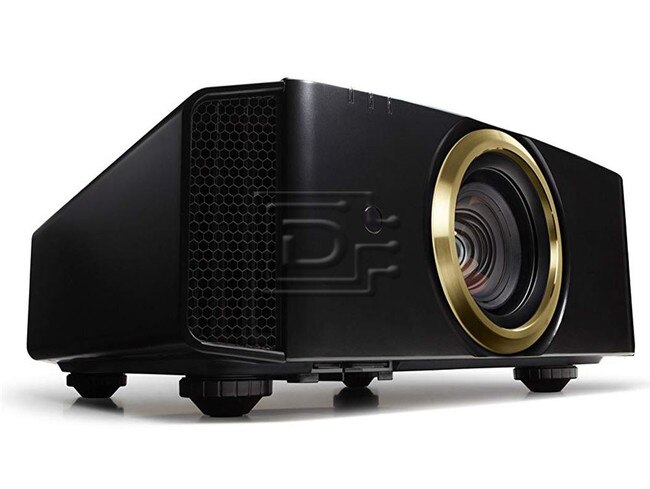

JVC DLA-RS440U REFERENCE SERIES CUSTOM INSTALL 4K D-ILA PROJECTOR

JVC Part #/MPN: DLA-RS440U

DiscTech Item #: JVC-DLA-RS440U-BN-3Y

$3,999.95

Call for Project Quote.

  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:3 Year Manufacturer
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Integration Only - Call for Project Quote
Back
$3,999.95

Call for Project Quote.

Interface Types: Ethernet RJ45, HDMI, VGA, Serial RS-232 DB9

Electrical Interface: HDMI 2.0 - 18Gbps

Resolution: 3840x2160

JVC DLA-RS440U 4K e-shift5 Reference Series D-ILA Custom Install Projector - Brand New

JVC DLA-RS440U 4K e-shift5 Reference Series D-ILA Custom Install Projector - Brand New

With 4K e-shift5, the DLA-RS440 delivers a significant improvement in picture quality vs. our previous models. JVC also upgrades UHD HDR dynamic range when using our Intelligent Aperture. Low latency mode improves picture quality, speeds operation, and delivers faster response time when gaming. Connect a 4K 60P source to one of the two18Gbps HDMI/HDCP 2.2 compatible inputs, and get ready to “wow” your audience.

  • 1800 Lumens with High Power Lamp (PK-L2615U)
  • 40,000:1 Native Contrast Ratio
  • Intelligent Lens Aperture increases dynamic contrast ratio to 400,000:1
  • Three 1920 x 1080 0.7-inch D-ILA devices
  • e-shift5 4K Precision 3840 X 2160 Projected Image
  • Two 18Gbps HDMI/HDCP 2.2 Compatible Inputs
  • Advanced HDR usability w/brighter, more detailed HDR content
  • Improved Motion Enhancement (2D, 3D, 4K) w/CMD
  • Multi Pixel Control (MPC) w/Auto Mode MPC works with 4K60P (up to 4:4:4) signals
  • Low Latency Mode improves picture, speeds operation, and reduces gaming/PC frame delays
  • 1.4:1 to 2.8:1 motorized zoom lens w/Horizontal and Vertical offset
  • Lens memory function memorizes 5 positions for focus, zoom and shift (Maintains constant height for 2.35, 1.85, 1.78 on same screen)
  • Control: Control4 SDDP / LAN / RS-232C / IR / 12V Screen Trigger Output / 3D Sync Output

REFERENCE SERIES 4K
Model NumbersDLA-RS440U
SPECIFICATIONS
Imaging Device0.7 inch Full HD D-ILA (1920 x 1080) x3
4K e-shift4 TechnologyYes
Resolution3840 x 2160 Precision via e-shift4 technology
(1920 x 1080 in 3D mode)
Lens2X Motorized Zoom & Focus, (f2)1.4 to 2.8 (f4) Throw Distance Range
Throw distance=Screen width X1.4 (Min.), Screen width X2.8 (Max.)
Lens ShiftMotorized Shift±80% Vertical and ±34% Horizontal
Light SourceNSH 265W Lamp
(lamp life: approx. 4500 hours when the lamp is in Low mode)
Contrast RatioNative: 40,000:1 | Dynamic: 400,000:1
Input terminalsHDMI
  • 2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)
    • Output terminals3D Sync
  • 1 (Mini DIN 3pin)
    • Trigger
  • 1 (Mini jack, DC12V/100mA)
    • Control TerminalRS-232C
  • 1(D-sub) 9pin)
    • LAN(RJ-45)
  • 1
    • Digital Video Signal480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840x2160/24Hz, 3840x2160/25Hz, 3840x2160/30Hz, 3840x2160/50Hz*, 3840x2160/60Hz* 4096x2160/24Hz, 4096x2160/25Hz, 4096x2160/30Hz, 4096x2160/50Hz*, 4096x2160/60Hz*
    3D SignalFrame Packing
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
    • Side-by-Side
  • 1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz, 1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz
    • Top-and-Bottom
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
    • PC Input SignalVGA 60, VGA 59.94, SVGA 60, XGA 60, WXGA 60, WXGA+ 60, SXGA 60, WSXGA+ 60, WUXGA 60
    Dimensions(WxHxD-inches)
  • 17 7/8 x 7 x 18 9/16
    • Weight (net)(lbs)34


    * When the color space is RGB/YCbCr(4:4:4), only 8-bit input is supported.
    Click here to view the manufacturer's item description/brochure

    Weight: 36 lb
