JVC Part #/MPN: DLA-RS4500K

DiscTech Item #: JVC-DLA-RS4500K-BN-3Y


Call for Project Quote.

  • Integration Only - Call for Project Quote

Call for Project Quote.

Interface Types: Ethernet RJ45, HDMI, VGA, Serial RS-232 DB9

Electrical Interface: HDMI 2.0 - 18Gbps

Resolution: 4096x2160

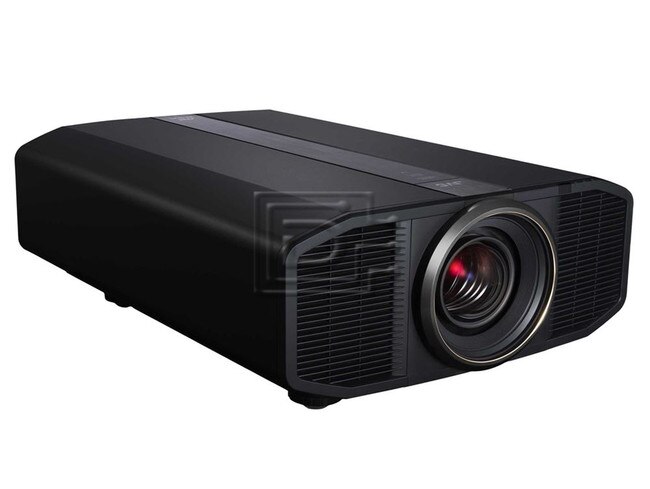

JVC DLA-RS4500K Reference Series Native 4K D-ILA Home Cinema Projector with BLU-Escent Laser Light Engine - Brand New

JVC DLA-RS4500K Reference Series Native 4K D-ILA Home Cinema Projector with BLU-Escent Laser Light Engine - Brand New>

JVC’s DLA-RS4500 native 4K projector combines JVC’s new 4096 X 2160 D-ILA devices and “BLU-Escent” Laser phosphor light source to become the worlds first THX 4K certified projector. This flagship model features HDR compatibility, a new high-resolution lens developed specically for 4K applications, and a new Cinema Filter for a wide color gamut. This projector needs to be experienced to be believed!

  • BLU-Escent (Laser Diode/Phosphor) Light Source
  • ∞ : 1 Dynamic Contrast Ratio
  • Three 0.69 inch 4K D‐ILA(4096 × 2160) Devices
  • 18 Element, 16 Group All Glass 100mm Diameter Zoom Lens
  • 4K (4096 x 2160) Projected Image
  • Two 18Gbps HDMI/HDCP 2.2 Compatible Inputs
  • THX 4K Display Certified
  • ISF (Imaging Science Foundation) Licensed
  • MPC w/Auto Mode scales HD video to 4K, and can be used to fine tune Native 4K signals (up to 4K60P 4:4:4)
  • HDR (High Dynamic Range) Compatible w/HDR10 and Hybrid Log Gamma and SMPTE 2086
  • Motion Enhance (2D, 3D, 4K) w/Upgraded Clear Motion Drive
  • Over 100% DCI P3 color space and over 80% coverage of the BT.2020 color gamut
  • 1.4 to 2.8:1 Motorized Zoom Lens w/±100% Vertical Offset and ±43% Horizontal (with 16:9 throw)
  • New Installation Function Memorizes 10 Positions for Lens, Screen & Masking Settings
  • Control: Control4 SDDP / LAN / RS-232C / IR / 12V Screen Trigger Output / 3D Sync Output

Model NumbersDLA-RS4500K
Imaging Device0.69 in D-ILA Device (4096 × 2160) ×3
Native 4KYes
Resolution4096 x 2160 D-ILA
Lens2X Motorized Zoom & Focus, 1.4 to 2.8 Throw Distance Range
Throw distance=Screen width X1.4 (Min.), Screen width X2.8 (Max.)
Lens ShiftMotorized Shift±100% Vertical and ±43% Horizontal
Light Source2nd generation “BLU-Escent” Laser Phosphor light engine (3,000 lumen light output and 20,000 hour long life illumination)
Contrast RatioDynamic: ∞:1
Input terminalsHDMI
  • 2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)
  • USB
  • For firmware updates only
  • Output terminals3D Sync
  • 1 (Mini DIN 3pin)
  • Trigger
  • 1 (Mini jack, DC12V/100mA)
  • Control TerminalRS-232C
  • 1(D-sub 9pin)
  • LAN(RJ-45)
  • 1
  • Digital Video Signal480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080P/25 Hz, 1080P/30 Hz,1080p/50 Hz, 1080p/60 Hz, 2K(2048/24,25,30,50,60), 4K(3840/24,25,30,50,60), 4K(4096/24,25,30,50,60
    3D SignalFrame Packing
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
  • Side-by-Side
  • 1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz
  • 1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz
  • Top-and-Bottom
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
  • PC Input Signal FormatHDMI
  • Dimensions(WxHxD-inches)
  • 19.69 x 9.25 x 28.35 w/o legs
  • Weight (net)(lbs)82.67

    Click here to view the manufacturer's item description/brochure

    Weight: 90 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
