JVC DLA-RS540U REFERENCE SERIES CUSTOM INSTALL 4K D-ILA PROJECTOR

JVC DLA-RS540U REFERENCE SERIES CUSTOM INSTALL 4K D-ILA PROJECTOR

$5,999.95

Interface Types:HDMI
Electrical Interface:HDMI 2.0 - 18Gbps
Resolution:3840x2160

Description

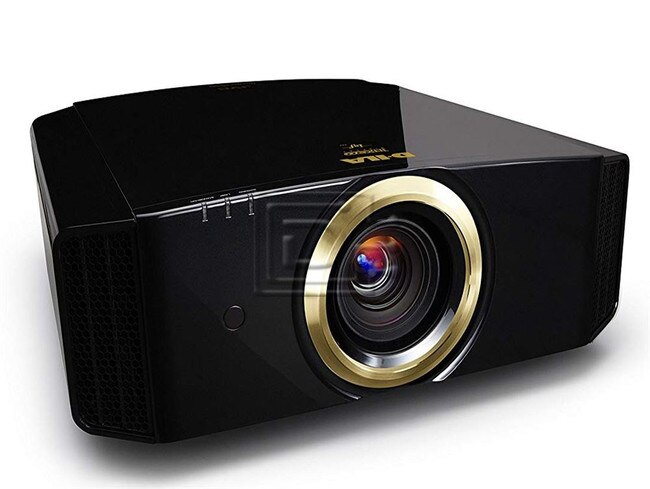

JVC DLA-RS540 Reference Series 4K e-shift5 D-ILA Custom Install Home Theater Projector - Brand New

JVC DLA-RS540 Reference Series 4K e-shift5 D-ILA Custom Install Home Theater Projector - Brand New

The DLA-RS540 is a high performance, fully-customizable home theater projector that produces exquisite quality images with class leading 130,000:1 native contrast ratio. This THX 3D and ISF certied projector features 4K e-shift5 for a signicant improvement in picture quality vs. our previous models. JVC also upgrades UHD HDR brightness and dynamic range when using our Intelligent Aperture.

  • 1900 Lumens with High Power Lamp (PK-L2615U)
  • 130,000:1 Native Contrast Ratio
  • Three 1920 x 1080 0.7-inch D-ILA devices
  • e-shift5 4K Precision 3840 X 2160 Projected Image
  • Two 18Gbps HDMI/HDCP 2.2 Compatible Inputs
  • Advanced HDR usability w/brighter, more detailed HDR content
  • THX 3D Certified
  • ISF (Imaging Science Foundation) Licensed
  • Improved Motion Enhancement (2D, 3D, 4K) w/CMD
  • Multi Pixel Control (MPC) w/Auto Mode MPC works with 4K60P (up to 4:4:4) signals
  • Low Latency Mode improves picture, speeds operation, and reduces gaming/PC frame delays
  • Digital Cinema Initiative (DCI) Color Space
  • 1.4:1 to 2.8:1 motorized zoom lens w/Horizontal and Vertical offset
  • Lens memory function memorizes 10 positions for focus, zoom and shift
  • Control: Control4 SDDP / LAN / RS-232C / IR / 12V Screen Trigger Output / 3D Sync Output

Specifications

REFERENCE SERIES 4K
Model NumbersDLA-RS540U
SPECIFICATIONS
Imaging Device0.7 inch Full HD D-ILA (1920 x 1080) x3
4K e-shift4 TechnologyYes
Resolution3840 x 2160 Precision via e-shift4 technology
(1920 x 1080 in 3D mode)
Lens2X Motorized Zoom & Focus, (f2)1.4 to 2.8 (f4) Throw Distance Range
Throw distance=Screen width X1.4 (Min.), Screen width X2.8 (Max.)
Lens ShiftMotorized Shift±80% Vertical and ±34% Horizontal
Light SourceNSH 265W Lamp
(lamp life: approx. 4500 hours when the lamp is in Low mode)
Contrast RatioNative: 160,000:1 | Dynamic: 1,600,000:1
Input terminalsHDMI
  • 2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)
  • Output terminals3D Sync
  • 1 (Mini DIN 3pin)
  • Trigger
  • 1 (Mini jack, DC12V/100mA)
  • Control TerminalRS-232C
  • 1(D-sub) 9pin)
  • LAN(RJ-45)
  • 1
  • Digital Video Signal480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840x2160/24Hz, 3840x2160/25Hz, 3840x2160/30Hz, 3840x2160/50Hz*, 3840x2160/60Hz* 4096x2160/24Hz, 4096x2160/25Hz, 4096x2160/30Hz, 4096x2160/50Hz*, 4096x2160/60Hz*
    3D SignalFrame Packing
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
  • Side-by-Side
  • 1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz
  • 1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz
  • Top-and-Bottom
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
  • PC Input SignalVGA 60, VGA 59.94, SVGA 60, XGA 60, WXGA 60, WXGA+ 60, SXGA 60, WSXGA+ 60, WUXGA 60
    Dimensions(WxHxD-inches)
  • 17 7/8 x 7 x 18 9/16
  • Weight (net)(lbs)34.4
    * When the color space is RGB/YCbCr(4:4:4), only 8-bit input is supported.
    Click here to view the manufacturer's item description/brochure

    Weight: 37 lb

    Warranty: 3 Year Manufacturer
