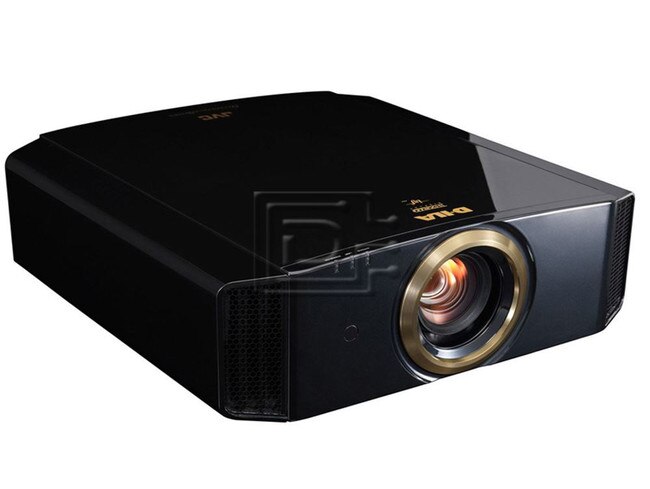

JVC DLA-RS620 REFERENCE SERIES CUSTOM INSTALL 4K D-ILA PROJECTOR

JVC Part #/MPN: DLA-RS620

DiscTech Item #: JVC-DLA-RS620-BN-3Y

$9,999.95

Call for Project Quote.

  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:3 Year Manufacturer
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Integration Only - Call for Project Quote
Back
$9,999.95

Call for Project Quote.

Interface Types: Ethernet RJ45, HDMI, VGA

Electrical Interface: HDMI 2.0 - 18Gbps

Resolution: 3840x2160

JVC DLA-RS620 4K e-Shift4 Premium D-ILA Custom Install Projector - Brand New

JVC DLA-RS620 4K e-Shift4 Premium D-ILA Custom Install Projector - Brand New

The DLA-RS620 is a premium, custom install projector, built with hand-selected and hand-tested components. The projector delivers 2000 lumens and an industry leading 160,000:1 native contrast ratio for strikingly clear images with screen sizes over 150 inches, and/or in high ambient light environments. No matter the room setting, the DLA-RS620 delivers dramatic, reference quality images from all 4K and HD sources.

Extraordinary Picture Quality

  • 2000 Lumens with High Power Lamp (PK-L2615U)
    265W High / 200W Normal
  • 160,000:1 Native Contrast Ratio
  • Intelligent Lens Aperture increases dynamic contrast ratio to 1,600,000:1
  • 6th generation 0.7-inch D-ILA devices
  • e-shift4 4K Precision 3840 X 2160 Projected Image
  • Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs
    • Compatible with full spec native 4K signals such as 4K60p 4:4:4 4K60p 4:2:2/36bit and 4K24p 4:4:4/36bit
    • Compatible with 4K streaming devices and UHD BD content
    • Compatible with DCI Color Space
  • HDR (High Dynamic Range) Compatible with Auto HDR (w/HDR10 signal) plus Hybrid Log-Gamma
  • Multi Pixel Control (MPC) with Auto Mode for ease of use
    MPC works with 4K60P (up to 4:4:4) signals
  • Clear Black processing (Patent pending)
  • Low Latency Mode reduces gaming/PC frame delays
  • Motion Enhance (2D, 3D, 4K) with Clear Motion Drive
  • THX 3D Certified
  • ISF (Imaging Science Foundation) Licensed— Quality installers can calibrate projector to your room
Highly customizable
  • sRGB, DCI and x.v. Color space
  • Darkness and lightness correction
  • Lens memory function memorizes 10 positions for focus, zoom and shift.
    Maintains constant height for 2.35, 1.85, 1.78 on same screen.
  • Screen Mode Presets for different screen material (117 memory positions)
  • Convergence Correction - 1/16th Pixel Increments (2 memory positions)
  • Simplified 6-Axis Color Management System
  • Manual Gamma Control included with JVC Calibration Software 6
  • Control4 SDDP (Simple Device Discovery Protocol)
Stunning 3D Performance with RF active shutter glasses (optional)
  • Advanced 3D Crosstalk Cancellation Control
  • 3D Anamorphic Mode
  • Parallax adjustment for fine tuning 3D effect
  • Accepts all modern 3D formats (Blu-ray, side-by-side, top-and-bottom)
Optimum Flexibility and Convenience
  • Remote control via LAN, RS-232C, IR
  • 12V Screen Trigger Output
  • V: 80%/H: 34% motorized lens shift
  • 1.4:1 to 2.8:1 lens throw

REFERENCE SERIES 4K
Model NumbersDLA-RS620
SPECIFICATIONS
Imaging Device0.7 inch Full HD D-ILA (1920 x 1080) x3
4K e-shift4 TechnologyYes
Resolution3840 x 2160 Precision via e-shift4 technology
(1920 x 1080 in 3D mode)
Lens2X Motorized Zoom & Focus, (f2)1.4 to 2.8 (f4) Throw Distance Range
Throw distance=Screen width X1.4 (Min.), Screen width X2.8 (Max.)
Lens ShiftMotorized Shift±80% Vertical and ±34% Horizontal
Light SourceNSH 265W Lamp
(lamp life: approx. 4500 hours when the lamp is in Low mode)
Contrast RatioNative: 160,000:1 | Dynamic: 1,600,000:1
Input terminalsHDMI
  • 2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/HDR)
    • Output terminals3D Sync
  • 1 (Mini DIN 3pin)
    • Trigger
  • 1 (Mini jack, DC12V/100mA)
    • Control TerminalRS-232C
  • 1(D-sub) 9pin)
    • LAN(RJ-45)
  • 1
    • Digital Video Signal480p, 576p, 720p/50 Hz, 720p/60 Hz, 1080i/50 Hz, 1080i/60 Hz, 1080p/24 Hz, 1080p/50 Hz, 1080p/60 Hz, 3840x2160/24Hz, 3840x2160/25Hz, 3840x2160/30Hz, 3840x2160/50Hz*, 3840x2160/60Hz* 4096x2160/24Hz, 4096x2160/25Hz, 4096x2160/30Hz, 4096x2160/50Hz*, 4096x2160/60Hz*
    3D SignalFrame Packing
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
    • Side-by-Side
  • 1080i/60 Hz, 1080p/60 Hz, 1080i/50 Hz
  • 1080p/50 Hz, 1080p/24 Hz, 720p/50 Hz, 720p/60 Hz
    • Top-and-Bottom
  • 720p/50 Hz, 720p/60 Hz, 1080p/24 Hz
    • PC Input SignalVGA 60, VGA 59.94, SVGA 60, XGA 60, WXGA 60, WXGA+ 60, SXGA 60, WSXGA+ 60, WUXGA 60
    Dimensions(WxHxD-inches)
  • 17 7/8 x 7 x 18 9/16
    • Weight (net)(lbs)34.4
    * When the color space is RGB/YCbCr(4:4:4), only 8-bit input is supported.
    Click here to view the manufacturer's item description/brochure

    Weight: 37 lb

    Warranty: 3 Year Manufacturer
