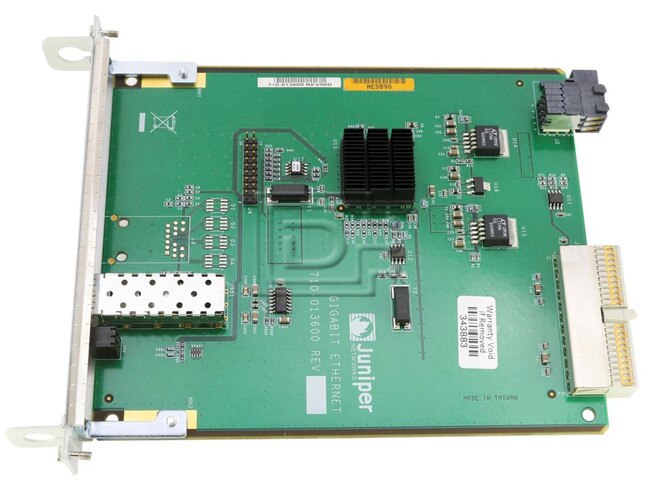

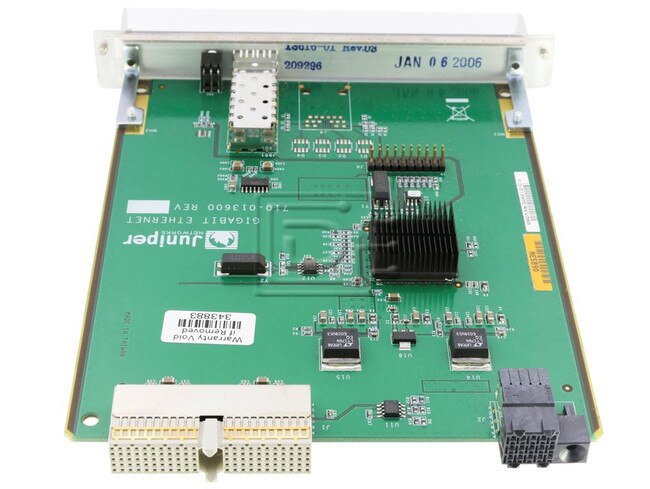

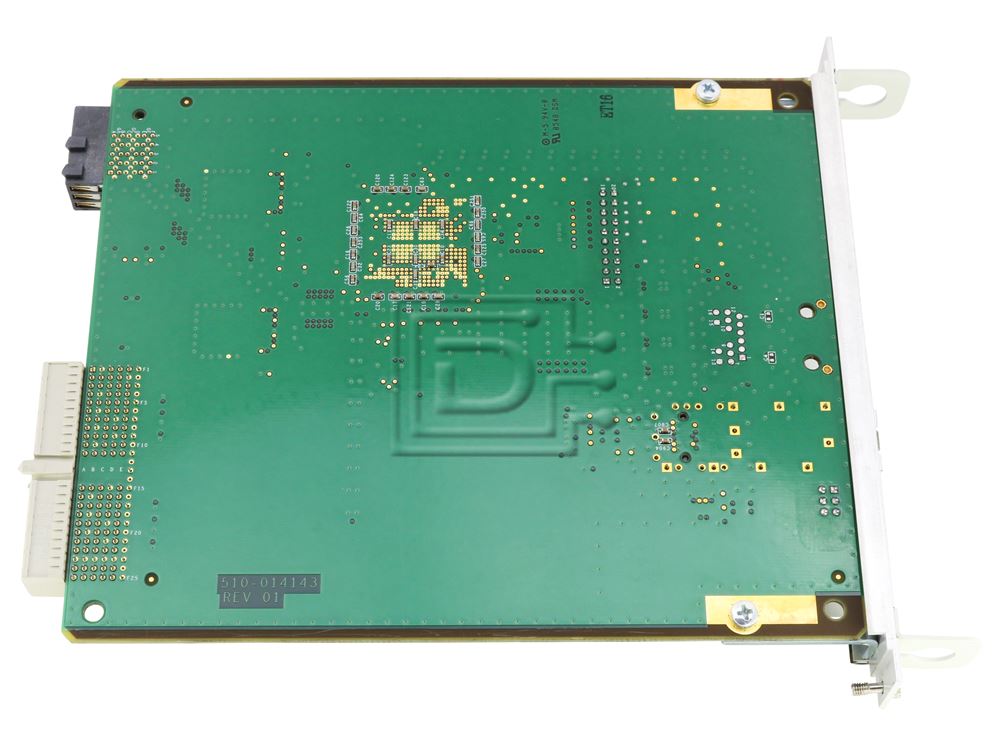

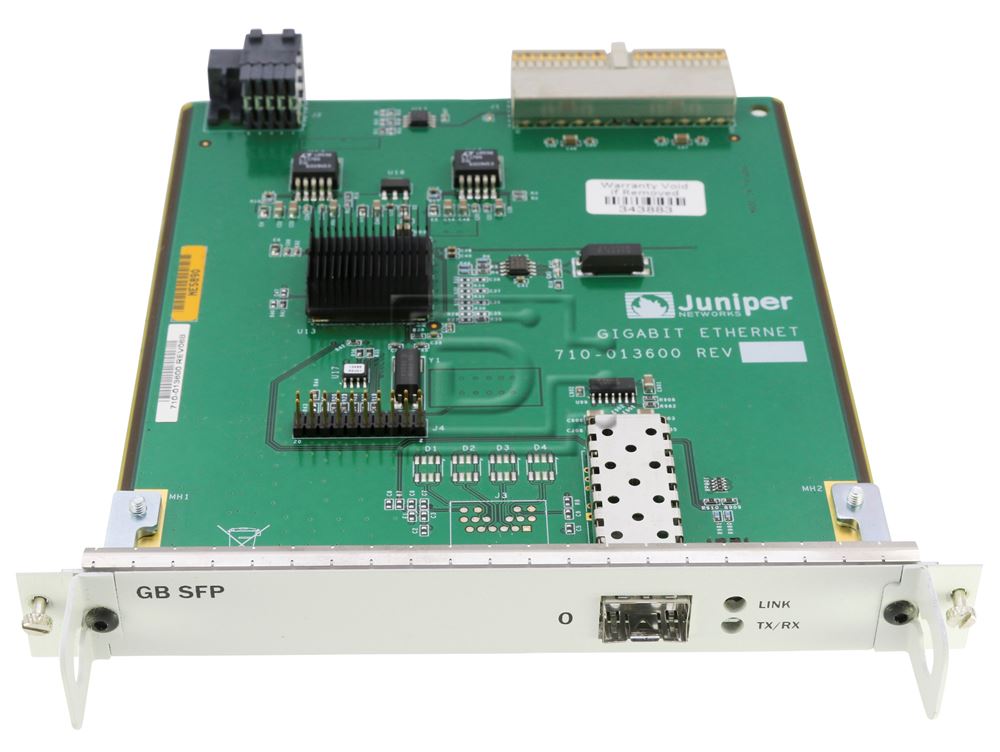

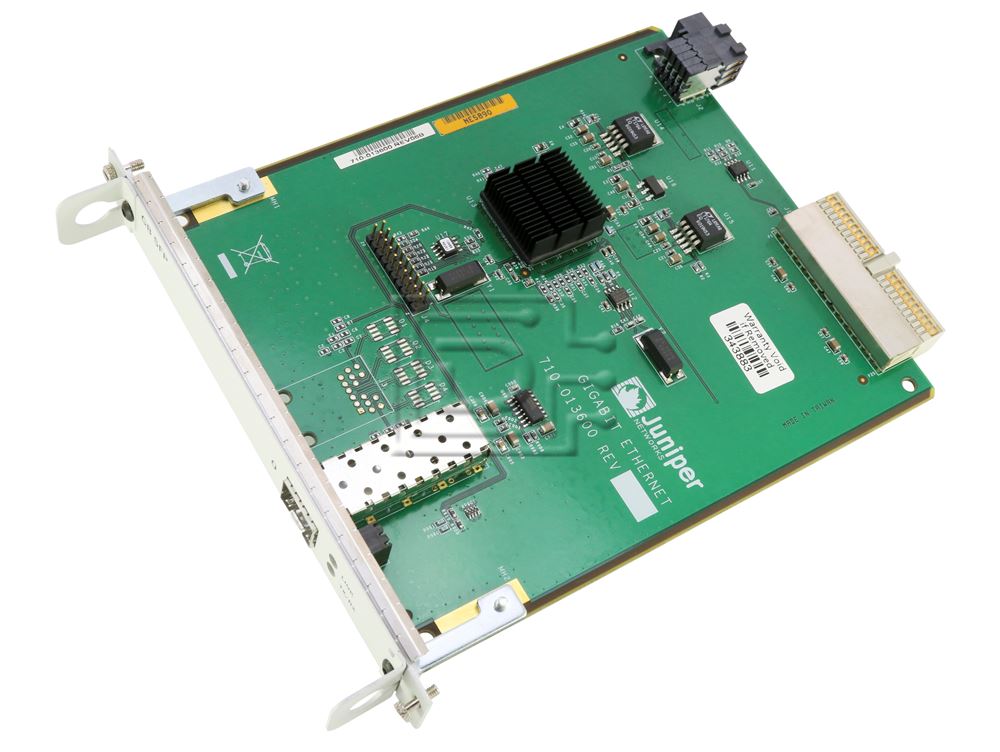

Juniper JXE-1GE-SFP-S Single-Port Gigabit SFP PIM Physical Interface Module

Juniper Part #/MPN: JXE-1GE-SFP-S

DiscTech Item #: JUN-JXE-1GE-SFP-S-RF-OE


Interface Types: Ethernet RJ45

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 1

Juniper JXE-1GE-SFP-S Single-Port Gigabit SFP Physical Interface Module PIM - Refurbished

Juniper JXE-1GE-SFP-S Single-Port Gigabit SFP Physical Interface Module PIM - Refurbished

1 Port Fiber Gigabit Ethernet Enhanced PIM, (SFP sold separately)

The Juniper Enhanced EPIMs provide the physical connection to network media types, receiving incoming packets from the network and transmitting outgoing packets to the network. The Juniper PIMs are equipped with a dedicated network processor that forwards incoming data packets to the Routing Engine, and receives outgoing data packets from the Routing Engine. During this process, the PIM performs framing and line-speed signaling.

The JXE-1GE-SFP-S PIM is compatible with:  Secure Services Gateway 500 Series firewall appliance.

The Juniper Enhanced EPIMs provides the following benefits:
  • High speed interfaces can support WAN access needs of large regional or corporate sites.
  • The integrated DSU eliminates the need to deploy a separate external device saving valuable space and simplifying management.
Features - 1 Port Gigabit Ethernet SFP EPIM Specifications
  •  LX and SX fiber SFP options (SFP not included)
  •  1 SFP Cage  (SFP Sold Separately)
  •  Link and Activity LEDs

Alt Part# 710-013600


The JXE-1GE-SFP-S is compatible with:

Juniper Secure Services Gateway 500 Series firewall appliance.



Dimensions (H x W x D)

0.63 in. x 5.45 in. x 6.5 in.
1.6 cm. x 13.8 cm. x 16.5 cm.

Network Interface Specifications




   Interface connector

SFP (SFP not included)


Link & Activity



   Operating Temperature

0 to 40C

   Non-Operating Temperature

-40 to 70

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 710-013600

Weight: 1 lb
