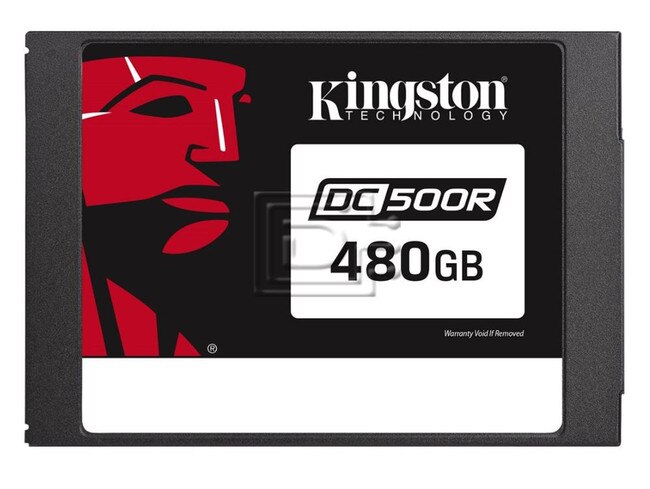

Kingston DC500 / DC500R KG-S45480 480GB 2.5 inch SATA SSD


DiscTech Item #: KIN-KG-S45480-BN-OE-DEG

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 555 / 520MB/s

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Kingston DC500 / DC500R / SEDC500R/480GB KG-S45480 / OEM SEDC500R/480GB 480GB 2.5 inch 6Gbps SATA SSD - Brand New OEM

Kingston DC500 / DC500R KG-S45480 / OEM SEDC500R/480GB 480GB 2.5 inch 6Gbps SATA SSD

ALT P/N known as : 0JJDH8 JJDH8 KG-S45480-IP KG-S45480-1P SEDC500R/480G R-R-K98-DC500 99M7266-001


Data Center 500 Series

Kingston’s Data Center 500 (DC500R / DC500M) Series of solid-state drives are high performance 6Gbps SATA SSDs using the latest 3D TLC NAND, designed for Read Centric and Mixed-Use server workloads. They implement Kingston’s strict QoS requirements to ensure predictable random I/O performance as well as predictable low latencies over a wide range of read and write workloads. They can increase productivities within AI, machine learning, big data analytics, cloud computing, software-defined storage, operational databases (ODB), database applications, and data warehousing. Capacities from 480GB, 960GB, 1.92TB, 3.84TB, 7.68TB

Enterprise Data Center SSD

Delivering on business demands for 24/7 uptime and reliability, Kingston Enterprise SSDs offer performance storage that combines performance predictability as well as rigorously tested reliability. Kingston’s DC500 Series SSDs offer features that enable data centers to select the most cost effective SSD for their workload(s). Businesses require results as they deliver on products, solutions and service level agreements (SLA’s). Kingston’s DC500 Series SSDs are designed to deliver on these expectations.


This drive is compatible with any computer or server that accepts 2.5" x 7mm (Thin / Case) SATA drive.

Drive ModelKG-S45480 / Alternate part number  SEDC500R/480G
InterfaceSATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0
Form Factor2.5"
IOMETER Maximum Random 4K Read/Write98,000/12,000 IOPS
Compressible Data Transfer (ATTO) 555MBs/500MBs
Incompressible Data Transfer (AS-SSD and CrystalDiskMark) 555MBs/500MBs
Endurance480GB — 438TBW5, (0.5 DWPD/5yrs) / (0.8 DWPD/3yrs)
Idle Power Consumption1.3 W
Read Power Consumption1.423 W
Write Power Consumption4.5 W
Total Bytes Written (TBW)438TBW
Operating Temperature 0°C ~ 70°C
Storage Temperature-40°C ~ 85°C
Vibration Operating2.17G peak (7-800Hz)
Vibration Non-Operating20G peak (10-2000Hz)
Life expectancy (MTBF)1,000,000 Hrs
Dimensions (mm)69.8 x 100.1 x 7.0
Dimentions (in)2.748 x 3.965 x 0.276
Weight (g/lb)86/0.1896

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0JJDH8 JJDH8 KG-S45480-IP KG-S45480-1P SEDC500R/480G R-R-K98-DC500 99M7266-001 DC500R SEDC500R

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
