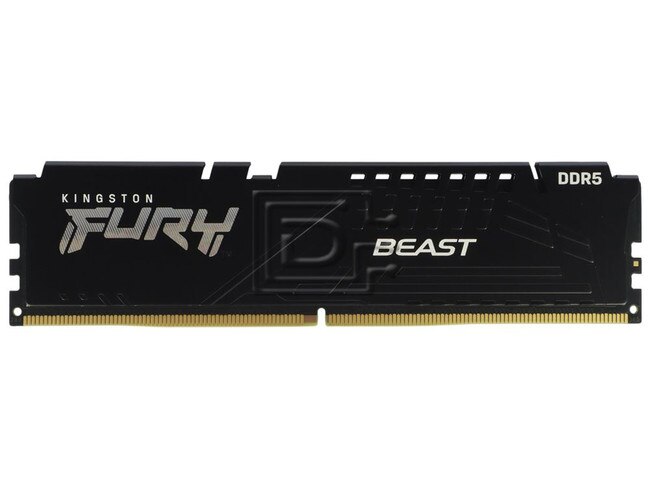

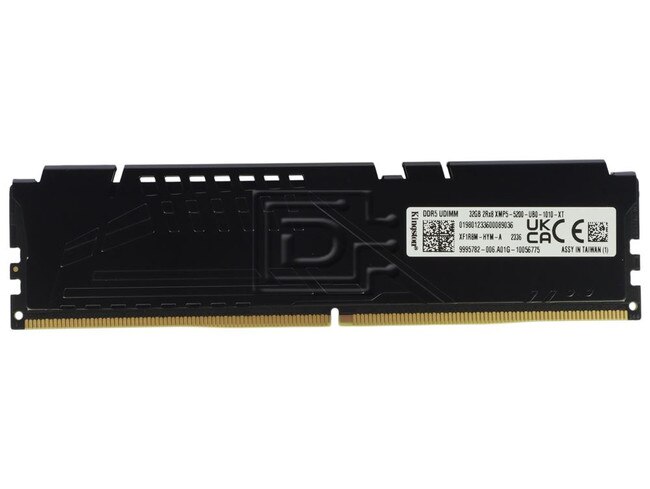

Kingston Fury 128GB Kit (32GB x 4 pcs.) Beast KF552C40BB-32 / KF552C40BBK4-128 DDR5 5200MHz CL40 2Rx8 Dual-Rank Non-ECC Unbuffered 288-Pin RAM Memory (Kit of 4) - Brand New OEM
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | DDR5 DIMM 288pin |
| Form Factor: | DDR5 UDIMM |
| Electrical Interface: | PC5-41600 DDR5-5200 MT/s |
| RAM: | 128GB |
| Voltage: | 1.35V |
Description
Kingston Fury 128GB Kit (32GB x 4 pcs.) Beast KF552C40BB-32 / KF552C40BBK4-128 DDR5 5200MHz CL40 2Rx8 Dual-Rank Non-ECC Unbuffered 288-Pin RAM Memory (Kit of 4) - Brand New OEM
Kingston Fury 128GB Kit (32GB x 4 pcs.) Beast KF552C40BB-32 / KF552C40BBK4-128 DDR5 5200MHz CL40 2Rx8 Dual-Rank Non-ECC Unbuffered 288-Pin RAM Memory (Kit of 4) - Brand New OEM
Description:
Kingston FURY KF552C40BBK4-128 is a kit of four 4G x 64-bit (32GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 128GB. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows
JEDEC/XMP TIMING PARAMETERS:
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- XMP Profile #1: DDR5-5200 CL40-40-40 @1.25V
- XMP Profile #2: DDR5-4800 CL38-38-38 @1.1V
Compatibility
Compatible with any PC that accepts 32GB 5200MHz 288-Pin DDR5 Memory.
Designed for:
Dell Alienware Aurora R15 R16
Specifications
| Kingston Fury HyperX / Beast Product Specifications | |
|---|---|
| Kingston Part# | KF552C40BB-32 |
| Alt Part# | |
| Device Type | DDR5 RAM |
| Capacity | 32GB |
| Speed | 5200MHz |
| CL(IDD) | 40 cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V -0 |
| Operating Temperature | 0° to 85° C |
| Storage Temperature | -55° to 100° C |
| Power Supply | 1.1V Typical |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 2 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
