Kingston Fury Beast 16GB DDR5 5200MHz CL40 Desktop RAM KF552C40BB-16 / X1XJ4R-HYM-A / Dell 1XJ4R

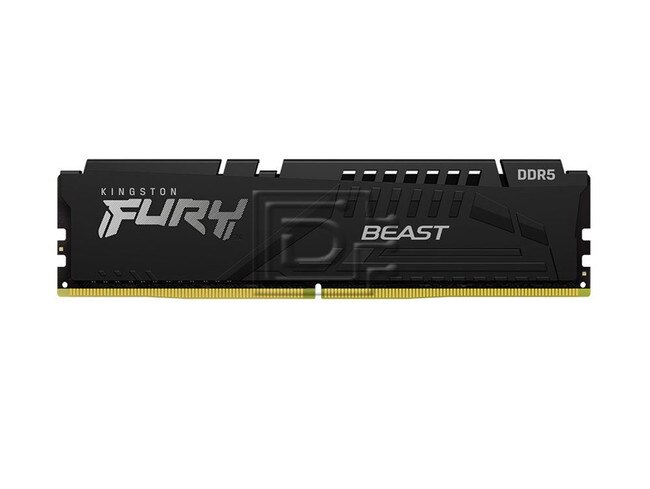

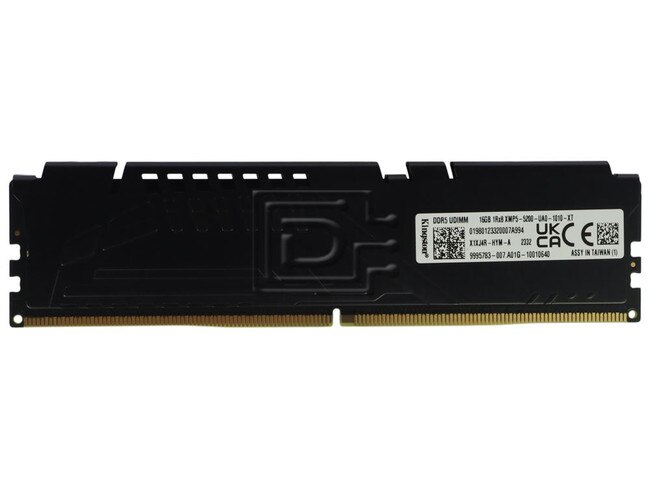

KINGSTON TECHNOLOGY KF552C40BB-16 1XJ4R 01XJ4R X1XJ4R-HYM-A 16GB DDR5 5200MHz RAM Unbuffered Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:1
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$49.99

Interface Types:DDR4 DIMM 288pin
Form Factor:DDR5 UDIMM
Electrical Interface:PC5-41600 DDR5-5200 MT/s
RAM:16GB
Voltage:1.1V

Description

Kingston Fury Beast KF552C40BB-16 / X1XJ4R-HYM-A / Dell 1XJ4R 16GB DDR5 5200MHz CL40 1Rx8 Single-Rank Non-ECC Unbuffered 288-Pin RAM Memory - Brand New OEM

Kingston Fury Beast KF552C40BB-16 / X1XJ4R-HYM-A / Dell 1XJ4R 16GB DDR5 5200MHz CL40 1Rx8 Single-Rank Non-ECC Unbuffered 288-Pin RAM Memory - Brand New OEM

Description:
Kingston FURY KF552C40BB-16 is a 2G x 64-bit (16GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.

The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

The JEDEC standard electrical and mechanical specifications are as follows:

JEDEC/XMP TIMING PARAMETERS:

  • Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
  • XMP Profile #1: DDR5-5200 CL40-40-40 @1.25V
  • XMP Profile #2: DDR5-4800 CL38-38-38 @1.1V

Compatibility:

Compatible with any PC that accepts 16GB 5200MHz 288-Pin DDR5 Memory.

Designed for:
Dell Alienware Aurora R15 R16

Specifications

Kingston Fury HyperX / Beast Product Specifications
Dell Part#KF552C40BB-16
Alt Part#
Device TypeDDR5 RAM
Capacity16GB
Speed5200MHz
CL(IDD)40 cycles
Row Cycle Time (tRCmin)48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)295ns(min.)
Row Active Time (tRASmin)32ns(min.)
UL Rating94 V -0
Operating Temperature0° to 85° C
Storage Temperature-55° to 100° C
Power Supply1.1V Typical
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1XJ4R 01XJ4R X1XJ4R-HYM-A

Weight: 0.5 lb

Warranty: 1 Year DiscTech
