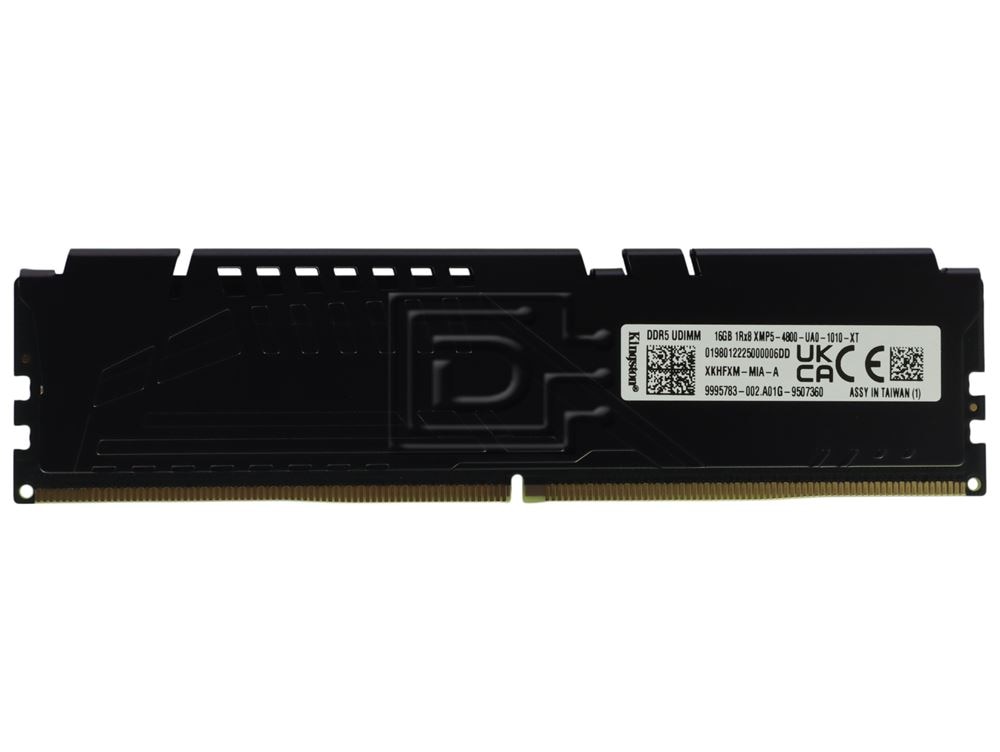

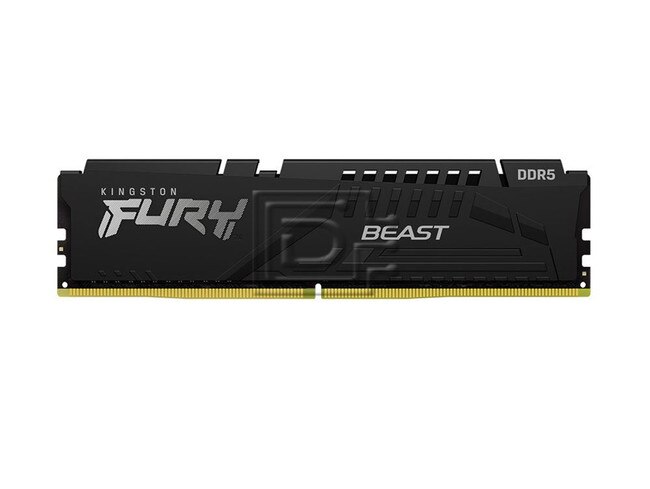

Kingston Fury Beast KF548C38BB-16 / XKHFXM-MIA-A / Dell KHFXM 16GB DDR5 4800MHz CL38 1Rx8 Single-Rank Non-ECC Unbuffered 288-Pin RAM Memory
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | DDR4 DIMM 288pin |
| Form Factor: | DDR5 UDIMM |
| Electrical Interface: | PC5-38400 DDR5-4800 MT/s |
| RAM: | 16GB |
| Voltage: | 1.1V |
Description
Kingston Fury Beast KF548C38BB-16 / XKHFXM-MIA-A / Dell KHFXM 16GB DDR5 4800MHz CL38 1Rx8 Single-Rank Non-ECC Unbuffered 288-Pin RAM Memory - Brand New OEM
Kingston Fury Beast KF548C38BB-16 / XKHFXM-MIA-A / Dell KHFXM 16GB DDR5 4800MHz CL38 1Rx8 Single-Rank Non-ECC Unbuffered 288-Pin RAM Memory - Brand New OEM
Description:
Kingston FURY KF548C38BB-16 is a 2G x 64-bit (16GB)
DDR5-4800 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
The module supports Intel® Extreme Memory Profiles (Intel®
XMP) 3.0. Each module has been tested to run at DDR5-4800 at a
low latency timing of 38-38-38 at 1.1V. Additional timing parameters
are shown in the Plug-N-Play (PnP) Timing Parameters section
below. Each 288-pin DIMM uses gold contact fingers. The
JEDEC standard electrical and mechanical specifications are
as follows:
JEDEC/XMP TIMING PARAMETERS:
- Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V
- XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
Compatibility
Compatible with any PC that accepts 16GB 4800MHz 288-Pin DDR5 Memory.
Designed for:
Dell Alienware Aurora R15 R16
Specifications
| Kingston Fury HyperX / Beast Product Specifications | |
|---|---|
| Dell Part# | KF548C38BB-16 |
| Alt Part# | XKHFXM-MIA-A |
| Device Type | DDR5 RAM |
| Capacity | 16GB |
| Speed | 4800MHz |
| CL(IDD) | 32 cycles |
| Row Cycle Time (tRCmin) | 48ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
| Row Active Time (tRASmin) | 29ns(min.) |
| UL Rating | 94 V -0 |
| Operating Temperature | 0° to 85° C |
| Storage Temperature | -55° to 100° C |
| Power Supply | 1.1V Typical |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: KHFXM 0KHFXM XKHFXM-MIA-A
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
