KINGSTON TECHNOLOGY Part #/MPN: HX429C17FB2/8
DiscTech Item #: KIN-HX429C17FB2-8-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:4Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: DDR4 DIMM 288pin
Form Factor: DDR4 UDIMM
Electrical Interface: PC4-23400
On-Board Cache: 8GB
Voltage: 1.35V

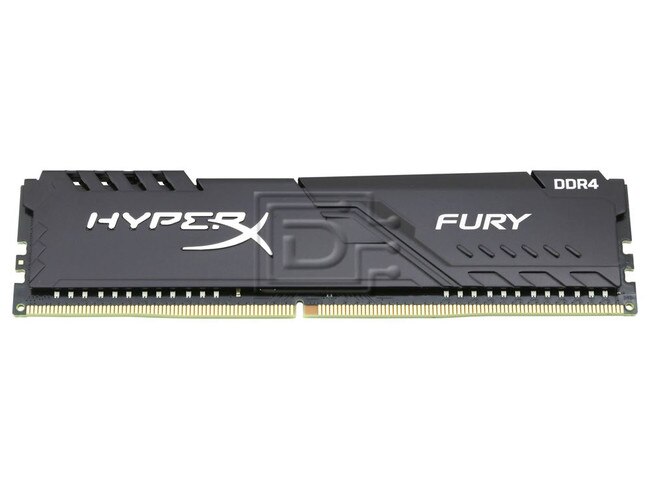

Kingston Fury HyperX HX429C17FB2/8 / Beast KF426C16BB/8 / XJ69DF-MIE2 / XJ69DF-MIE / XJ69DF-HYA / Dell J69DF 8GB DDR4 2933MHz CL17 1Gx64 Single Rank 1.35V Non-ECC Unbuffered 288-Pin RAM memory module - Brand New OEM
Kingston Fury HyperX HX429C17FB2/8 / Beast KF426C16BB/8 / KF426C16BB1/16 / XJ69DF-MIE2 / XJ69DF-MIE / XJ69DF-HYA / Dell J69DF 8GB DDR4 2933MHz CL17 1Gx64 1Rx8 / Single Rank 1.35V Non-ECC Unbuffered 288-Pin RAM / Random Access Memory module - Brand New OEM
Description:
HyperX HX429C17FB2/8 is a 1G x 64-bit (8GB) DDR4-2933 CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2933 at a low latency timing of 17-19-19 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:
JEDEC/XMP TIMING PARAMETERS:
- JEDEC/PnP: DDR4-2933 CL17-19-19 @1.2V
- XMP Profile #1: DDR4-2933 CL17-19-19 @1.2V
- XMP Profile #2: DDR4-2666 CL16-18-18 @1.2V
Compatibility:
Compatible with any PC that accepts 8GB 2933MHz 288-Pin DDR4 Memory. Designed for:
Dell Alienware Aurora R5 / R6 / R7 / R8 / R9 / R10 / R11 / R12 / R14
Dell Area-51 R2 / R3 / R4 / R5 / R6 / R7 / R8
| Kingston Fury HyperX / Beast Product Specifications | |
|---|---|
| Dell Part# | HX429C17FB2/8 |
| Alt Part# | KF426C16BB/8 XJ69DF-MIE2 XJ69DF-MIE. XJ69DF-HYA J69DF |
| Device Type | DDR4 RAM |
| Capacity | 8GB |
| Speed | 2933MHz |
| CL(IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 45.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
| Row Active Time (tRASmin) | 26.55ns(min.) |
| UL Rating | 94 V -0 |
| Operating Temperature | 0° to 85° C |
| Storage Temperature | -55° to 100° C |
| Power Supply | 1.2V Typical |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: KF426C16BB/8 XJ69DF-MIE2 XJ69DF-MIE XJ69DF-HYA J69DF 0J69DF
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
