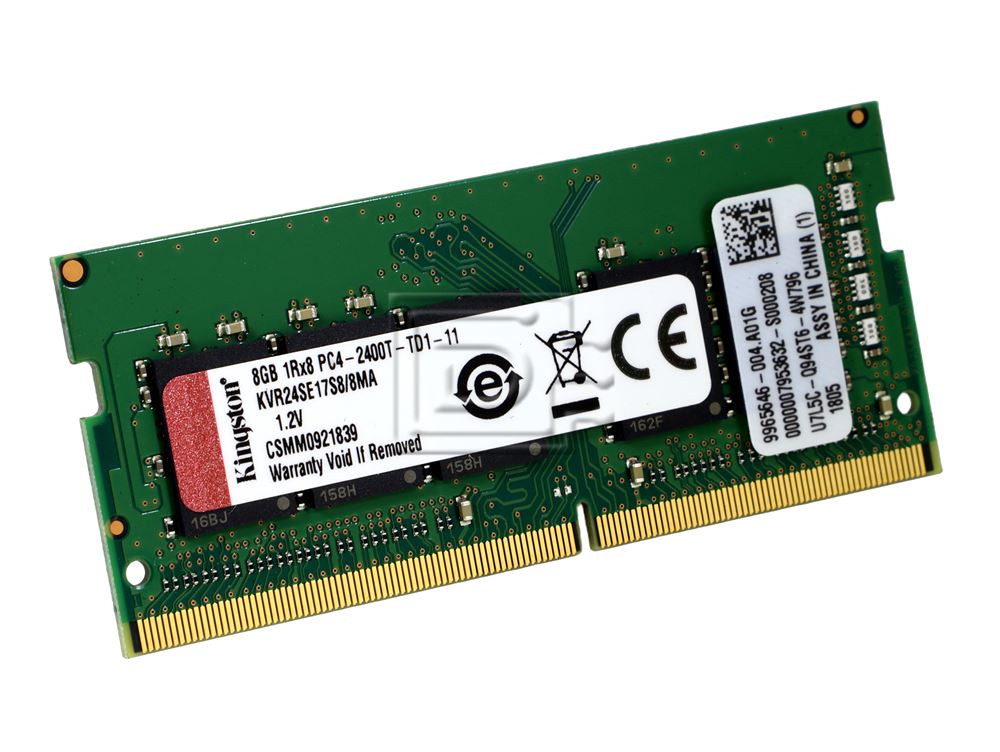

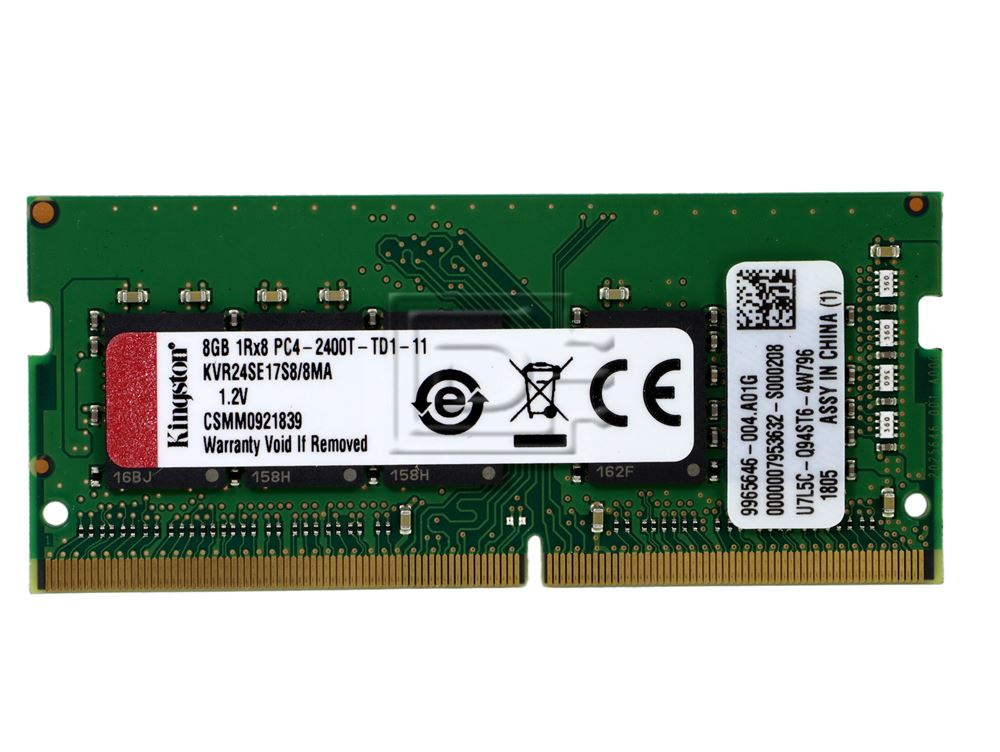

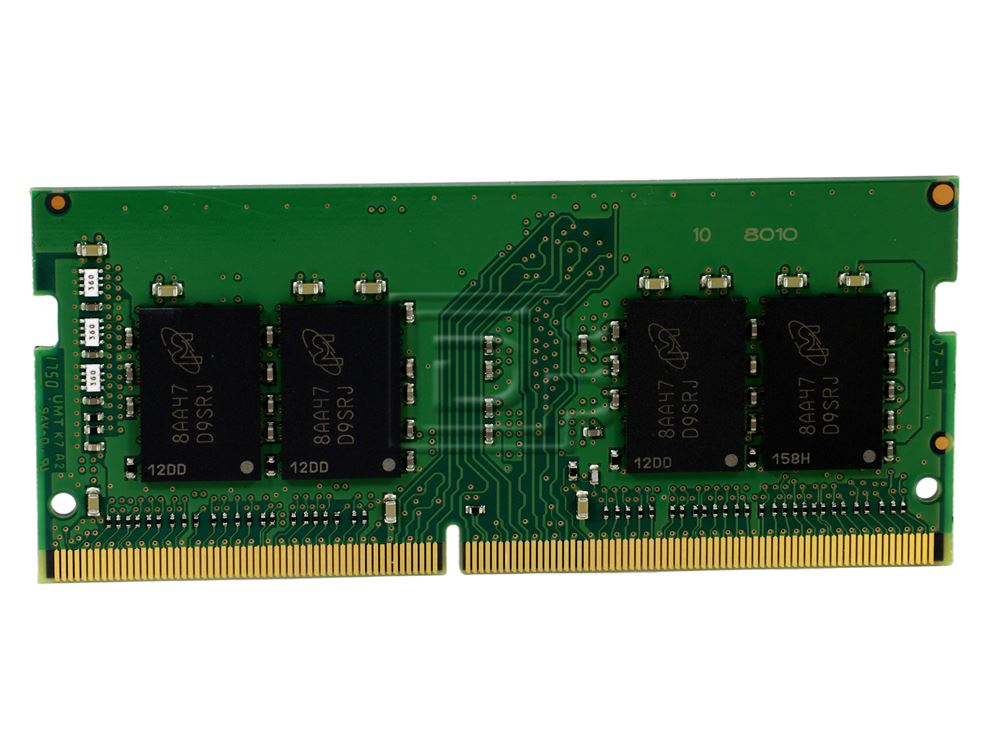

Kingston KVR24SE17S8/8MA 8GB 2400Mhz ECC SODIMM 260-Pin PC4-2400 CL17 Laptop NAS RAM Memory Module
- In Stock:25Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | DDR4 SODIMM 260pin |
| Form Factor: | DDR4 SODIMM |
| Electrical Interface: | PC4-19200 |
| RAM: | 8GB |
| Voltage: | 1.8V |
Description
Kingston KVR24SE17S8/8MA 8GB 2400Mhz ECC SODIMM 260-Pin PC4-2400 CL17 Laptop NAS RAM Memory Module- Brand New
Kingston KVR24SE17S8/8MA 8GB 2400Mhz ECC SODIMM 260-Pin PC4-2400 CL17 Laptop NAS RAM Memory Module- Brand New
This document describes ValueRAM's 512M x 72-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
Specifications
| Parameter | Value |
|---|---|
| CL(IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 45.75ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| Maximum Operating Power | * |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
Click here to view the manufacturer's item description/brochure
Weight: 0.2 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
