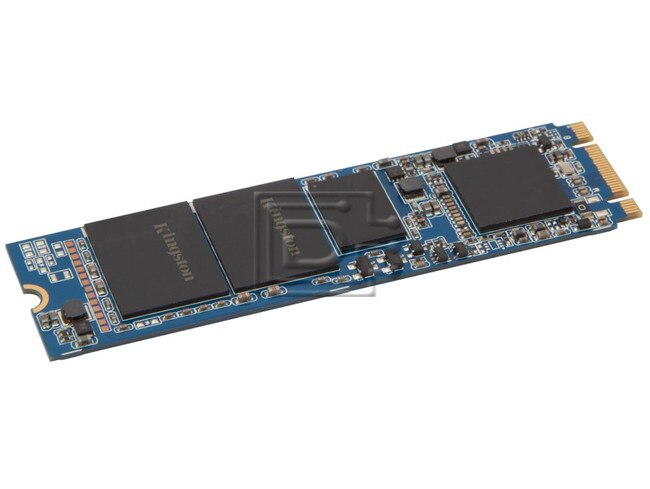

Kingston SM2280S3/120G 120GB SATA SSD


DiscTech Item #: KIN-SM2280S3-120G-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 120GB

Speed: Solid State Memory

Interface Types: SATA M.2 NGFF

Form Factor: M.2 x 80mm

Sector Size: 512 / 512e

Sustained Throughput: 550

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Kingston SM2280S3/120G 120GB M.2 2280 6Gbps SATA SSD - Brand New

Kingston SM2280S3/120G 120GB M.2 2280 6.0 Gbps Serial ATA Solid State Disk Drive - Brand New

Performance, low power consumption, mini size. Big possibilities.

Kingston’s M.2 SATA solid-state drive features a thin, compact form factor that saves space in small design embedded systems, appliances and ultra-thin computing devices. It meets the M.2 industry standard and integrates into designs with next-generation connectors. It’s caseless to allow for easier design-in and lighter weight than a cased SSD and match today’s thin-and-lighter weight than a SSD and match today’s thin-and-light systems.

Its 2280 module optimizes performance with advance garbage collection, wear-leveling and TRIM support to keep performance consistent over the life of the drive. DevSleep, a new addition to the SATA specification, is an efficient power management option that minimizes power consumption and extends battery life. This M.2 SATA version also features firmware-based power loss protection to maintain data integrity. In the case of unexpected power loss, the drive ensures that data in cache is constantly flushed and hardened to NAND. This enables the drive to recover if there’s ever an unsafe shutdown.

For added peace of mind, the M.2 SATA SSD is backed by legendary y Kingston® reliability


  • Popular M.2 Size – 22mm, 80mm length
  • NAND Flash memory based – Shock resistant with lower power consumption
  • Supports Intel’s SRT – Combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
  • Supports S.M.A.R.T. – Monitors the status of your drive
  • Supports TRIM – Maintains maximum performance of compatible operating systems


This drive is compatible with any server that accepts M.2 x 80mm SATA drives.

Drive ModelSM2280S3/120G
Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0
Form Factor M.2 2280
IOMETER Maximum Random 4K Read/WriteUp to 66,000/Up to 65,000 IOPS
Random 4k Read/WriteUp to 46,000/Up to 13,500 IOPS
Compressible Data Transfer (ATTO)550MB/s and 520MB/s Write
Incompressible Data Transfer (AS-SSD and CrystalDiskMark)500MB/s Read and 330MB/s Write
PCMARK® Vantage HDD Suite Score56,000
PCMARK® 8 Storage Score4,900
Idle Power Consumption0.06 W
Average Power Consumption0.1 W
Read Power Consumption (MAX)1.01 W
Write Power Consumption (MAX)3.08 W
Total Bytes Written (TBW)230TB 1.8 DWPD
Operating Temperature 0°C ~ 70°C
Storage Temperature-40°C ~ 85°C
Vibration Operating2.17G peak (7-800Hz)
Vibration Non-Operating20G peak (10-2000Hz)
Life expectancy (MTBF)1,000,000 Hrs
Dimensions (mm)80 x 22 x 3.5
Dimentions (in)3.150 x 0.866 x 0.138
Weight (g/lb)7.36/0.016

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SM2280S3/120G

Weight: 0.5 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
