KINGSTON TECHNOLOGY Part #/MPN: SM2280S3-240G
DiscTech Item #: KIN-SM2280S3-240G-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 240GB
Speed: Solid State Memory
Interface Types: SATA M.2 NGFF
Form Factor: M.2 x 80mm
Sector Size: 512 / 512e
Sustained Throughput: 550
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

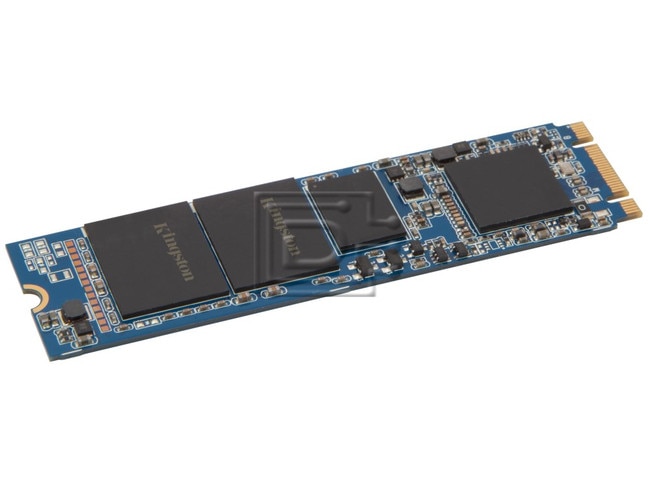

Kingston SM2280S3/240G 240GB M.2 2280 6Gbps SATA SSD - Brand New
Kingston SM2280S3/240G 240GB M.2 2280 6.0 Gbps Serial ATA Solid State Disk Drive - Brand New
Performance, low power consumption, mini size. Big possibilities.
Kingston’s M.2 SATA solid-state drive features a thin, compact form factor that saves space in small design embedded systems, appliances and ultra-thin computing devices. It meets the M.2 industry standard and integrates into designs with next-generation connectors. It’s caseless to allow for easier design-in and lighter weight than a cased SSD and match today’s thin-and-lighter weight than a SSD and match today’s thin-and-light systems.
Its 2280 module optimizes performance with advance garbage collection, wear-leveling and TRIM support to keep performance consistent over the life of the drive. DevSleep, a new addition to the SATA specification, is an efficient power management option that minimizes power consumption and extends battery life. This M.2 SATA version also features firmware-based power loss protection to maintain data integrity. In the case of unexpected power loss, the drive ensures that data in cache is constantly flushed and hardened to NAND. This enables the drive to recover if there’s ever an unsafe shutdown.
For added peace of mind, the M.2 SATA SSD is backed by legendary Kingston® reliability
Features
- Popular M.2 Size – 22mm, 80mm length
- NAND Flash memory based – Shock resistant with lower power consumption
- Supports Intel’s SRT – Combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
- Supports S.M.A.R.T. – Monitors the status of your drive
- Supports TRIM – Maintains maximum performance of compatible operating systems
Compatibility:
This drive is compatible with any server that accepts M.2 x 80mm SATA drives
Drive Model | SM2280S3/240G |
---|---|
Capacity | 240GB |
Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 |
Form Factor | M.2 2280 |
IOMETER Maximum Random 4K Read/Write | Up to 65,000/Up to 65,000 IOPS |
Random 4k Read/Write | Up to 46,000/Up to 26,000 IOPS |
Compressible Data Transfer (ATTO) | 550MB/s and 520MB/s Write |
Incompressible Data Transfer (AS-SSD and CrystalDiskMark) | 500MB/s Read and 330MB/s Write |
PCMARK® Vantage HDD Suite Score | 56,000 |
PCMARK® 8 Storage Score | 4,800 |
Idle Power Consumption | 0.06 W |
Average Power Consumption | 0.1 W |
Read Power Consumption (MAX) | 1.01 W |
Write Power Consumption (MAX) | 3.08 W |
Total Bytes Written (TBW) | 420TB 1.75 DWPD |
Operating Temperature | 0°C ~ 70°C |
Storage Temperature | -40°C ~ 85°C |
Vibration Operating | 2.17G peak (7-800Hz) |
Vibration Non-Operating | 20G peak (10-2000Hz) |
Life expectancy (MTBF) | 1,000,000 Hrs |
Dimensions (mm) | 80 x 22 x 3.5 |
Dimentions (in) | 3.150 x 0.866 x 0.138 |
Weight (g/lb) | 7.36/0.016 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SM2280S3/240G
Weight: 0.5 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
