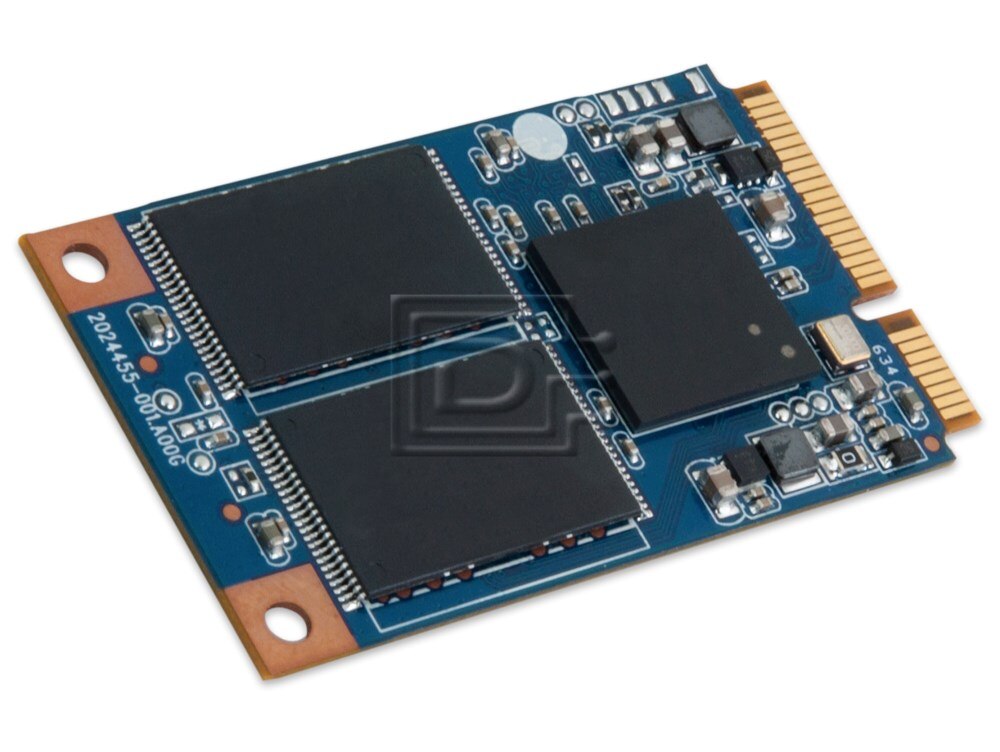

Kingston SMS200S3/240G 240GB mSATA SSD
- Low Stock:Call for ETA
- 3 Year ManufacturerWarranty
| Capacity: | 240GB |
| Speed: | Solid State |
| Interface Types: | SATA 1.8in Mini-SATA / MSATA |
| Form Factor: | 1.8" x 3.5mm Ultrathin Caseless |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Kingston SMS200S3/240G 240GB 1.8in 6Gbps mS200 SED mSATA SSD - Brand New
Kingston SMS200S3/240G 240GB 1.8" 6.0 Gbps mS200 Self-Eencrypting, Mini SATA Solid State Disk Drive - Brand New
Save space, time and money.
Kingston’s SSDNow mS200 mSATA solid-state drive offers a cost-effective performance boost with a dual-drive option that allows room for adding high-capacity storage. Ideal for system builders, OEMs and enthusiasts, mS200’s ruggedly cool, minuscule form factor is eight times smaller than a traditional 2.5-inch hard drive, making it perfect for notebooks, tablets and Ultrabooks. SSDNow ms200 has a caseless, PCB-only design with no moving parts and is backed by legendary Kingston® reliability
Features
- mSata interface – Fully compliant with industry standard, easy to fit, guaranteed to work
- NAND Flash memory based – Shock resistant with lower power consumption
- Supports Intel’s SRT – Combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
- Supports S.M.A.R.T. – Monitors the status of your drive
- Supports TRIM – Maintains maximum performance of compatible operating systems
- Encryption - AES 128bit
Compatibility
This drive is compatible with any server that accepts 1.8"x3.5mm (Thin / Caseless) SATA drives.
Specifications
| Drive Model | SMS200S3/240G |
|---|---|
| Capacity | 240GB |
| Interface | SATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s) |
| Form Factor | mSATA |
| Encryption | AES 128bit |
| Maximum 4K Read/Write | Up to 72,000/Up to 40,000 IOPS |
| Random 4k Read/Write | Up to 21,000/Up to 41,000 IOPS |
| Sequential Read/Write | 540MB/s / 530MB/s |
| PCMARK® Vantage HDD Suite Score | 60,000 |
| Idle Power Consumption | 0.4 W |
| Read Power Consumption (TYP) | 1.2 W |
| Write Power Consumption (TYP) | 1.8 W |
| Total Bytes Written (TBW) | 585TB, 2 DWPD |
| Operating Temperature | 0°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Vibration Operating | 2.17G peak (7-800Hz) |
| Vibration Non-Operating | 20G peak (10-2000Hz) |
| Life expectancy (MTBF) | 1,000,000 Hrs |
| Dimensions (mm) | 50.88 x 30 |
| Dimentions (in) | 2.000 x 1.181 |
| Weight (g/lb) | 6.86/0.015 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SMS200S3/240G
Weight: 0.5 lb
Warranty: 3 Year Manufacturer
Condition
Warranty
3 Year Manufacturer Warranty
