Kingston SMS200S3/30G 30GB mSATA SSD


DiscTech Item #: KIN-SMS200S3-30G-BN-2Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 30GB

Speed: Solid State Memory

Interface Types: SATA 1.8in Mini-SATA / MSATA

Form Factor: 1.8inx3.5mm Ultrathin Caseless

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 550

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Kingston SMS200S3/30G 30GB 1.8in 6Gbps mS200 SED mSATA SSD - Brand New

Kingston SMS200S3/30G 30GB 1.8" 6.0 Gbps mS200 Self-Encrypting, Mini SATA Solid State Disk Drive - Brand New

Save space, time and money.

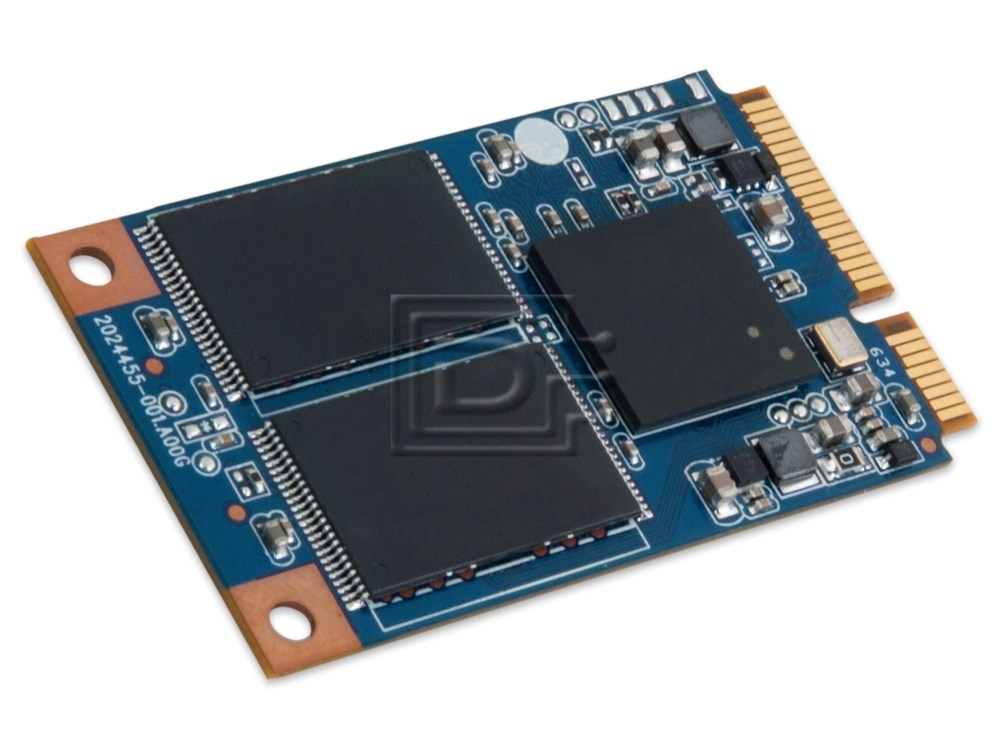

Kingston’s SSDNow mS200 mSATA solid-state drive offers a cost-effective performance boost with a dual-drive option that allows room for adding high-capacity storage. Ideal for system builders, OEMs and enthusiasts, mS200’s ruggedly cool, minuscule form factor is eight times smaller than a traditional 2.5-inch hard drive, making it perfect for notebooks, tablets and Ultrabooks. SSDNow ms200 has a caseless, PCB-only design with no moving parts and is backed by legendary Kingston® reliability


  • mSata interface – Fully compliant with industry standard, easy to fit, guaranteed to work
  • NAND Flash memory based – Shock resistant with lower power consumption
  • Supports Intel’s SRT – Combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
  • Supports S.M.A.R.T. – Monitors the status of your drive
  • Supports TRIM – Maintains maximum performance of compatible operating systems
  • Encryption - AES 128bit


This drive is compatible with any server that accepts 1.8" x 3.5mm (Thin / Caseless) SATA drive

Drive ModelSMS200S3/30G
InterfaceSATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s)
Form FactormSATA
EncryptionAES 128bit
Maximum 4K Read/WriteUp to 86,000/Up to 77,000 IOPS
Random 4k Read/WriteUp to 7,500/Up to 71,000 IOPS
Sequential Read/Write550MB/s / 510MB/s
PCMARK® Vantage HDD Suite Score60,000
Idle Power Consumption0.4 W
Read Power Consumption (TYP)1.2 W
Write Power Consumption (TYP)1.8 W
Total Bytes Written (TBW)121TB, 3 DWPD
Operating Temperature 0°C ~ 70°C
Storage Temperature-40°C ~ 85°C
Vibration Operating2.17G peak (7-800Hz)
Vibration Non-Operating20G peak (10-2000Hz)
Life expectancy (MTBF)1,000,000 Hrs
Dimensions (mm)50.88 x 30
Dimentions (in)2.000 x 1.181
Weight (g/lb)6.86/0.015

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SMS200S3/30G

Weight: 0.5 lb

Warranty: 2 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

2 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
