Kingston SMS200S3/60G 60GB mSATA SSD

- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 3 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
Capacity: | 60GB |
Speed: | Solid State |
Interface Types: | SATA 1.8in Mini-SATA / MSATA |
Form Factor: | 1.8" x 3.5mm Ultrathin Caseless |
SSD Endurance DWPD: | Enterprise Read Intensive / RI |
Electrical Interface: | SATA 600 - 6Gbps |
Description

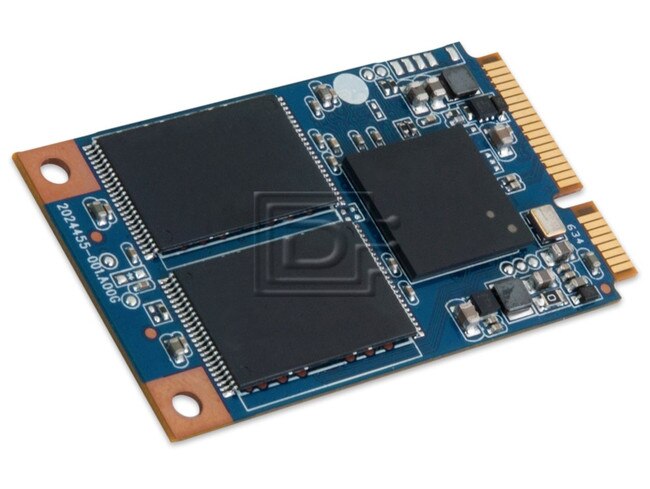

Kingston SMS200S3/60G 60GB 1.8in 6Gbps mS200 SED mSATA SSD - Brand New
Kingston SMS200S3/60G 60GB 1.8" 6.0 Gbps mS200 Self-Encrypting, Mini SATA Solid State Disk Drive - Brand New
Save space, time and money.
Kingston’s SSDNow mS200 mSATA solid-state drive offers a cost-effective performance boost with a dual-drive option that allows room for adding high-capacity storage. Ideal for system builders, OEMs and enthusiasts, mS200’s ruggedly cool, minuscule form factor is eight times smaller than a traditional 2.5-inch hard drive, making it perfect for notebooks, tablets and Ultrabooks. SSDNow ms200 has a caseless, PCB-only design with no moving parts and is backed by legendary Kingston® reliability
Features
- mSata interface – Fully compliant with industry standard, easy to fit, guaranteed to work
- NAND Flash memory based – Shock resistant with lower power consumption
- Supports Intel’s SRT – Combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
- Supports S.M.A.R.T. – Monitors the status of your drive
- Supports TRIM – Maintains maximum performance of compatible operating systems
- Encryption - AES 128bit
Compatibility
This drive is compatible with any server that accepts 1.8"x3.5mm (Thin / Caseless) SATA drive
Specifications
Drive Model | SMS200S3/60G |
---|---|
Capacity | 60GB |
Interface | SATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s) |
Form Factor | mSATA |
Encryption | AES 128bit |
Maximum 4K Read/Write | Up to 86,000/Up to 79,000 IOPS |
Random 4k Read/Write | Up to 14,000/Up to 77,000 IOPS |
Sequential Read/Write | 550MB/s / 520MB/s |
PCMARK® Vantage HDD Suite Score | 60,000 |
Idle Power Consumption | 0.4 W |
Read Power Consumption (TYP) | 1.2 W |
Write Power Consumption (TYP) | 1.8 W |
Total Bytes Written (TBW) | 218TB, 3 DWPD |
Operating Temperature | 0°C ~ 70°C |
Storage Temperature | -40°C ~ 85°C |
Vibration Operating | 2.17G peak (7-800Hz) |
Vibration Non-Operating | 20G peak (10-2000Hz) |
Life expectancy (MTBF) | 1,000,000 Hrs |
Dimensions (mm) | 50.88 x 30 |
Dimentions (in) | 2.000 x 1.181 |
Weight (g/lb) | 6.86/0.015 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SMS200S3/60G
Weight: 0.5 lb
Warranty: 3 Year Manufacturer
Condition
Brand New
Warranty
3 Year Manufacturer Warranty
