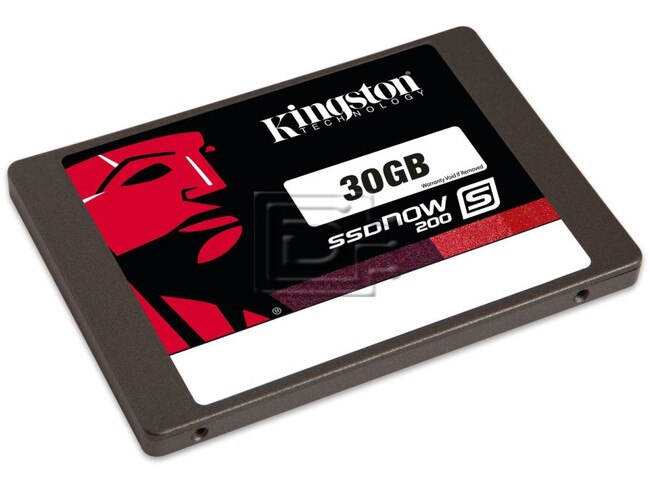

Kingston SS200S3/30G 30GB SATA SSD


DiscTech Item #: KIN-SS200S3-30G-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 30GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Sector Size: 512 / 512e

Sustained Throughput: Up to 500

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Consumer / Value

Kingston SS200S3/30G 30GB 2.5in 6Gbps s200 SATA SSD - Brand New

Kingston SS200S3/30G 30GB 2.5" 6.0 Gbps s200 Serial Advanced Technology Attachment Solid State Disk Drive - Brand New

Increase speed and reliability in non-PC applications

Kingston’s SSDNow S200 increases speeds and reliability in non-PC applications. This commercial-grade, low-capacity solid-state drive is available is cased and caseless form factors. Bootable and silent with no moving parts, it runs cool. It’s perfect for design-in for non-traditional PC applications such as toll booths, digital kiosks and signage and ATMs, as an alternative to compact Flash or hard drive-based solutions. SSDNow S200 is cost-efficient and available globally. It’as backed by legendary Kingston® reliability.


  • Low Capacity – 30GB of storage for non-traditional applications
  • Case Options – Available in a case or caseless form factor
  • Faster – Boots system and applications faster than a hard drive for compact Flash solutions
  • SATA Interface –Easy to integrate into new or existing designs
  • Silent – Runs silent and cool
  • Reliable – With no moving parts, solid-state drives are less likely to fail than standard hard drives


This drive is compatible with any server that accepts 2.5" x 9mm (Fits in ALL laptops) SATA drive.

Drive ModelSS200S3/30G
InterfaceSATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s)
Form Factor2.5”
Maximum Random 4K Read/WriteUp to 60,000/24,000 IOPS
Sequential ReadsSATA Rev. 3.0 Up to: 500MB/s
Sequential WritesSATA Rev. 3.0 Up to: 100MB/s
PCMARK® Vantage HDD Suite Score56,000
Idle Power Consumption (MAX)0.176 W
Read Power Consumption (MAX)1.03 W
Write Power Consumption (MAX)1.59 W
Total Bytes Written (TBW)22TB
Operating Temperature 0°C ~ 70°C
Storage Temperature-40°C ~ 85°C
Vibration Operating2.17G peak (7-800Hz)
Vibration Non-Operating20G peak (10-2000Hz)
Life expectancy (MTBF)1,000,000 Hrs
Dimensions (mm)69.8 x 100.1 x 9.5
Dimentions (in)2.748 x 3.941 x 0.374
Weight (g/lb)86.5/0.191

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SS200S3/30G

Weight: 1.5 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
