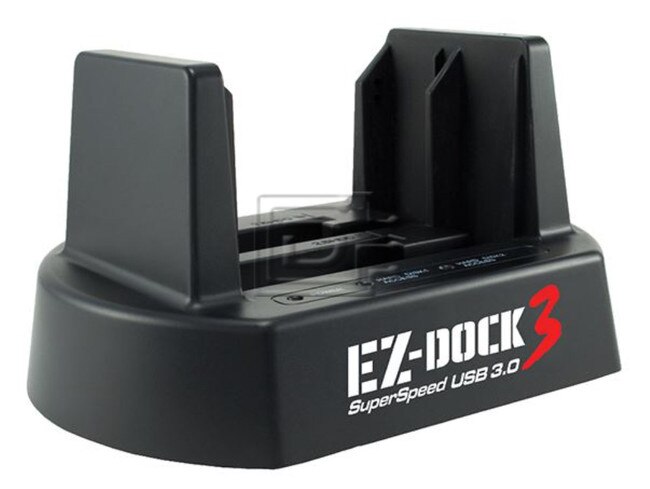

Kingwin EZD-2537U3 USB 3.0 SATA Dual Drive Dock

Kingwin Part #/MPN: EZD-2537U3

DiscTech Item #: KWI-EZD-2537U3-BN-OE


Interface Types: SATA, USB 2.0, USB 3.0 3.1 3.2

Electrical Interface: USB 3.2 G1x1 - 5Gbps

Kingwin EZD-2537U3 Dual Bay 2.5in and 3.5in SATA Hard Drive Docking Station with USB 3.0 - Duplicator - Brand New

Kingwin EZD-2537U3 Dual Bay 2.5" and 3.5" Serial ATA Hard Drive Docking Station with USB 3.0 - Stand Alone Duplicator - Brand New

EZD-2537U3 – Is a SuperSpeed USB 3.0 Dual-Bay 2.5”/3.5” SATA Hard Drive Docking Station which also can work as a stand-alone drive duplicator. SuperSpeed USB 3.0 interface has data transfer bandwidth of up to 5Gbps offering 10X faster performance over Hi-Speed USB 2.0 (480Mbps) while still retaining backward compatibility and interoperability with all PC USB ports and devices. SuperSpeed USB 3.0 also works well with latest Windows 8 and Mac OSX.

The EZ-Dock 3 top loading bay lets you easily insert one or two 2.5” or 3.5” SATA Hard Drives or Solid-State Drives (SSD). Each bay can support drives with up to 4TB capacity. You can also mix and match any HDD or SDD and any disk size at the same time. The EZ-Dock3 also has a Power and two Drive LED status indicators.

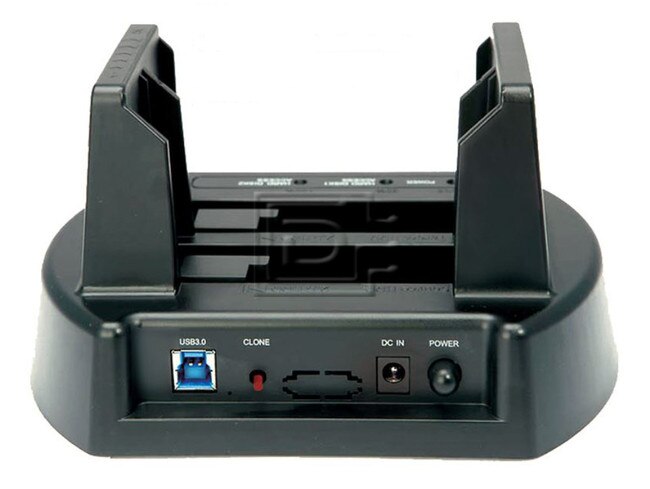

Stand-alone disk cloning – A feature that allows you to duplicate or clone the entire drive to another faster or larger drive without having to connect to a PC. Simply plug the source drive to Bay-1 and the new drive to Bay-2, turn on the EZ-Dock3 power and simply push the clone button to begin. The result is two identical drives containing the same files, boot sector, partition table and file system format. If the destination drive is larger than the source drive the remaining partition of the drive that was not used during the cloning process will be converted as unallocated partition. You can still repartition and format that partition as another extra logical drive.

The EZ-Dock – An award-winning choice for USB 3.0 dual-bay SATA drive docking solution that is sleek in design, portable, and packs a lot of features, performance, expandability, and great value for your money.


  • Model : EZD-2537U3
  • Dual-Bay 2.5”/3.5” SATA HDD & SSD Docking Station
  • SuperSpeed USB 3.0 interface offers 10X faster performance (up to 5Gbps)
  • Standalone Drive Duplicator Dock (no need for PC connection)
  • Supports 2.5” and 3.5” SATA I/II/III Drives
  • Supports up to 4TB SATA HDD
  • Screw-less and Easy-to-Plug Top-Loading Design (Hot-Swap Capability)
  • Vertical HDD insertion allows faster heat dissipation and cooling solution
  • LED indicator for HDD Access and Power status
  • Backward compatible with PC USB 2.0 ports (USB 3.0 cable compatible with USB 2.0 ports)
  • Fully compatible with Windows 8 and Mac OS X
  • RoHS Compliant
  • Includes EZ-Dock3, USB 3.0 cable, power adapter, and User Manual (HDD not included)


This Docking Station is compatible with any 2.5" or 3.5" SATA Hard Drive

Product TypeSuperSpeed USB 3.0 Dual-Bay SATA Drive Docking Station
PC InterfaceUSB 3.0 / USB 2.0 (USB 1.1 not recommended)
HDD Interface2.5”/3.5” SATA I/II/III Hard Disk Drive (HDD) or Solid-State Drive (SSD)
Drive InstallationTop-Loading Bay (hot-swap and screw-less)
Max. Transfer RateUSB 3.0 (up to 5Gbps)
SATA III (6Gbps)
Clone TypeOne Click Cloning
HDD CapacityUp to 4TB per drive (total 8TB maximum) (6TB tested 2015)
Supported OSWindows 8/8.1, 7, Server 2008, Vista, Server 2003, XP, 2000
Mac OSX Mavericks (10.9), Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6), Leopard (10.5)
Linux Any Distro

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
