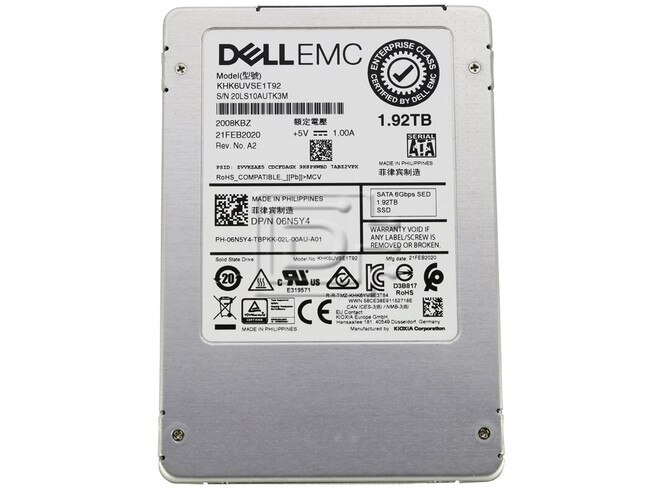

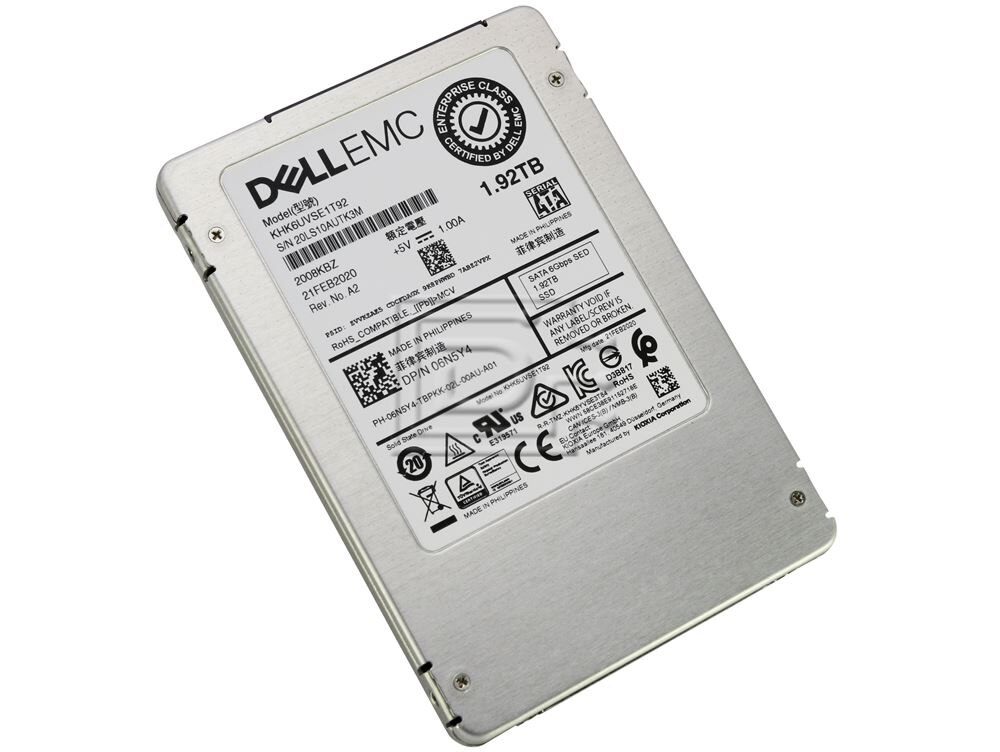

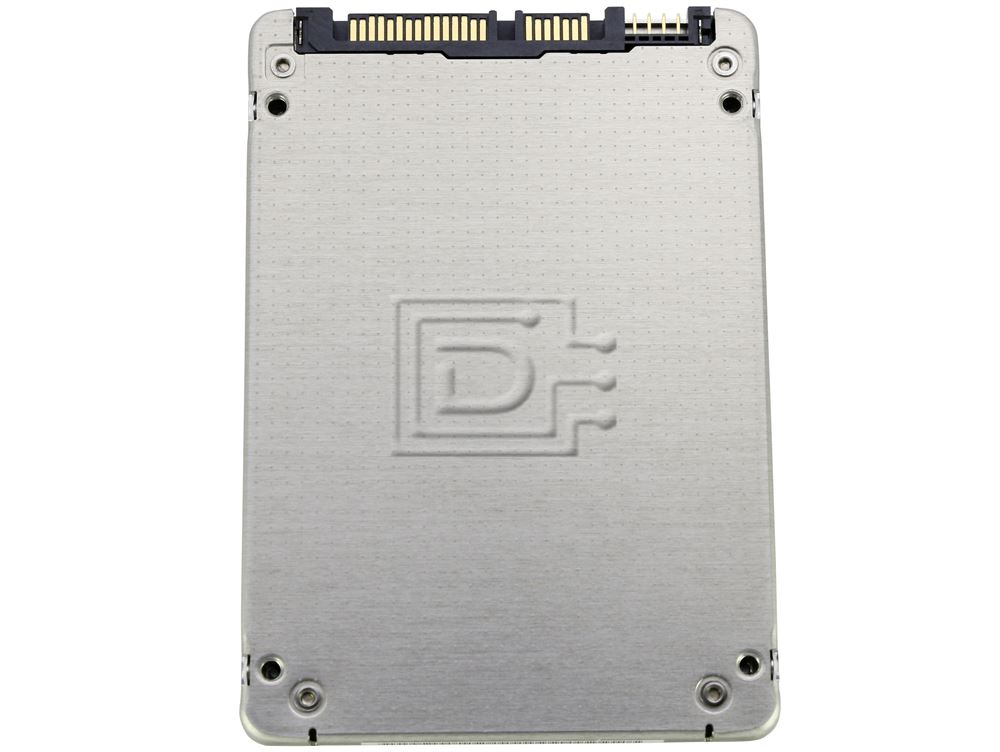

Kioxia KHK6UVSE1T92 / Dell 6N5Y4 PowerEdge 1.92TB 2.5" SFF Mixed Use 6Gbps SED SATA SSD

HGST KHK6UVSE1T92 6N5Y4 06N5Y4 SATA Solid State Drive Image 1 imageHGST KHK6UVSE1T92 6N5Y4 06N5Y4 SATA Solid State Drive Image 2 imageHGST KHK6UVSE1T92 6N5Y4 06N5Y4 SATA Solid State Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$1,299.00

Capacity:1.92TB
Speed:Solid State
Interface Types:SATA
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Mixed Use / MU
Electrical Interface:SATA 600 - 6Gbps
Click to see more 1.92TB SATA Solid State Drives

Description

Kioxia KHK6UVSE1T92 / Dell 6N5Y4 PowerEdge 1.92TB 2.5" SFF Mixed Use 6Gbps SED SATA Solid State Drive - Brand New

Kioxia KHK6UVSE1T92 / Dell 6N5Y4 PowerEdge 1.92TB 2.5" SFF Mixed Use 6Gbps SED SATA Solid State Drive - Brand New

DP/N: 06N5Y4 6N5Y4

HK6 Series SATA Solid State Drive

HK6 Series 6Gb/s SATA SSDs provide entry level performance and latency for servers, with encryption options.

All KIOXIA SSDs are VMware vSAN™ certified for your virtualized data center environments.


Compatibility

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SATA drives.

Specifications

Kioxia HK6 Series
Model NumberKHK6UVSE1T92
Alt Model Number6N5Y4
Data Security Mode
  •
InterfaceSATA 6Gb/s 2.5-inch
Configuration
InterfaceSATA 6Gb/s
Capacity1.92TB
Form Factor2.5-inch
Endurance
  • Drive Writes per Day (DW/D)



    •
  • Terabytes Written (TBW, JESD219 workload)

  • 3 DWPD / 10512 TBW
Sustained Performance
Sequential Read (max MB/s, 128KiB)550
Sequential Write (max MB/s, 128KiB)530
Random Read (max IOPS, 4KiB, QD32)84K
Random Write (max IOPS, 4KiB, QD32)55K
Mixed Random Read/Write (max IOPS)
  • 70%R/30%W, 4KiB, QD32
  • 90%R/10%W, 4KiB, QD32

  •
Latency (ms, 4KiB Random Read QD1, typical)
Reliability
Error Rate in bits read
MTBF
Annual failure rate (AFR)
Data Retention
Power
Requirement (DC +/- 5%)
Avg Max (W, typical)
Physical
z-height (mm, max)7.0
Dimensions (width x depth, mm)69.85 x 100.2
Wt. (g, max)
  • < 1920GB: 37.4
  • >/= 1920GB: 59.7
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 6N5Y4 06N5Y4

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
