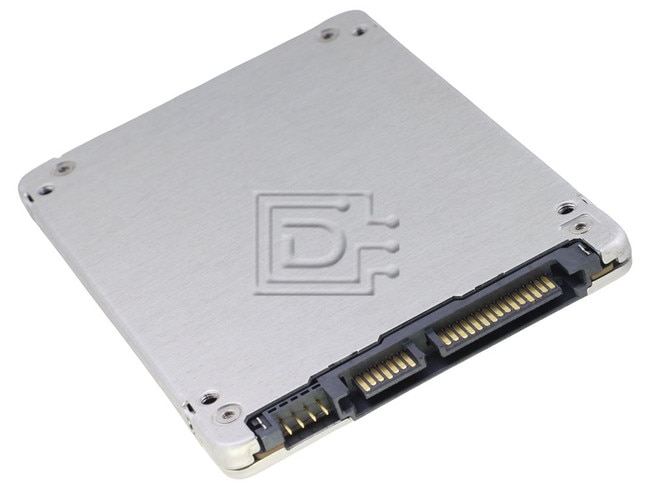

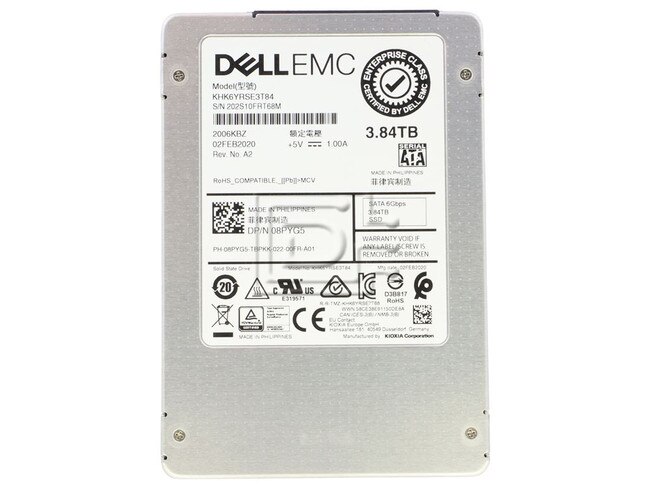

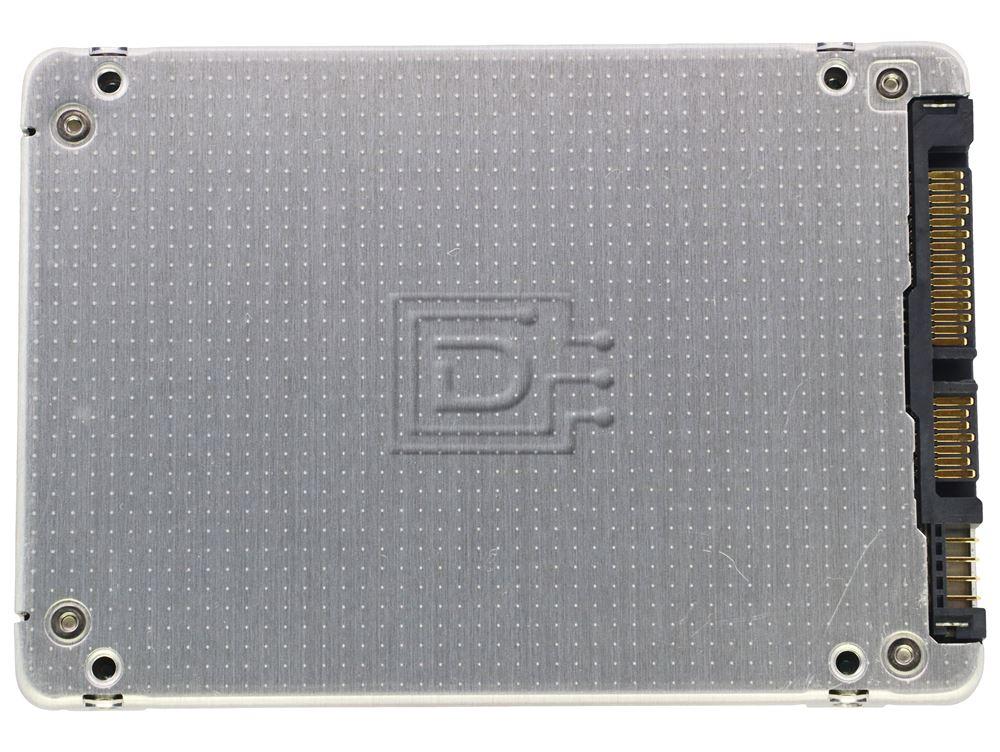

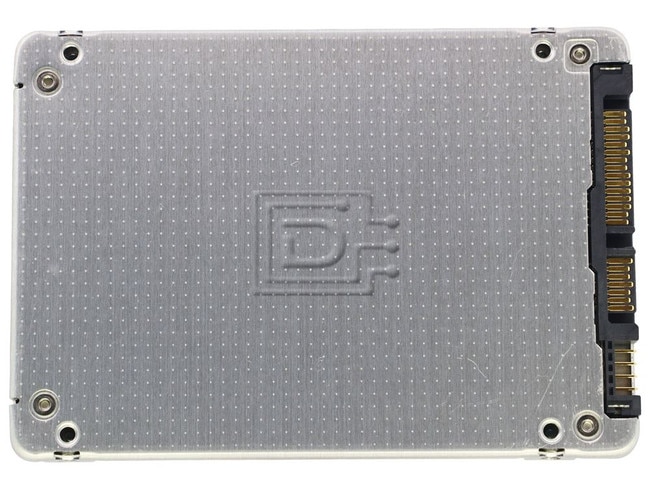

Kioxia KHK6YRSE3T84 Dell 8PYG5 3.84TB 2.5" SFF Read Intensive SATA Solid State Drive

$399.00

Capacity:3.84TB
Speed:Solid State
Interface Types:SATA
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Read Intensive / RI
Electrical Interface:SATA 600 - 6Gbps
Click to see more 3.84TB SATA Solid State Drives

Description

Kioxia KHK6YRSE3T84 Dell 8PYG5 3.84TB SFF Read Intensive SATA Solid State Drive - Brand New

Kioxia KHK6YRSE3T84 Dell 8PYG5 3.84TB 2.5" SFF Read Intensive SATA Solid State Drive - Brand New

HK6 Series SATA Solid State Drive

HK6 Series 6Gb/s SATA SSDs provide entry level performance and latency for servers, with encryption options.

All KIOXIA SSDs are VMware vSAN™ certified for your virtualized data center environments.


Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SATA drives.

Specifications

Kioxia HK6 Series
Model NumberKHK6YRSE3T84
Alt Model Number8PYG5
Configuration
Sustained Performance
Reliability
Power
Physical
Data Security Mode
InterfaceSATA 6Gb/s 2.5-inch
InterfaceSATA 6Gb/s
Capacity3.84TB
Form Factor2.5-inch

Endurance

  • Drive Writes per Day (DW/D)
  • Terabytes Written (TBW, JESD219 workload)
  • 1 DWPD
Sequential Read (max MB/s, 128KiB)550
Sequential Write (max MB/s, 128KiB)530
Random Read (max IOPS, 4KiB, QD32)84K
Random Write (max IOPS, 4KiB, QD32)55K

Mixed Random Read/Write (max IOPS)

  • 70%R/30%W, 4KiB, QD32
  • 90%R/10%W, 4KiB, QD32
Latency (ms, 4KiB Random Read QD1, typical)
Error Rate in bits read
MTBF
Annual failure rate (AFR)
Data Retention
Requirement (DC +/- 5%)
Avg Max (W, typical)
z-height (mm, max)7.0
Dimensions (width x depth, mm)69.85 x 100.2
Wt. (g, max)
  • < 1920GB: 37.4
  • >/= 1920GB: 59.7

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 8PYG5 08PYG5

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
