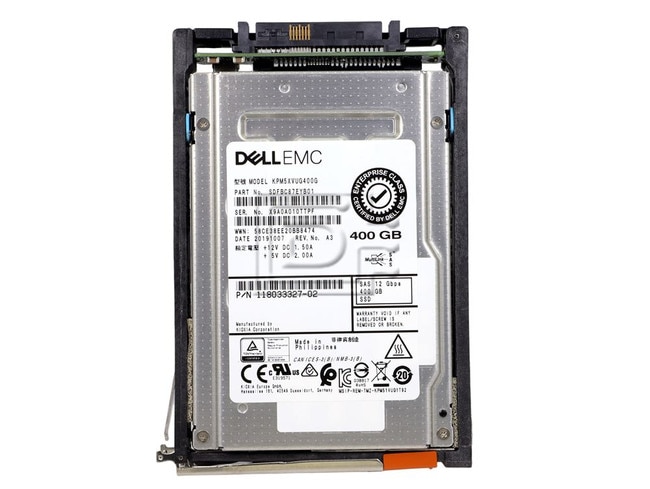

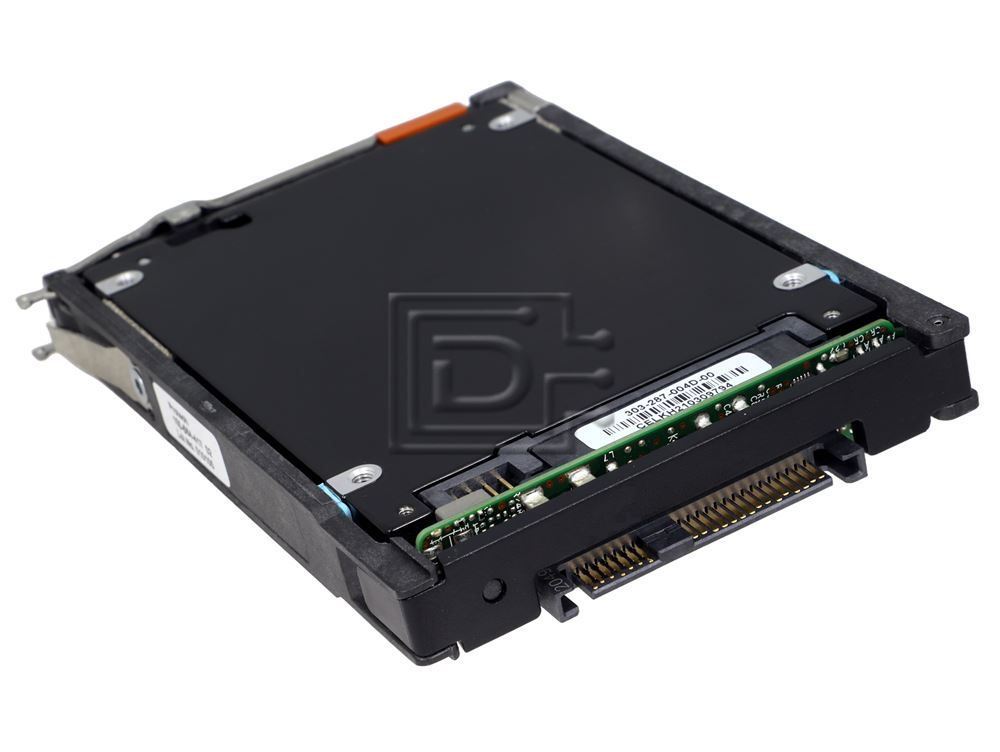

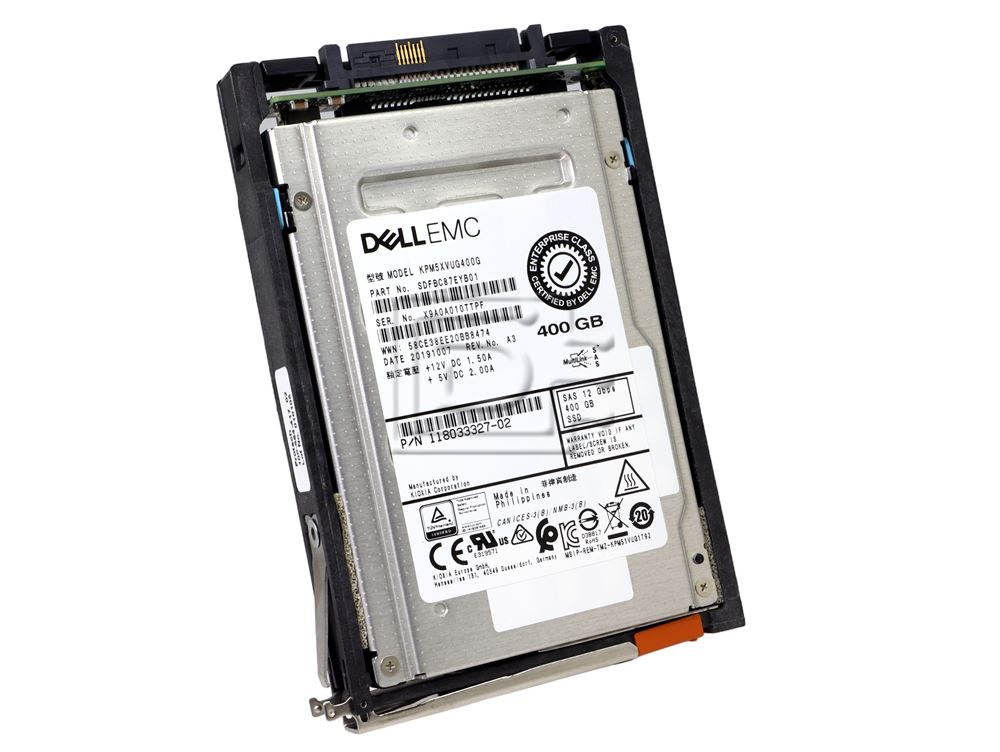

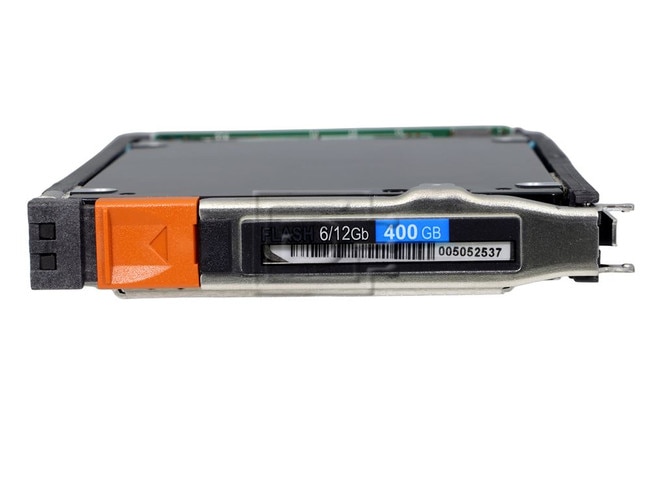

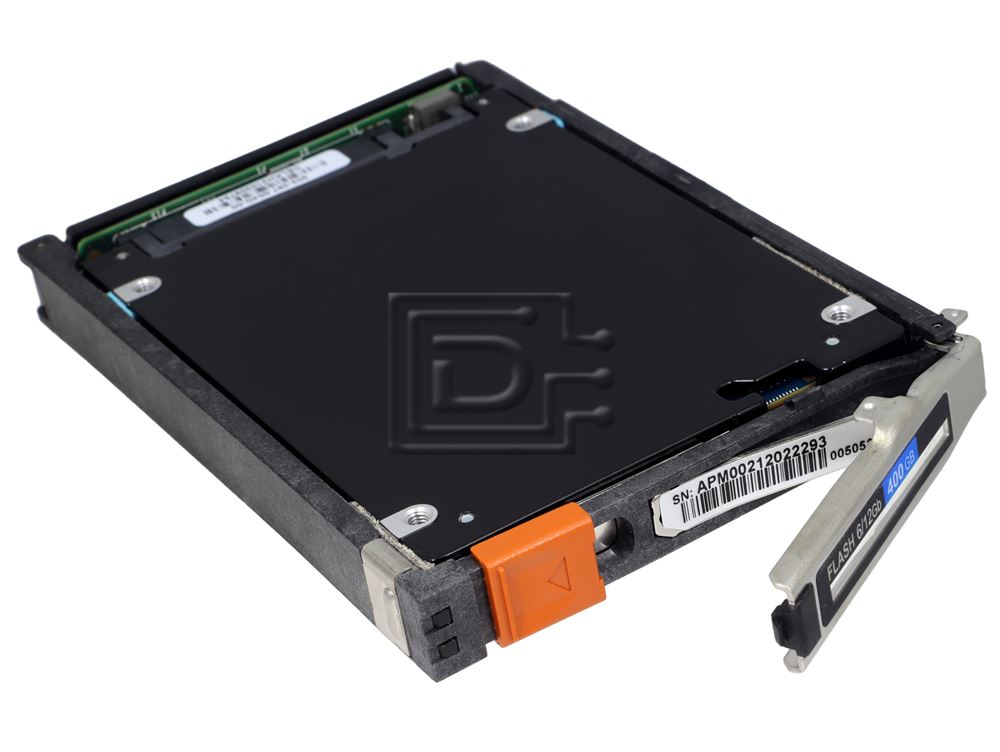

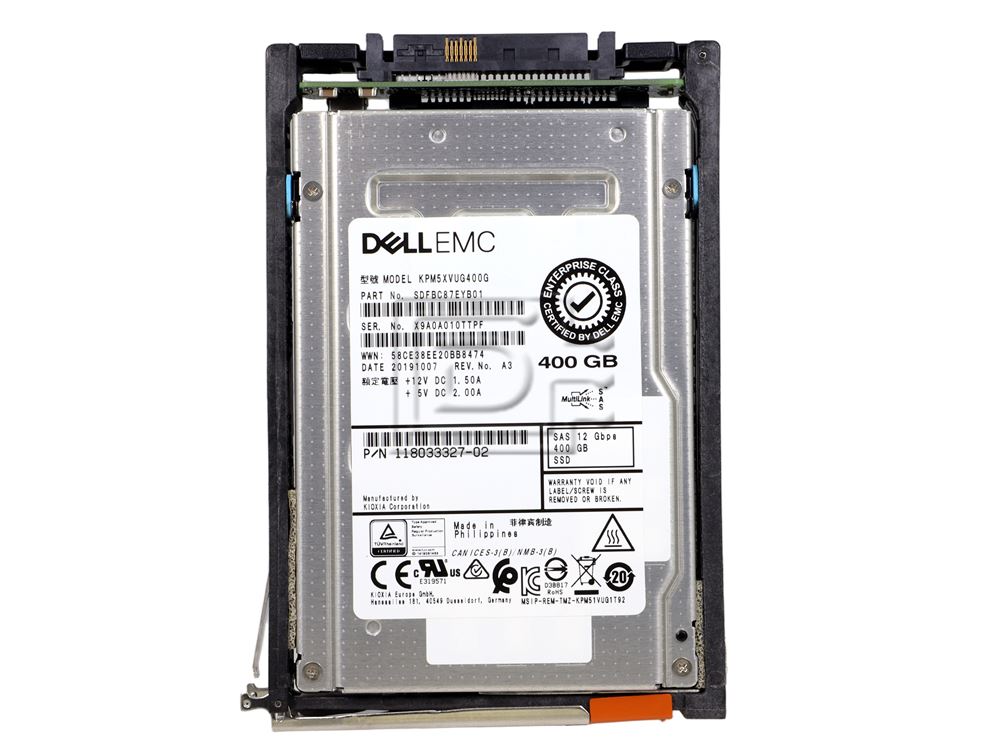

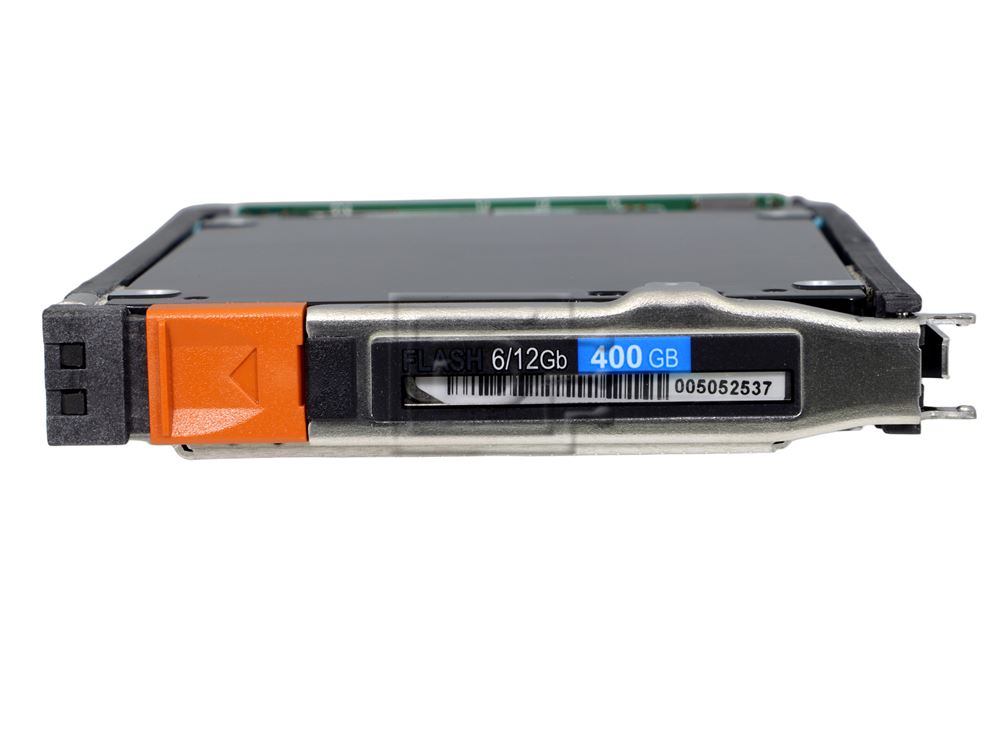

Kioxia PM5-M KPM5XVUG400G / EMC 118033327-02 / 005052537 400GB 2.5inch 12Gbps Mixed Use TLC SAS SSD
- In Stock:12Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 400GB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SAS-3 12Gbps |
Description
Kioxia PM5-M KPM5XVUG400G / EMC 118033327-02 / 005052537 400GB 2.5inch 12Gbps Mixed Use TLC SAS SSD - Refurbished OEM
Kioxia PM5-M KPM5XVUG400G / EMC 118033327-02 / 005052537 400GB 2.5inch 12Gbps Mixed Use TLC SAS SSD - Refurbished OEM
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Basic Specifications | |
| Reliability | |
| Power Requirements | |
| Dimensions | |
| Enviromental | |
| Model Number | KPM5XMUG400G |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH TLC |
| Formatted Capacity | 400GB |
| Sustained 128KiB Sequential Read | 2,100 MB/s |
| Sustained 128KiB Sequential Write | 1,260 MB/s |
| Sustained 4KiB Random Read | 270K IOPS |
| Sustained 4KiB Random Write | 150K IOPS |
| MTTF | 2,500,000 hours |
| DWPD | 3 |
| Supply Voltage | 5 V ±7 % , 12 V ±10 % |
| Power Consumption (Operating) | 5.0W Typ. |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Temperature (Operating) | 0 to 60 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9,800 m/s {1,000 G} (0.5 ms duration) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 118033327-02 005052537
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
Warranty
1 Year DiscTech Warranty
