LSI LSI00297/CVM01 CacheVault BBU Accessory Kit for 9266-4i-8i 9271-8i Series Controller

LSI Logic LSICVM01 LSI00297 BTR-0024LH-LSI00297 L5-25419-04 CVM01 0CVM01 Battery Backup BBU for 9266-4i 9266-8i 9271-4i 9271-8i RAID Controller Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:7
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$119.99

Interface Types:SAS

Description

LSI LSI00297/CVM01 CacheVault BBU Accessory Kit for 9266-4i 9266-8i 9271-4i 9271-8i RAID Controller - Brand New

LSI LSI00297 CacheVault Battery Backup Unit Accessory kit for 9266-4i 9266-8i 9271-4i 9271-8i RAID Controller

Cache Vault technology is designed to temporarily store Cache data of the RAID controller card to NAND Flash in the event of power/system failure, and then restore the data to Cache once the power returns. This offers an effective way to protect the data integrity, which is critical in server, workstation, high-performance computing and storage system environments.

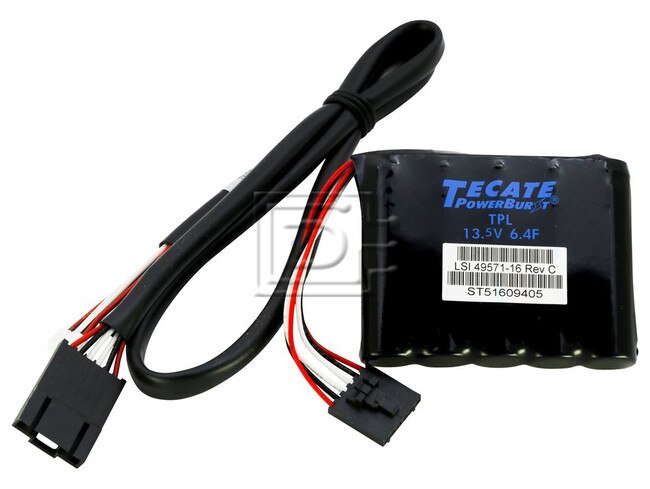

Unlike battery backup units (BBUs) utilizing lithium ion batteries, the CacheVault uses a super-capacitor, which virtually eliminates hardware maintenance costs associated with batteries, lowers total cost of ownership over the life of the controller card and provides more environmentally friendly cache protection, all while maintaining optimal RAID performance.

  • Lower total cost of ownership (TCO) with CacheVault technology by reducing hardware maintenance and disposal issues associated with lithium-ion batteries
  • Battery backup units allow for higher ambient temperatures
  • Provides additional peace of mind for compatible RAID controller cards
  • Enjoy configuration flexibility with many chassis mounting options
  • Receive longer life cache protection
Alternate PNs: BTR-0024LH-LSI00297 L5-25419-04 CVM01 0CVM01

Compatibility:

This CacheVault Accessory Kit is fully compatible with:

9266-4i RAID Controller9266-8i RAID Controller9271-4i RAID Controller9271-8i RAID Controller

Specifications

Specifications
Model NumberLSICVM01
Dimensions2.00"x6.00"x6.00"
Weight1.00 lbs.
Click here to view the manufacturer's item description/brochure

Alternate MPNs: LSI00297 BTR-0024LH-LSI00297 L5-25419-04 CVM01 0CVM01

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
