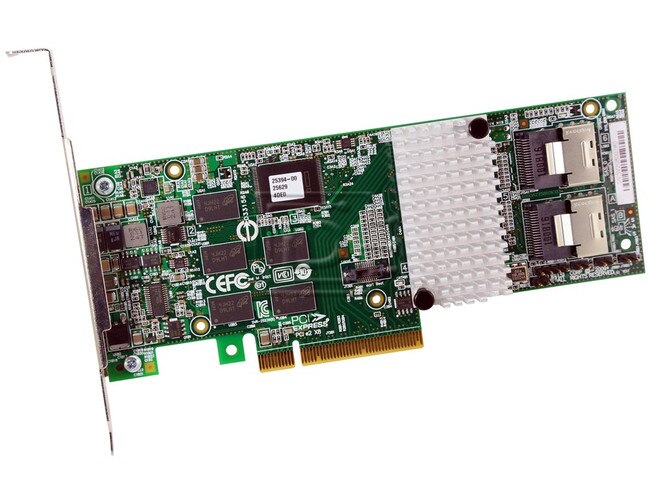

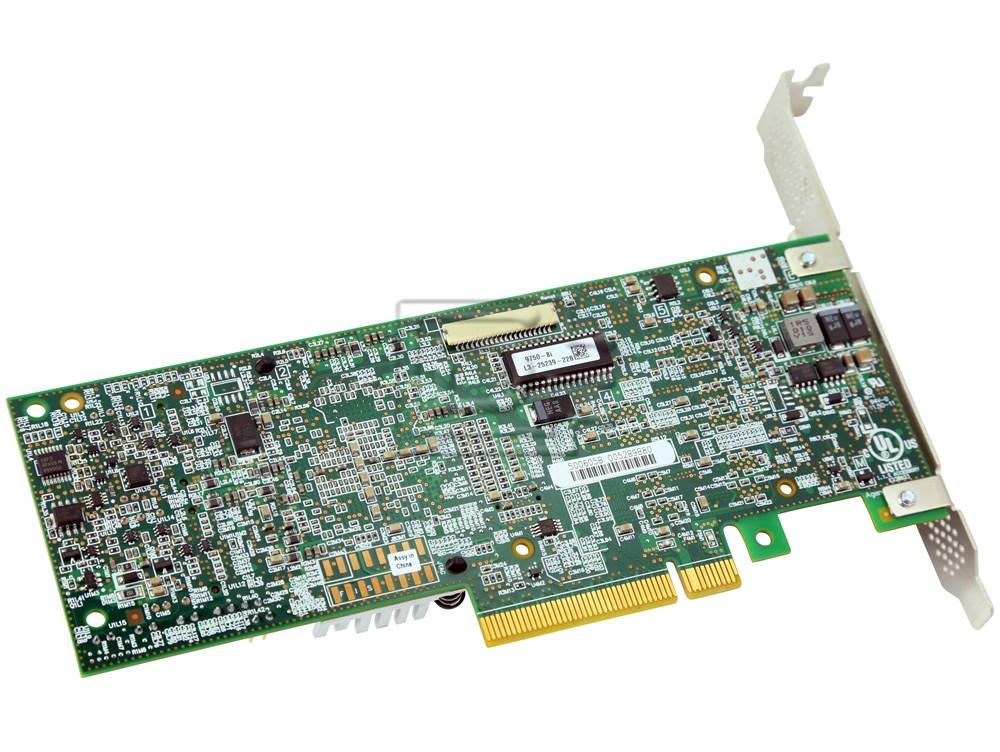

LSI Logic LSI00213 3ware 512MB PCIe SAS SATA RAID Contoller

LSI Logic Part #/MPN: LSI00213

DiscTech Item #: LSI-LSI00213-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SAS Serial Attached SCSI, SATA, PCIe, SFF-8087

Form Factor: Half-Height/Half-Length

Electrical Interface: PCIe - v2.0 - 16GBps

On-Board Cache: 512MB

Voltage: 3.3V

LSI Logic LSI00213 9750-8i 3ware 512MB 8 Port PCIe SAS/SATA 6Gbps RAID Controller - Brand New

LSI Logic LSI00213 9750-8i 3ware 512MB 8 Port PCIe SAS/SATA 6Gbps RAID Controller - Brand New

Alt MPN: 9750-8i

3ware® SAS 9750-8i Eight-Port 6Gb/s PCI Express® SATA+SAS RAID Controller Card

Unprecedented power in multi-stream RAID environments delivers high-performance and reliable data protection.

Expand Your Horizon - LSI 3ware SATA+SAS RAID controllers provide a new level of reliability, availability, and performance to businesses that are facing storage challenges, particularly in sequential I/O intensive and multi-stream environments. This 3ware controller, great for inside-the-box connectivity, employs the latest in LSI RAID-on- Chip (ROC) technology and provides a higher standard of data protection and performance. Offering data transfer rates of up to 6Gb/s per port, the latest generation of 3ware SATA+SAS controllers provide many new features while also ensuring investment protection for existing SATA and SAS implementations. LSI delivers unprecedented power in multi-stream RAID environments where performance, redundancy, and data protection are most important.

6Gb/s SAS Advantage - 6Gb/s SAS is designed for backward compatibility with 3Gb/s SAS as well as with 3Gb/s SATA drives. In addition, 6Gb/s 3ware controllers deliver significant performance improvements in both read and write applications regardless of drive speed. StorSave™ strengthens array performance during peak usage by allowing the controller to use both controller cache and disk cache for RAID operations. Other new features of the 6Gb/s 3ware SATA+SAS controller cards include greater signal integrity using Decision Feedback Equalization, support for more sophisticated SAS topologies using Expander Self-discovery/Self-configuration, and additional safeguards to enhance data protection.

StreamFusion™+ Performance - 3ware’s advanced algorithms allow for optimized reads and writes in multi-stream environments. StreamFusion+ enables higher throughput even in degraded modes to deliver a superior standard of data protection and to boost performance. It is the result of countless hours of engineering aimed at delivering breakthroughs in high-load applications and providing enhanced features and functionality in all environments. Focusing on the latest technology trends and customer requirements, StreamFusion+ firmware reaffirms our commitment to customer success and industry leadership.

Key Features

  • Eight internal 6Gb/s SATA+SAS ports
  • Two Mini-SAS internal connectors (SFF8087)
  • RAID levels 0, 1, 5, 6,10, 50 and Single Disk
  • LSISAS2108 6Gb/s RAID-on-Chip– 800MHz PowerPC®
  • 512MB 800MHz DDRII cache memory
  • Optional battery backup module with StorSave BBU
  • Support for up to 127 SATA or SAS physical devices

Key Advantages

  • PCI Express 2.0 provides faster signaling for high- bandwidth applications
  • Support for 3Gb/s and 6Gb/s, SAS and SATA, HDDs and SSDs
  • StreamFusion+ improves multi-stream read and write performance


This controller card is compatible with any server that includes PCI-E 2.0 slots.

Part NumberLSI00213
Alt Part Number9750-8i
Product3ware SAS 9750-8i
RAID-on-Chip-ControllerLSISAS2108 RAID-on-Chip (ROC)
Cache ProtectionLSIiBBU07, an optional intelligent battery backup module that connects directly to the controller
Raid Management Software3ware® Disk Manager 2 (3DM2™)
Command Line Utility (CLI)
3ware BIOS Manager (3BM)
SNMP support
Physical DimensionsMD2 Low Profile (6.6" x 2.536")
Host Bus Typex8 lane PCI Express 2.0
Cache Memory512MB 800MHz DDR II SDRAM
Internal Ports8
Data Transfer RatesUp to 6Gb/s per port
Devices SupportedUp to 127 SATA and /or SAS devices
Internal Connectors2 Mini-SAS SFF8087 (horizontal)
MTBF1,093,393 hours
Operating TemperatureMaximum ambient: 60°C (44.5 w/LSIiBBU07)
Operating SystemsExtensive support includes Microsoft® Windows Vista®, Windows 7®, Windows Server® 2003/2008, Red Hat Linux®, SuSE Linux®, Fedora Core Linux®, FreeBSD®, and more.
Operating Voltage+3.3V,
Regulatory CertificationsEN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9750-8i

Weight: 2 lb

Warranty: 1 Year DiscTech

Brand New
